CTT and WR Options-Specification
24x58124678 Options Service

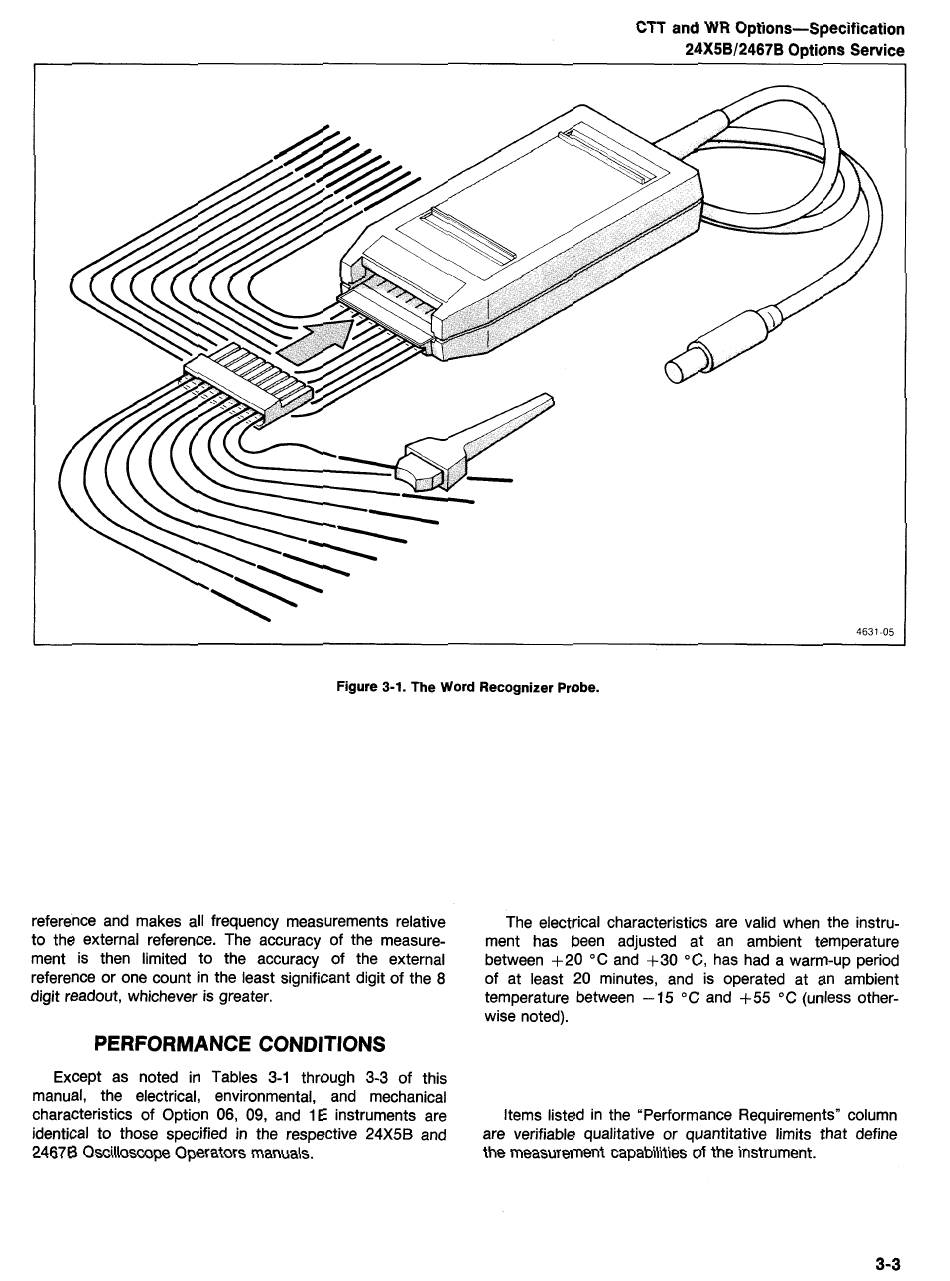

Figure 3-1. The Word Recognizer Probe.
reference and makes all frequency measurements relative
to the external reference. The accuracy of the measure-
ment is then limited to the accuracy of the external
reference or one count in the least significant digit of the 8
digit readout, whichever is greater.
PERFORMANCE CONDITIONS
Except as noted in Tables 3-1 through 3-3 of this
manual, the electrical, environmental, and mechanical
characteristics of Option 06, 09, and 1 E instruments are
identical to those specified in the respective 24X5B and
24678 Oscilloscope Operators manuals.
The electrical characteristics are valid when the instru-
ment has been adjusted at an ambient temperature
between +20
"C
and +30
"C,
has had a warm-up period
of at least 20 minutes, and is operated at an ambient
temperature between
-15
OC
and f55
O C
(unless other-
wise noted).
Items listed in the "Performance Requirementsn column
are verifiable qualitative or quantitative limits that define
the measurement capabilities of the instrument.
