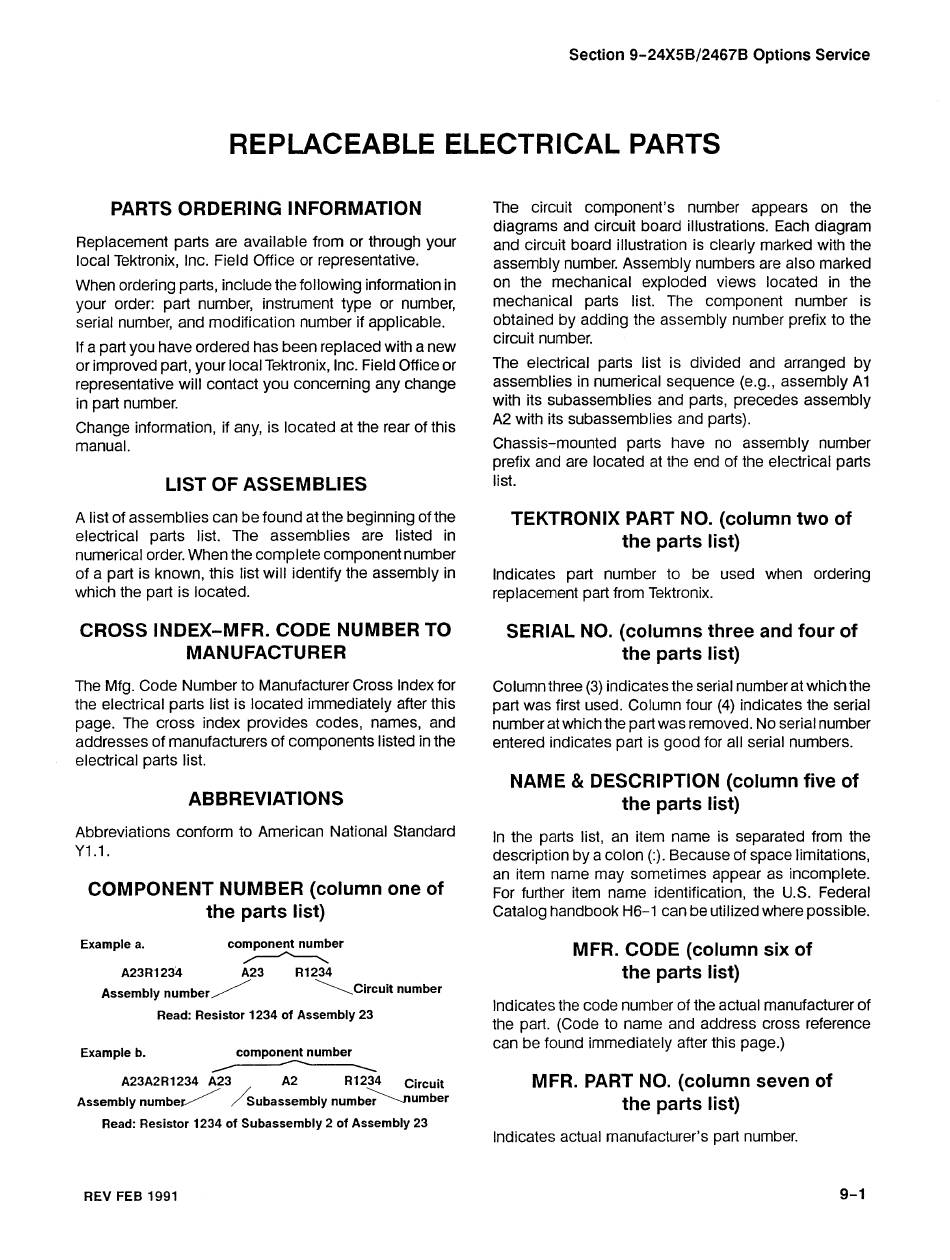

Tektronix Option 10 Service Manual page 273

Section 9-24X5BJ2467B Options Service
REPLACEABLE ELECTRICAL PARTS
PARTS ORDERING INFORMATION
Replacement parts are available from or through your
local Tektronix, Inc. Field Office or representative.
When ordering parts, include the following information in
your order: part number, instrument type or number,
serial number, and modification number if applicable.
If a part you have ordered has been replaced with a new
or improved part, your local Tektronix, Inc. Field Office or
representative will contact you concerning any change
in part number.
Change information, if any, is located at the rear of this
manual.
LIST OF ASSEMBLIES
A list of assemblies can be found at the beginning of the
electrical parts list. The assemblies are listed in
numerical order. When the complete component number
of a part is known, this list will identify the assembly in
which the part is located.
CROSS INDEX-MFR. CODE NUMBER TO
MANUFACTURER
The Mfg. Code Number to Manufacturer Cross Index for
the electrical parts list is located immediately after this
page. The cross index provides codes, names, and
addresses of manufacturers of components listed in the
electrical parts list.
ABBREVIATIONS
Abbreviations conform to American National Standard
Y1 . I .
COMPONENT NUMBER (column one of
the parts list)
Example a. component number
n
A23R1234 A23 R1234
Assembly number/ \circuit number
Read: Resistor 1234 of Assembly 23
Example b. component number
-
A23A2 R 1 234 A23 A2 R1234 Circuit
Assembly numbe/ /~ubassembl~ n u m b e k u m b e r
Read: Resistor 1234 of Subassembly 2 of Assembly 23
The circuit component's number appears on the
diagrams and circuit board illustrations. Each diagram
and circuit board illustration is clearly marked with the
assembly number. Assembly numbers are also marked
on the mechanical exploded views located in the
mechanical parts list. The component number is
obtained by adding the assembly number prefix to the
circuit number.
The electrical parts list is divided and arranged by
assemblies in numerical sequence (e.g., assembly A1
with its subassemblies and parts, precedes assembly
A2 with its subassemblies and parts).
Chassis-mounted parts have no assembly number
prefix and are located at the end of the electrical parts
list.
TEKTRONIX PART NO. (column two of
the parts list)
lndicates part number to be used when ordering
replacement part from Tektronix.
SERIAL NO. (columns three and four of
the parts list)
Column three
(3)
indicates the serial number at which the
part was first used. Column four
(4)
indicates the serial
number at which the part was removed. No serial number
entered indicates part is good for all serial numbers.
NAME & DESCRIPTION (column five of
the parts list)
In the parts list, an item name is separated from the
description by a colon
(:).
Because of space limitations,
an item name may sometimes appear as incomplete.
For further item name identification, the U.S. Federal
Catalog handbook H6-1 can be utilized where possible.
MFR. CODE (column six of
the parts list)
lndicates the code number of the actual manufacturer of
the part. (Code to name and address cross reference
can be found immediately after this page.)
MFR. PART NO. (column seven of
the parts list)
REV FEB 1991
lndicates actual manufacturer's part number.
