CHAINSAW
CAUTION
Always take care when handling the chain as it will be sharp.
Wear the appropriate Personal Protective Equipment.

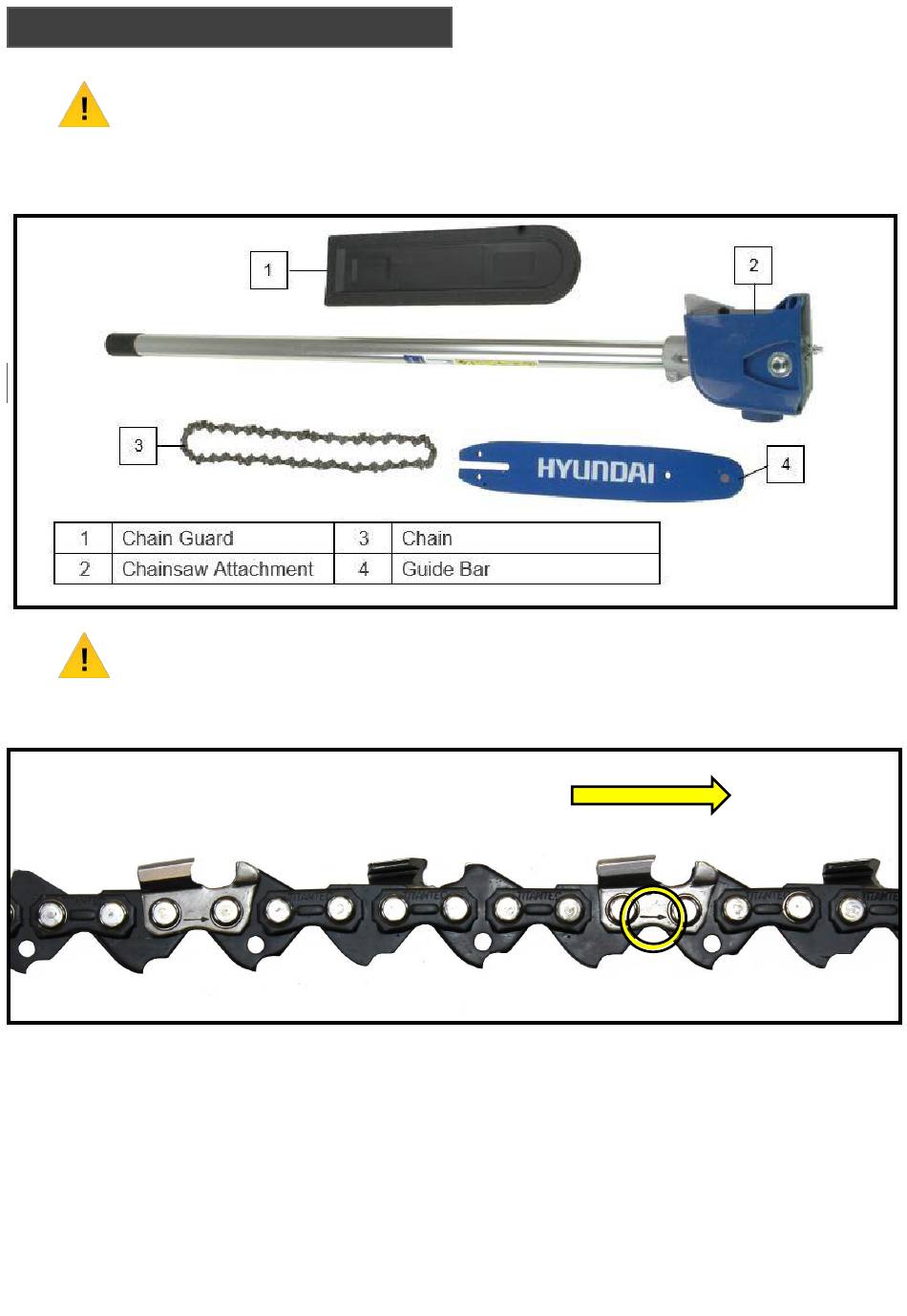

Parts Required
CHAINSAW
NOTE
The chain must be installed in the correct direction of travel.
This will be indicated by an arrow on the chain.
3.33
Using the spanner provided, undo the chain sprocket cover nut.
3.34
Remove the chain sprocket cover to reveal the chain sprocket.
3.35
Loop the chain around the chain bar so it sits in the groove on the chain bar.
NOTE: check the direction of chain travel.
17
