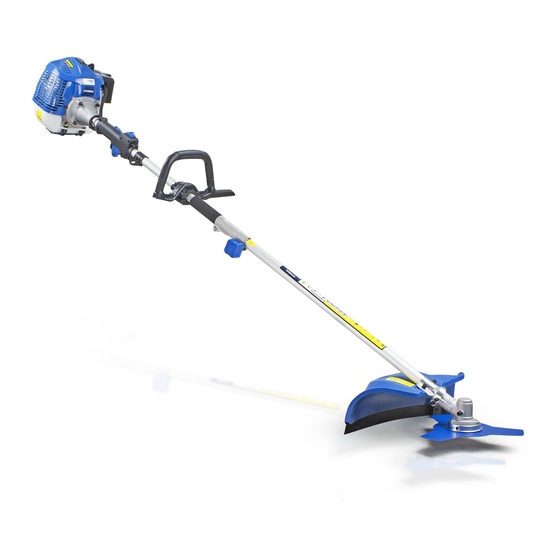

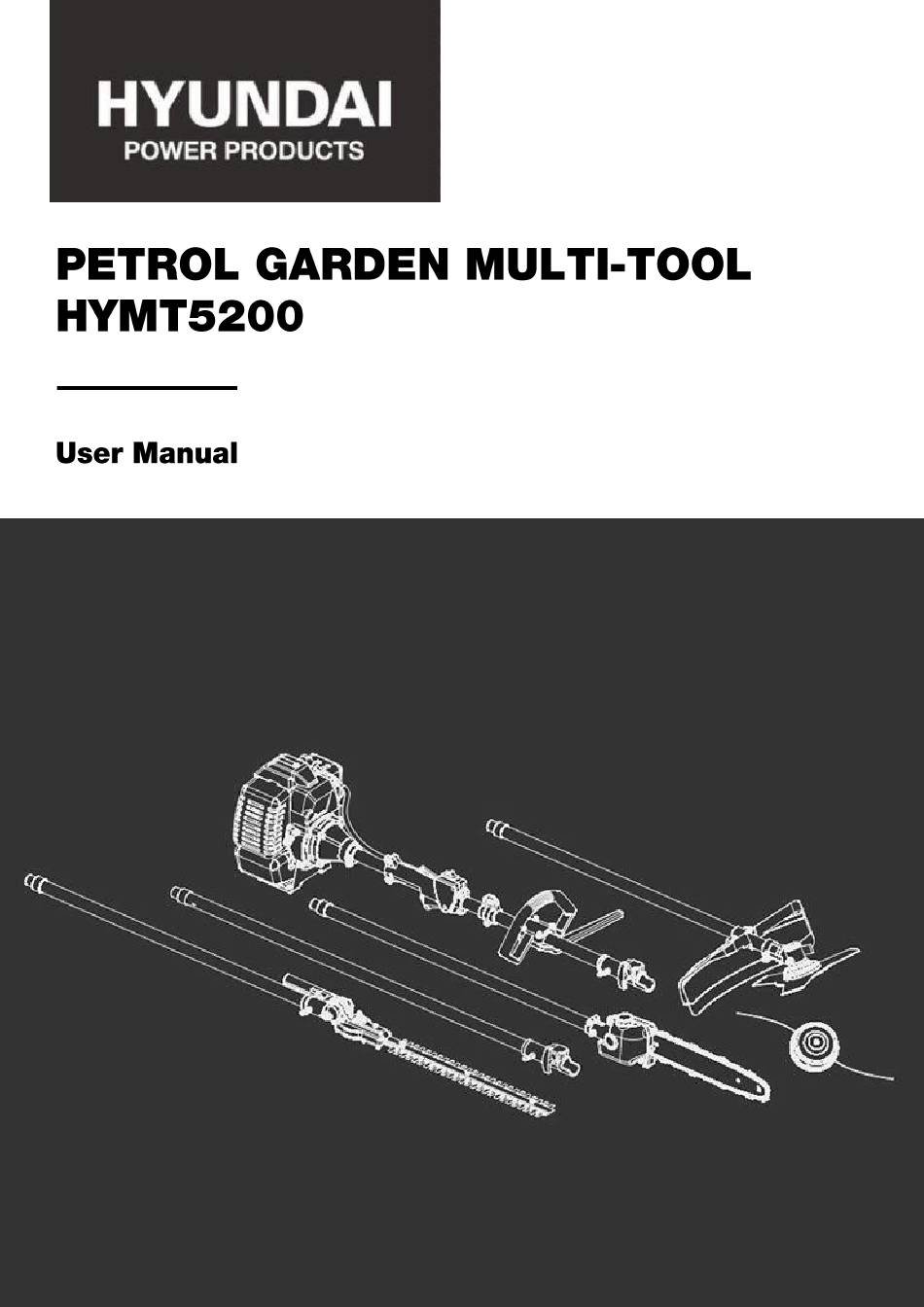

Hyundai HYMT5200 User Manual

Petrol garden multitool
Hide thumbs
Table of Contents

Advertisement

Quick Links

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYMT5200 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai HYMT5200

Summary of Contents for Hyundai HYMT5200

  • Page 2: Table Of Contents

    INDEX CONTENTS PAGE NO.S SAFETY 3 - 8 PART LOCATIONS ASSEMBLY 10 - 21 STARTING PROCEDURE 22 - 23 STOPPING PROCEDURE USING THE MACHINE 24 - 29 MAINTENANCE 30 - 35 STORAGE SPECIFICATION 23 - 28 TROUBLE SHOOTING DECLARATION OF CONFORMITY RECYCLING AND PRODUCT DISPOSAL CONTACT DETAILS WARRANTY...

  • Page 3: Safety

    1. SAFETY General Safety Notes. The operator of the machine is responsible for, and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Keep the manual safe and pass it on if the machine is loaned or sold to another user.
  • Page 4 1.10 Carbon Monoxide (where applicable). 1.11 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.12 The symptoms of carbon monoxide poisoning can include but are not limited to the following;...
  • Page 5 1.20 General Fuel Safety (where applicable). CAUTION ALL FUELS ARE FLAMABLE Fire Hazard – keep fuel away from all sources of ignition for example heaters. 1.21 Lamps, sparks from grinding or welding. 1.22 DO NOT carry out hot work on tanks that have contained fuel. 1.23 ALWAYS keep the work area tidy.
  • Page 6 1.46 All trailing cables should be routed so as not to cause any kind of trip hazard. 1.47 NEVER work on or near electricity with wet hands, wet clothing and wet gloves. 1.50 Batteries (where present). 1.51 Batteries present a risk if they become damaged by the possible leaking of electrolyte.
  • Page 7 recommended to observe the condition of your hands and fingers. Seek medical attention immediately if any of the above symptoms should occur. 1.70 Noise (where applicable). 1.71 The operating noise of the machine can damage your hearing. Wear hearing protection such as earplugs or ear defenders to protect your hearing. Long-term and regular users are advised to have hearing checked regularly.
  • Page 8 1.92 NEVER allow children or anyone unable to fully understand the directions given in this manual to operate this product. 1.93 Make sure you keep this manual handy so you may refer to it whenever questions arise and ensure you pass this manual on if the machine is loaned or sold. 1.94 Correct Personal Protective Equipment (PPE) MUST be worn at all times when operating or repairing this machine.

  • Page 9: Part Locations

    2. PART LOCATIONS 3 Tooth Brush Cutter Blade Grass Trimmer Line Face Mask Tool Kit Full Harness Grass Trimmer Attachment 2 Stroke Mixing Bottle Chainsaw Attachment Ear Defenders Extension Pole 8 Tooth Brush Cutter Blade Hedge Trimmer Attachment Gloves Power Unit...

  • Page 10: Assembly

    3. ASSEMBLY CAUTION This machine produces carbon monoxide, a poisonous & odourless gas that can cause death or serious injury. Always handle with extreme care in a well-ventilated area. ALWAYS remove the spark plug HT lead cap when assembling or changing parts on the machine.

  • Page 11: Assembly

    Place the upper handle on top of the lower handle ensuring the tab on the upper handle lines up with the groove on the rubber sleeve. Loosely insert the 4 allen bolts through the upper handle into the lower handle. Move the handle assembly up and down the shaft until you find a comfortable working position, then fully tighten all 4 bolts.
  • Page 12 GRASS TRIMMER / BRUSH CUTTER Parts Required Drive Head Assembly Central Nut Drive Washer Large Domed Washer Threaded Drive Shaft Small Domed Washer...
  • Page 13 GRASS TRIMMER NOTE The threaded shaft on the trimmer/brush cutter head is a left handed thread. Attach the trimmer guard to the mounting point on the lower shaft using the 2 allen screws provided. Align the hole on the black outer collar with the hole on the main drive shaft (highlighted) by turning the shaft until they line up.6 Insert the allen key through both holes, locking the drive shaft in place.
  • Page 14 3.12 While holding the allen key in place to lock the shaft, screw the grass trimmer head on to the threaded shaft until tight. Then remove the allen key. 3.13 Remove the protective cover from the trimmer guard blade. 3.14 To remove the grass trimmer head, follow the procedure in reverse.
  • Page 15 BRUSH CUTTER 3.19 Attach the trimmer guard to the mounting point on the lower shaft using the 2 allen screws provided. 3.20 Align the hole on the black outer collar with the hole on the main drive shaft (highlighted) by turning the shaft until they line up.6 3.21 Insert the allen key through both holes, locking the drive shaft in place.
  • Page 16 3.28 Screw the central nut back on securely using the tool provided. Ensure you remove the allen key. 3.29 To remove the blade, follow the same procedure in reverse. HEDGE TRIMMER NOTE The hedge trimmer attachment requires no assembly. 3.30 To adjust the cutting angle, lift the lock lever with your finger and hold.
  • Page 17 CHAINSAW CAUTION Always take care when handling the chain as it will be sharp. Wear the appropriate Personal Protective Equipment. Parts Required CHAINSAW NOTE The chain must be installed in the correct direction of travel. This will be indicated by an arrow on the chain. 3.33 Using the spanner provided, undo the chain sprocket cover nut.
  • Page 18 3.36 Loop the rest of the chain around the chain sprocket. Make sure the chain sits in the sprocket teeth and that the chain adjuster pin is in line with the lower hole on the chain bar (highlighted). 3.37 Refit the chain sprocket cover. NOTE: Only tighten finger tight until the chain has been fully adjusted.
  • Page 19 3.42 Remove the chain oil filler cap and fill with chain oil to the max level mark on the tank. DO NOT use any other type of oil. Chain oil has been specifically designed to work with chainsaws. 3.43 Loosen the large hand wheel on the upper shaft. 3.44 Press down on the locking lever.
  • Page 20 3.47 Tighten the hand wheel to lock the attachment in to place. HARNESS 3.48 Place the harness over your head ensuring that the shoulder pads sit comfortably on your shoulders. 3.49 Push the buckle together until you hear it click in to place. 3.50 The harness can be adjusted at multiple point, to adjust the harness pull on the tabs until it fits you comfortably giving an even weight distribution.
  • Page 21 3.54 Before each use of the machine, test the safety quick release mechanism. 3.55 Attach the machine to the harness and ensure it is properly secured or supported to limit damage to the machine. 3.56 Pull up on the red tab and the machine should quickly detach itself from the harness. 3.57 To reattach the harness to the clip, place the clip over the hook on the harness.

  • Page 22: Starting Procedure

    4. STARTING PROCEDURE DANGER ALL FUELS ARE FLAMMABLE Fuel and defuel in a well-ventilated area. Allow the engine to cool completely before refuelling. This machine runs on a 2 Stroke Fuel / Oil Mixture of 40:1 Remove the fuel cap and fill with a 2 stroke fuel/oil mix. DO NOT overfill.

  • Page 23: Stopping Procedure

    Move the ignition switch to the ON (I) position. Place the machine on flat level ground and slowly pull the recoil start handle until you feel resistance. Then pull the recoil handle swiftly until the engine starts. DO NOT allow the recoil handle to snap back, return it to the start position slowly. COLD START: As the engine begins to warm, move the choke lever DOWN to the open position to allow the engine to run smoothly.

  • Page 24: Using The Machine

    6. USING THE MACHINE WARNING Always wear the appropriate Personal Protective Equipment (PPE) when using this machine. Never lean over the rotating cutting head. Rocks or other debris could be thrown into your eyes or face and cause serious injury. WARNING Keep the cutting guard in place at all times.
  • Page 25 GRASS TRIMMING Choose the correct cutting attachment for the job. Always remember that the tip of the line does the cutting. You will achieve better results by not forcing the line in to the cutting area. Allow the unit to trim at its own pace. Hold the unit so the head is off the ground and is tilted about 20 degrees towards the sweep direction.
  • Page 26 6.13 When the line becomes short, lightly tap the head on the ground while running the engine at full throttle. Each time the head is bumped, the line advances about 1” (25mm). 6.14 For better effect, tap the head on bare ground or hard soil. GRASS TRIMMING 6.15 Use the front left side for cutting.
  • Page 27 6.28 Kickback is a result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions. 6.29 Maintain a firm grip on the machine and position your body and arm to allow you to resist kickback forces.
  • Page 28 CHAINSAW 6.43 The saw chain must be lubricated at all times. Before starting work find a clear area, run the chainsaw at medium power and visually check for oil scatter. 6.44 The chain oil flow can be altered by inserting a screwdriver into the adjustment screw on the underside of the chainsaw and adjusting the oil flow accordingly to your work conditions.
  • Page 29 6.54 Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator or pinching the guide bar making it become stuck in the cut. Stop the saw immediately, remove the HT lead and use a wedge to release the guide bar from the pinch point.

  • Page 30: Maintenance

    7. MAINTENANCE CAUTION Always refuel in a well-ventilated area with the engine off and cool. Only qualified persons should attempt to maintain or repair this machine. Only use manufacturer recommended parts.
  • Page 31 AIR FILTER NOTE Never let the engine run without an air filter being installed. A dirty air filter element will affect the engine performance, increase fuel consumption and make the machine difficult to start. If you notice a loss of power, check the air filter. If the air filter is damaged, you MUST replace it.
  • Page 32 SPARK PLUG NOTE The spark plug must be tightened with a torque of 12-15Nm otherwise the engine may overheat causing damage. Only remove the spark plug after the engine has been turned off and allowed to cool. Remove the spark plug HT lead cap. Using the plug spanner provided, undo the spark plug and remove.
  • Page 33 CHAINSAW 7.15 Dismount the guide bar and check the oiling port for clogging. 7.16 Remove sawdust and debris from the groove in the guide bar. 7.17 Grease the nose sprocket from the grease point on the tip of the chain bar. 7.18 Reverse the chain bar occasionally to prevent partial wear.
  • Page 34 7.24 Place the chain file on the cutter and push straight forward. Keep the file position as illustrated. 7.25 After every cutter has been set, check the depth gauge and file to the proper level as illustrated. 7.26 Make sure every cutter has the same length and edge angles as illustrated below.

  • Page 35: Storage

    HEDGE TRIMMER 7.27 Clean the hedge trimmer blades after every use. They must be kept clean of tree sap and moisture. 7.28 Keep the blades lubricated with a silicone based grease. 7.29 Inspect the cutting surface of the teeth and sharpen accordingly. CLEANING NOTE DO NOT use a hose pipe or pressure washer to clean the machine.

  • Page 36: Specification

    9. SPECIFICATION Model Number HYMT5200 Engine Hyundai IC52-2R 2 Stroke Engine Capacity – cc 40:1 2 Stroke Fuel Type Unleaded Petrol / 15w40 Semi-Synthetic Engine Oil Fuel Tank Capacity – ml Trimmer Head Bevel Gear High temperature gear Grease / 25...

  • Page 37: Troubleshooting

    10. TROUBLESHOOTING NOTE If the troubleshooting guide does not resolve the problem, please contact the dealer. Use only manufacturer recommended parts otherwise a hazard risk arises.

  • Page 38: Declaration Of Conformity

    11. DECLARATION OF CONFORMITY Genpower Ltd confirms that this Hyundai product conforms to the following CE Directives; 2006/42/EC Machinery Directive 2004/108/EC EMC Directive 2000/14/EC Amended by 2005/88/EC Emissions Directive 97/68/EC_2010/26/EC NRMM Emissions Directive EC DECLARATION OF CONFORMITY The undersigned. As authorised by:...

  • Page 39: Recycling And Product Disposal

    12. RECYCLING & PRODUCT DISPOSAL 12.0 We do not offer a take back scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and or Batteries is passed on to you by So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site.

  • Page 40: Contact Details

    13. CONTACT DETAILS 13.0 POSTAL ADDRESS Genpower Ltd, Isaac Way, London Road, Pembroke Dock, Pembrokeshire. SA72 4RW. UK. 13.1 +44 (0) 1646 686198 13.2 SUPPORT aftersales@genpower.co.uk 13.3 WEBSITE www.hyundaipowerequipment.co.uk 14. WARRANTY To register your product for the manufacturer’s warranty, please visit: https://www.hyundaipowerequipment.co.uk/warranty For full warranty terms and conditions, please visit: https://hyundaipowerequipment.co.uk/support/warranty-information...
