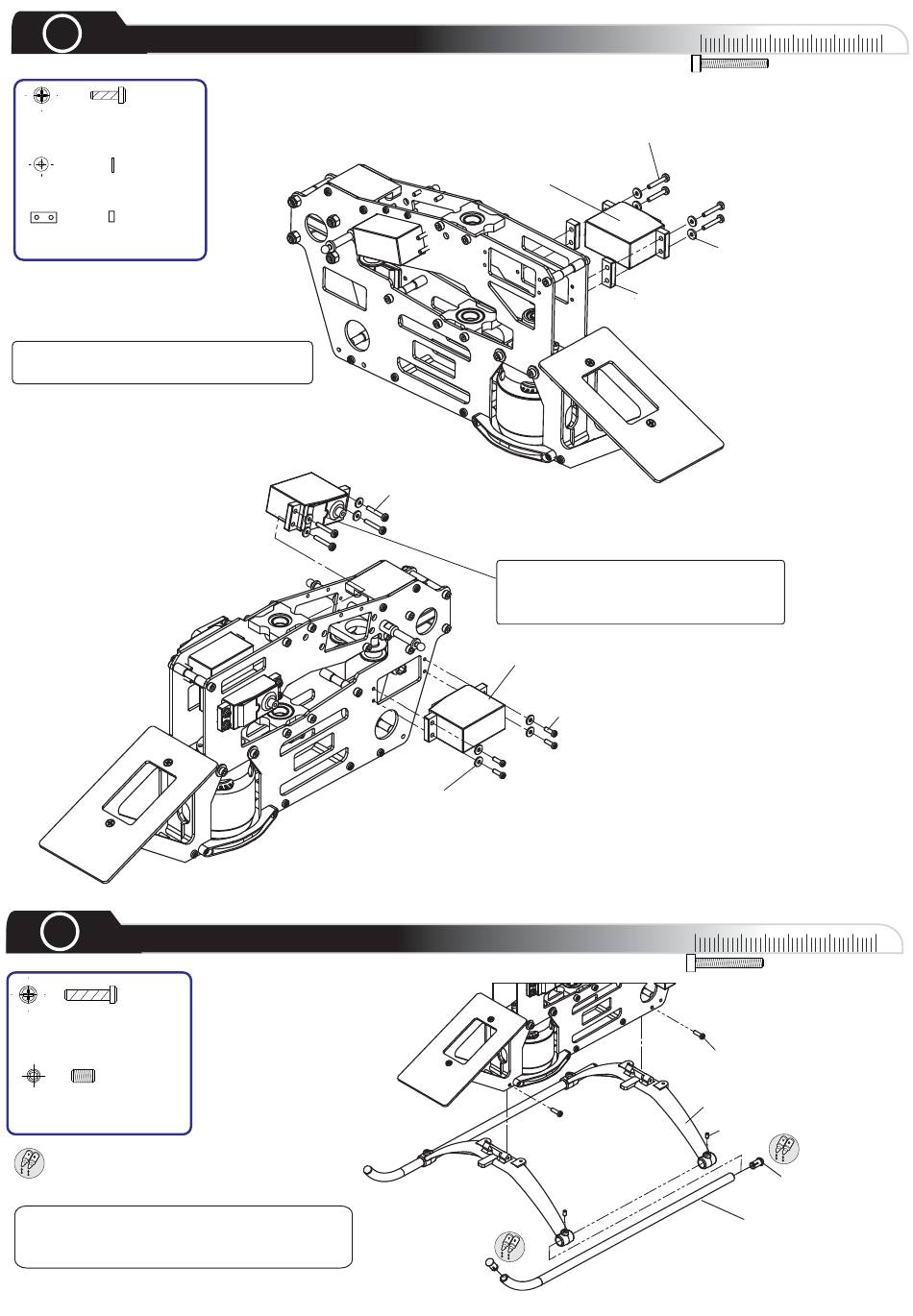

1
Servo
M2.5x10 Self Tapping
Bolt X 16
2.5mm Washer X 16
Plastic Spacer x 4
The Servo installation is done without
the supplied Servo Rubbers.
2
Landing Gear
M3 x10 Self Tapping
Bolt X 4
M3x5 Set Screw X 4
Use AB Glue
Tip
: Do not over tighten the four 3 x 5mm
set screws as it can damage the landing
struts.
Servo
M2.5x10 Self Tapping Bolt
This Servo is installed in between
the 2 frames. The Self Tapping Bolts
are screwed from the inside.
Servo
2.5mm Washer
0
.
M2 5X10 Self Tapping Bolt
.
2 5mm Washer
Servo Spacer
M2.5x10 Self Tapping Bolt
0
M3x10 Self Taping Bolt
Struts
M3x5 Set Screw
Landing Gear Skid
10
20
30
40
10
30
20
40
Skid Cap
