Compass Atom 6HV Instruction Manual page 11

A

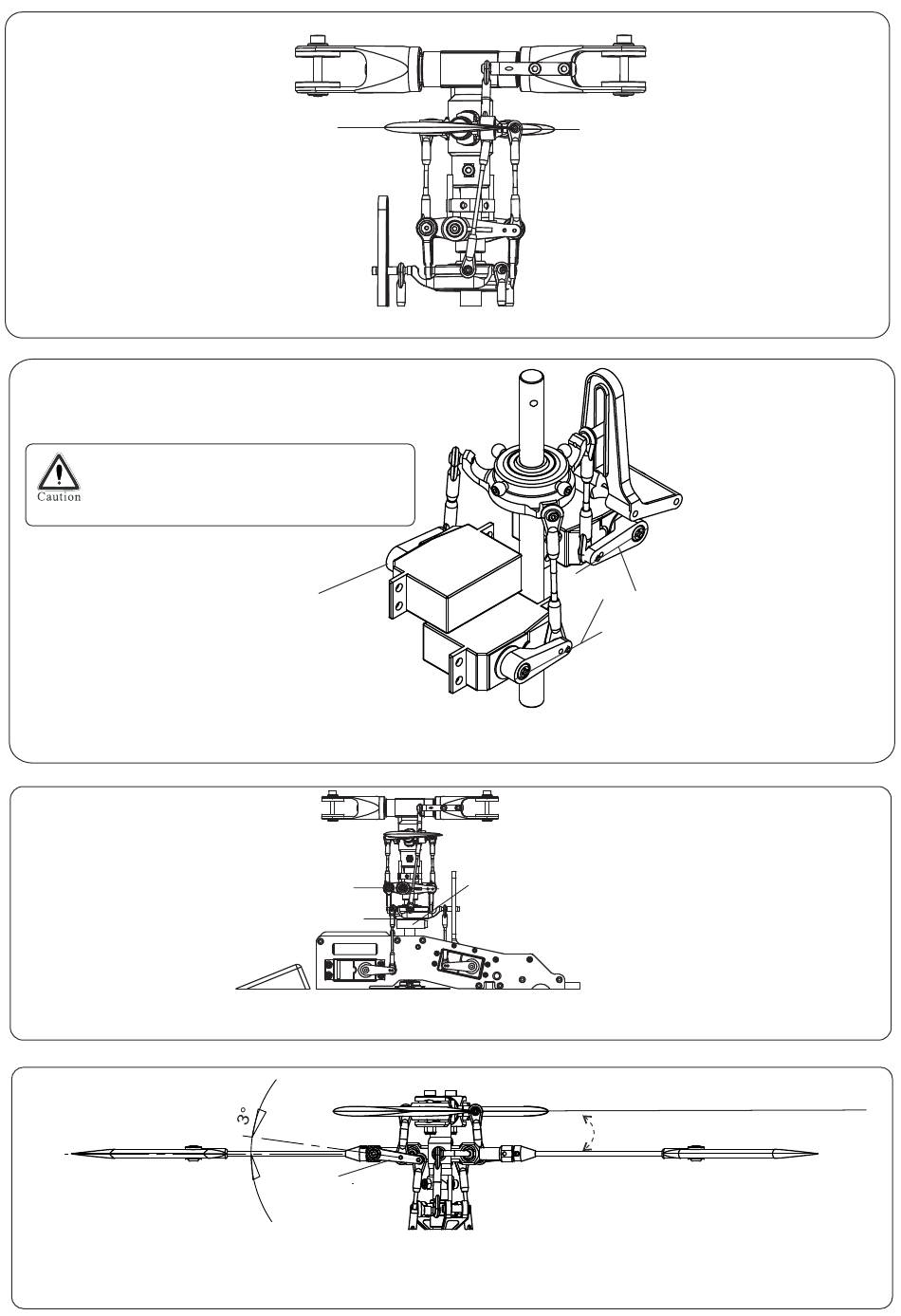

Make sure that the Flybar Control Arms and Paddles are in line as shown in the diagram.
B
Attention:
To do all Basic Setups first UNPLUG
ESC from the receiver then use a 4.8V
Receiver Battery for the setup.
Turn on the Transmitter, set the Throttle Stick into center position for 0 ° Pitch. Use the Subtrim menu to
adjust the 3 Swash Servo Arms to level.
C
Level the Swashplate by adjusting the links from the Servo Arms to the Swashplate. Use a
Compass Swashplate Tool as guide. Then set level the Washout Arms.
D
By adjusting the Links between Swashplate and Mixing Arms set the Mixing Arms to a 3° downward position.
Adjust the Links between the Mixing Arms and the Main Blade Holder to set the Main Blade Pitch to 0°.
Parallel
Horizontal
Horizontal
Horizontal
Mixing Arm
Horizontal
-
06 0501 Swash Plate Tool
0 Pitch °
