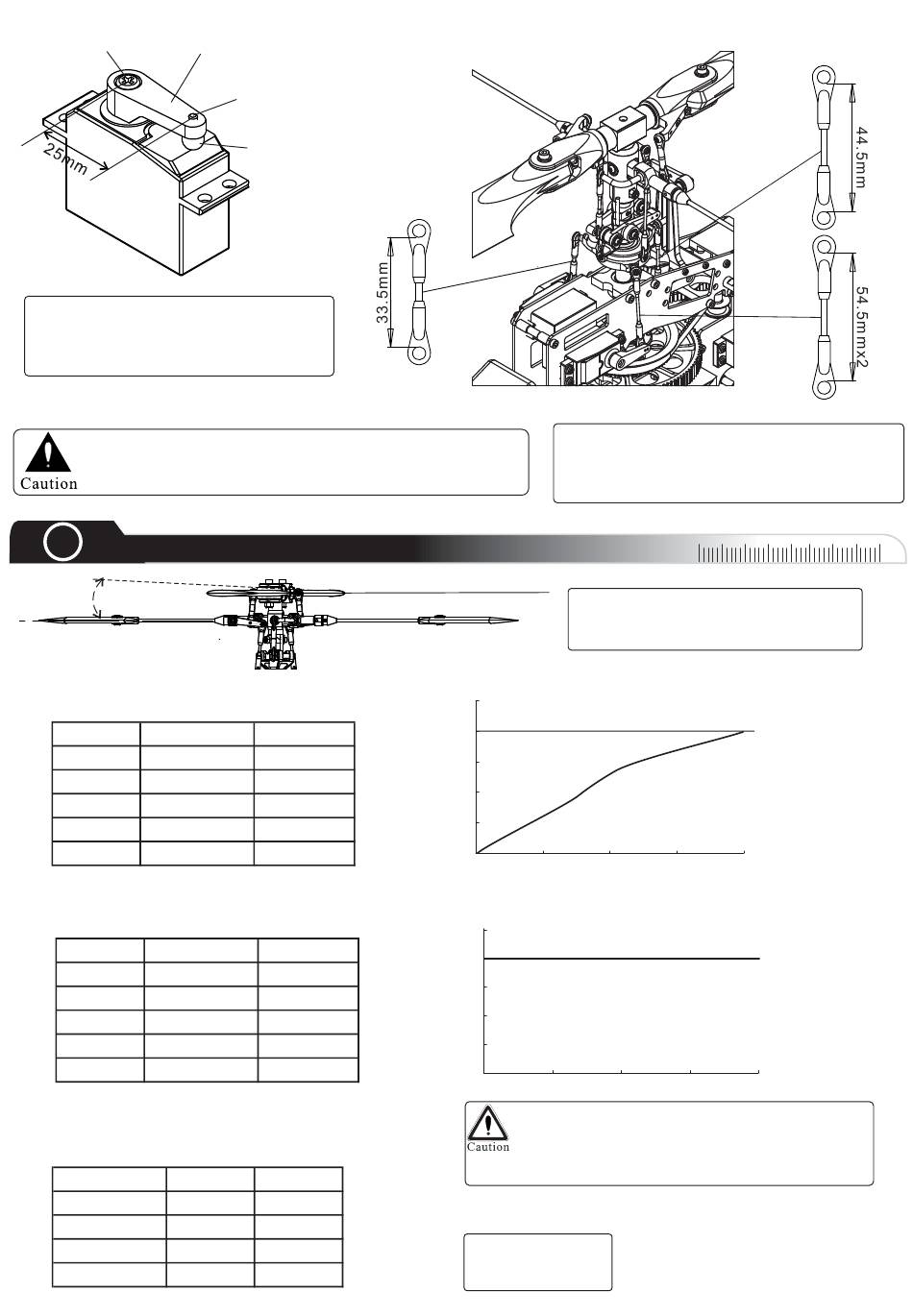

Compass Atom 6HV Instruction Manual page 10

Servo Screw
Servo Arm
Most servo manufacturer provide
extra long servo horn, please apply
that and setup the servo horn at 25mm
to the center.
Do not apply plier to resize Ball Links. Pliers could
cause hidden damage to Ball Links and result in
failure when operation.
8
Setup
Pitch
General Flight
Throttle
5 80%
4 75%
3
50%
2
25%
1 0%
3D Style
Throttle
5 80%
4 80%
3 80%
2 80%
80%
1
Swash Type Setting
JR
Swash Type
S3 120
Aile Elev
45% 45%
2x6mm Cap Head
Bolt
Stainless Balls
Pitch
9 deg
4~5 deg
-5 deg
Pitch
10 deg
5 deg
0 deg
-5 deg
-10 deg
Futaba
SWH
SR3
Pitch
45%
Compass Model Ball Links are build up on
the tight side this allows you to adjust them
to your personal needs. For this we suggest
to use a Ball Link sizing tool.
The 6HV total pitch range is about
30°. If you set the pitch too high then
flight time will be shortened.
Throttle Curve
100%
80%
60%
40%
20%
0%
1 2 3
Throttle Curve
100%
80%
60%
40%
20%
0%
1 2 3
Too high rate on Throttle curve setting could
result in extreme high RPM on main rotor.
Head speed over 2100 rpm could potentially
cause serious mechanical failure.
Esc Setup
Timing: 22.5 deg
No Brakes
Very Soft Start
0 0 0 0 10
20
4 5
4 5
See Page Team Tips!
30
40
