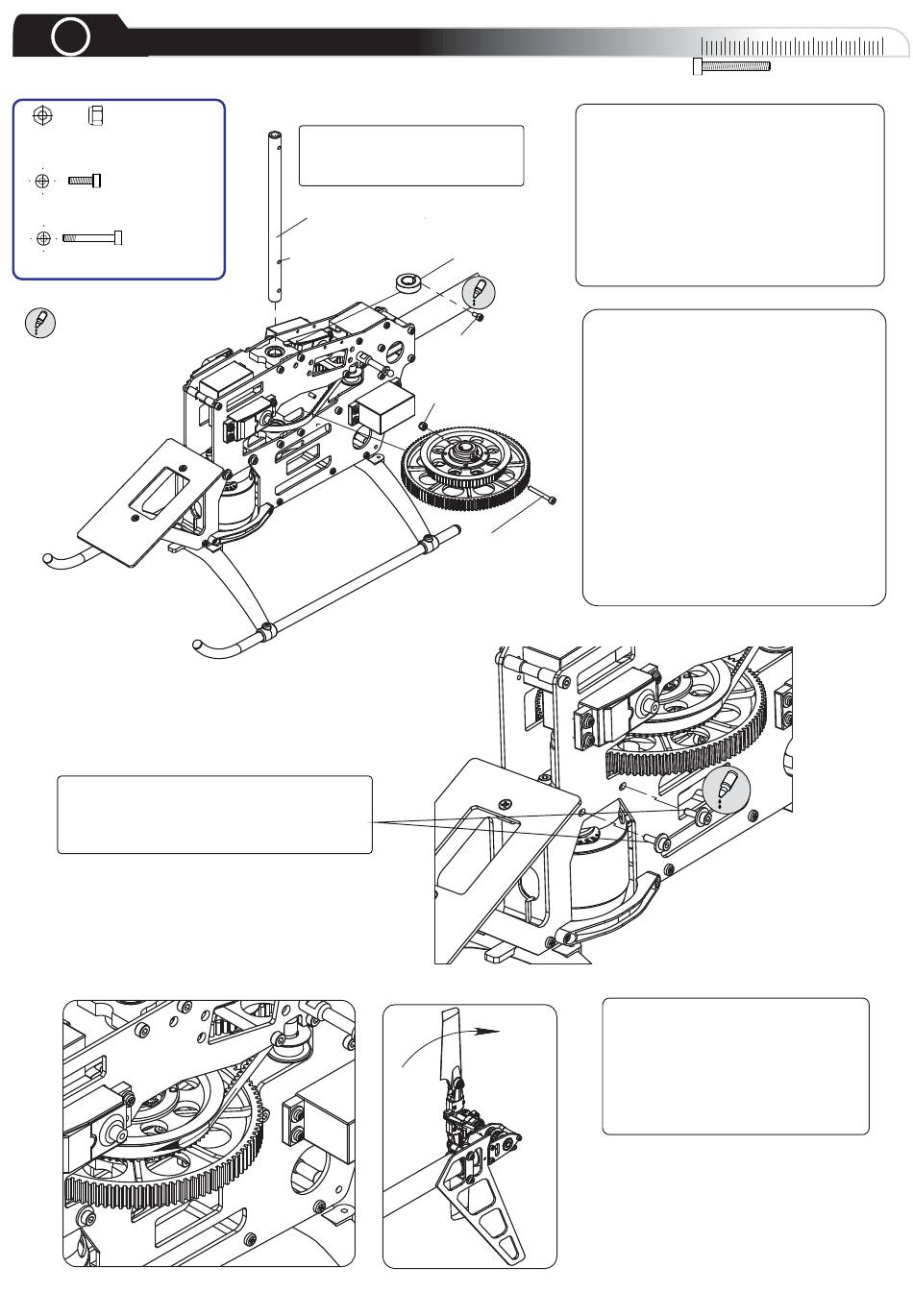

Compass Atom 6HV Instruction Manual page 7

4
Main Gear
M3 Nylon Lock Nut x1
M2.5x10 Cap Head Bolt x1
M3x27 Shanked Bolt x1
Use Threadlock
To adjust the correct backlash between
the Motor Pinion and the Main Gear
loose the 4 Motor Mount Bolts, then fix
them tightly with Threadlock.
Main Shaft Clamp has to br
mounted below the Bearing
Block.
Main Shaft
Apply This Hole
See Page Team Tips!
Lift the Main Shaft Collar upwards and
secure to the Main Shaft by slightly
tighten the Lock Screw. It is necessary
to align the Lock Screw through the
hole in the side of the Main Frame.
While securing the Lock Screw, make
sure that you are pushing down on the
Main Shaft so that there will be no
Mast Collar
up/down play in the Main Shaft once
the collar is secured.
Gear Backlash Adjustment:
For smooth operation and
M2.5x10 Cap
performance, it is necessary to adjust
Head Bolt
the Gear Backlash properly. Excess
Gear Backlash can cause premature
M3 Nylon Nut
Gear Wear and damage. Insufficient
Gear Backlash can cause vibration,
as well as overheating of the Motor
and Speed Controller. Adjust the Gear
Backlash by placing one piece of
paper between the Gears to set the
distance. When the Bolts are secure,
remove the paper and test the Gear
M3x27
Backlash to insure that there is a
Shanked Bolt
slight amount of free movement
between the gears.
Check the correct rotation of the
Tail Rotor Blades. The Blade on
the Top moves to the rear. If the
Tail Rotor rotates incorrectly,
simply pull out the main shaft and
twist the Belt in the other
direction.
