Compass 6HV Manual

Hide thumbs Also See for 6HV:
Table of Contents

Advertisement

Quick Links

Download this manual
Manual
Copy Right @ Compass Model 2014
Copy Right @ Compass Model 2014
www.compassmodel.com
www.compassmodel.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6HV and is the answer not in the manual?

Questions and answers

Related Manuals for Compass 6HV

Summary of Contents for Compass 6HV

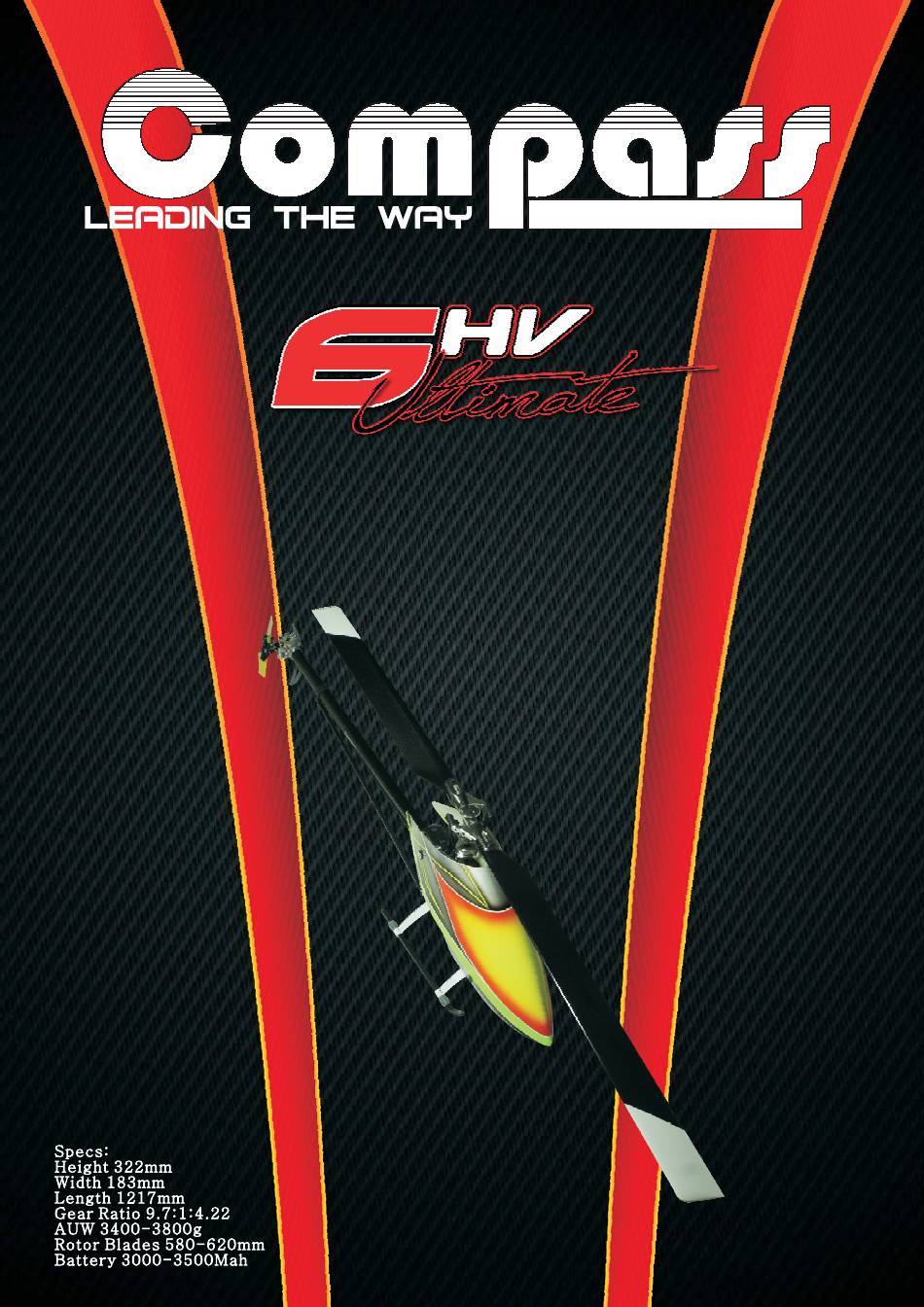

  • Page 1 Manual Copy Right @ Compass Model 2014 Copy Right @ Compass Model 2014 www.compassmodel.com www.compassmodel.com...

  • Page 2: Table Of Contents

    Content / Inhaltsverzeichnis Page Topic Thema Front Cover Deckblatt Content Inhaltsverzeichnis Content Inhaltsverzeichnis Content Inhaltsverzeichnis Introduction, Warranty, Safety (eng) Einleitung, Garantie und Sicherheit (eng) Introduction, Warranty, Safety (de) Einleitung, Garantie und Sicherheit (de) Technical Specification Technische Daten Basic Information Grundlagen (eng) Basic Information Grundlagen (de) STEP1: Main Blade Grips...
  • Page 3 Content / Inhaltsverzeichnis Page Topic Thema STEP22: Servo Arm Schritt 22: Servoarme STEP23: Bearing Blocks 1 Schritt 23: Lagerböcke 1 STEP24: Bearing Blocks 2 Schritt 24: Lagerböcke 2 STEP25: Break Away 1 Schritt 25: Sollbruchstellenplättchen 1 STEP26: Break Away 2 Schritt 26: Sollbruchstellenplättchen 2 STEP27: Main Pulley Schritt 27: Hauptriemenrad...
  • Page 4 Content / Inhaltsverzeichnis Page Topic Thema STEP52: Maingear to Frame Schritt 52: Getriebe - Chassis STEP53: Rotorhead to Frame Schritt 53: Rotorkopf - Chassis STEP54: Motor to Frame 1 Schritt 54: Motor - Chassis 1 STEP55: Motor to Frame 2 Schritt 55: Motor - Chassis 2 STEP56: ESC Mount to Frame Schritt 56: Reglerplatte - Chassis...
  • Page 5 Model Ltd. assumes no liability for damage that could occur from the assembly and/or use/misuse of this product. Although the 6HV Ultimate is powered by a quiet, smooth-running electric motor, it should be assembled and operated with the same care as glow engine helicopters. When operating your Atom 6HV Ultimate, please exercise caution and safety.
  • Page 6 Haftung für Schäden, die aus der Montage und/oder Gebrauch/Missbrauch des Produktes hervorgehen. Obwohl der Compass Model 6HV Ultimate durch einen Elektromotor betrieben wird, sollte er mit der gleichen Sorgfalt wie ein Verbrennermodell gebaut und betrieben werden. Betreiben Sie Ihren 6HV Ultimate stets mit größter Vorsicht und Sicherheit.
  • Page 7 Technical Specification / Technische Daten Height / Höhe 322mm Width / Breite 183mm (159mm) Lenght / Länge 1217mm Gear Ratio (10T) / Untersetzung (10 Zähne) 9.7 : 1 : 4.22 Take Off Weight with Battery / Startgewicht mit Akku 3400 - 3800g Motor KV (12S) / Motor KV (12S) 500 - 570 Rotor Blades / Rotorblätter...

  • Page 8: Basic Information

    Damaged ball links must be replaced immediately. Ball links are always clipped onto the ball with the Compass logo facing outwards. Ball links of Compass Model are moving a little hard, while they are new. With a link sizer (part number: E-XQT-01) you can adjust it to guarantee a perfect fit on the balls.

  • Page 9: Basic Information

    Nylon Stoppmuttern sollten nach einmaligen Gebrauch getauscht werden um eine ideale Funktion zu gewährleisten. Compass Model ist stets bemüht hochwertige Kugellager zu verwenden, aber auch diese müssen von Zeit zu Vermeiden Sie Öle zum Schmieren der Kugellager, da diese nicht Zeit, oder nach einem Absturz geprüft werden.

  • Page 10: Step1: Main Blade Grips

    Main Blade Grips (2x) Pos. Description Qty. Part number Preassembled by factory. Main Grip 07-0102 Bereits vormontiert. Main Grip Arm 07-0105m Use bearing grease on the thrust Ring 8.4x12x0.3 82-841203 bearing (5). Press the bearings in the shown order into the maingrip (1). Bearing 8x16x5 60-8165 The thrust bearing ring with the larger...

  • Page 11: Step2: Rotor Head

    Rotor Head 1 Pos. Description Qty. Part number Rotor Hub 14-0106 Use medium threadlock on all screws going into metal parts. Spindle Shaft 02-0113 Verwenden Sie auf allen Cap Head Bolt M3x6 80-0306 Schrauben die in Metallteile geschraubt werden mittelfeste Cap Head Bolt M3x12 80-0312 Schraubensicherung.

  • Page 12: Step5: Rotor Head

    Rotor Head 2 Pos. Description Qty. Part number Parts from Step 2 Use medium threadlock on all screws going into metal parts. Parts from Step 1 Verwenden Sie auf allen Ring 5.1x11x1 82-51111 Schrauben die in Metallteile geschraubt werden mittelfeste Button Head Bolt M5x10 79-0510 Schraubensicherung.
  • Page 13 Bitte stellen Sie die Länge des Mitnehmers (wie dargestellt) auf 76.5mm ein. Die Kugelpfanne sollte sich relativ leichtgängig auf der Kugel bewegen. Sollte dies nicht der Fall sein, so passen Sie diese mit einer Reibahle an. Klipsen Sie die Kugelpfannen nur mit dem Compass-Logo nach außen gerichtet auf die Kugeln!
  • Page 14 Rotor Head 3 Use medium threadlock on all Pos. Description Qty. screws going into metal parts. Parts from Step 4 Verwenden Sie auf allen Schrauben die in Metallteile Parts from Step 3 geschraubt werden mittelfeste Schraubensicherung. Put the threadlock into the thread in the main grip arm and be careful to not get any threadlock in the bearings.
  • Page 15 Swashplate Swashplate 1 Pos. Description Qty. Part number Swashplate 10-0003S Link Ball M2.5 02-0701s Swash Pin 09-7056s Use medium threadlock on all Preassembled by factory. screws going into metal parts. Verwenden Sie auf allen Bereits vormontiert. Schrauben die in Metallteile geschraubt werden mittelfeste Schraubensicherung.
  • Page 16 Qty. Slide the swashplate (2) on the main shaft and clip the ball links with the Parts from Step 5 Compass writing facing to the outside onto the balls. Parts from Step 6 Schieben Sie die Taumelscheibe (2) auf die Hauptrotorwelle und klipsen Sie die Kugelpfannen mit dem Compass Schriftzug nach außen auf.

  • Page 17: Step8: Tail Grip

    Tail Grip Pos. Description Qty. Part number Tail Grip 09-7208 Link Ball M2.5 02-0701s Be careful not to overtighten Mount the link balls (2) to the tail grips (1). screws going into plastic parts. Montieren Sie die Kugeln (2) an die Heckblatthalter (1). Ziehen Sie Schrauben die in Kunststoffteile geschraubt werden vorsichtig an ohne sie...

  • Page 18: Step9: Tail Rotor Hub

    Tail Rotor Hub 1 Pos. Description Qty. Part number Use medium threadlock on all screws going into metal parts. Tail Rotor Hub 09-7209 Verwenden Sie auf allen Schrauben die in Metallteile Setscrew M4x4 81-0404 geschraubt werden mittelfeste Schraubensicherung. Ring 3.2x7.4x0.8 82-327408 Cap Socket Bolt M3x6 80-0306...
  • Page 19 Tail Rotor Hub 2 Pos. Description Qty. Part number Tail Rotor Blades 95mm 02-0250 Cap Socket Bolt M3x22 80-0322 Nylon Lock Nuts M3 91-0003 Special Washer 09-7207 Parts from Step 9 Mount the tail rotor blades (1) with the leading edge towards the ball link at the tail blade grip. Use one washer (4) on each side of the tail rotor blades.

  • Page 20: Step11: Tail Pitch Slider

    Tail Pitch Slider Pos. Description Qty. Part number Preassembled by factory. Tail Pitch Sleeve 09-0213 Bereits vormontiert. Bearing 8x12x3.5 60-8123 Tail Pitch Slider Ring 09-0229 Tail Pitch Bridge 09-0211 Use medium threadlock on all Stainless Link Balls 02-0701 screws going into metal parts. Cap Socket Bolt M2x6S 80-0206S Verwenden Sie auf allen...

  • Page 21: Step12: Tail Control Arm

    Tail Control Arm Pos. Description Qty. Part number Cap Socket Bolt M2x6s 80-0206s Use medium threadlock on all screws going into metal parts. Cap Socket Bolt M3x20 80-0320 Verwenden Sie auf allen Spacer 09-7206 Schrauben die in Metallteile geschraubt werden mittelfeste Spacer 82-7205 Schraubensicherung.

  • Page 22: Step13: Tail Case

    Tail Case 1 Pos. Description Qty. Part number Preassembled by factory. Tail Sideframe (Aluminium) 09-7050N Bereits vormontiert. Flanged Bearing 6x13x5 61-6135 Put a little bit of strong loctite on the inside of the bearing seat and push the bearing completely in. Attention! You need a left and a right side for the tailcase.
  • Page 23 Tailshaft Pos. Description Qty. Part number Preassembled by factory. Tail pulley 17T 14-0007 Bereits vormontiert. Tail Rotor Shaft 09-0214 Spring Pin 2.5x14 84-2514 Push the tail pulley (1) onto the tail rotor shaft (2). Drive the spring pin (3) carefully through the hole in the tail pulley and tail rotor shaft.
  • Page 24 Tail Case 2 Pos. Description Qty. Part number Use medium threadlock on all screws going into metal parts. Tail Case Center 10-0006 Verwenden Sie auf allen Schrauben die in Metallteile Parts from Step 13 geschraubt werden mittelfeste Schraubensicherung. Parts from Step 14 Cap Head Bolt M3x10 80-0310 Preassembled by factory.
  • Page 25 Idler Pos. Description Qty. Part number Use medium threadlock on all screws going into metal parts. Tail Guide Wheel Collar 09-7066 Verwenden Sie auf allen Flanged Bearing 3x6x2 61-3062 Schrauben die in Metallteile geschraubt werden mittelfeste Spacer Tail Guide Wheel 09-7067 Schraubensicherung.
  • Page 26 Pull the tail belt through the tail boom (1). remove the two M2.5 bolts (3) completely and open the clamp of the tail case center. Push the boom completely into the tail case center and middle the Compass writing on the boom to a perfect side view position.

  • Page 27: Step18: Tail Rotor

    Tail Rotor 1 Pos. Description Part number Use medium threadlock on all screws going into metal parts. Parts from Step 10 Verwenden Sie auf allen Parts from Step 11 Schrauben die in Metallteile geschraubt werden mittelfeste Parts from Step 17 Schraubensicherung.
  • Page 28 Tail Rotor 2 Pos. Description Qty. Parts from Step 18 Use medium threadlock on all screws going into metal parts. Parts from Step 12 Verwenden Sie auf allen Schrauben die in Metallteile geschraubt werden mittelfeste Mount the tail pitch control arm (2) assembled in Step 10 to the Schraubensicherung.

  • Page 29: Step20: Tail Control Rod

    Tail Control Rod Pos. Description Qty. Part number Preassembled by factory. Tail Control Rod 685mm 4mm 14-0012 Bereits vormontiert. Rod M2x708mm 10-3001 Delrin Tail Link Support 09-7080 Tail Control Rod Guide 14-1005 Ball Link M2 02-0709 Push the tree delrin tail link supports (3) on the tail control rod (1).

  • Page 30: Step21: Tail Support

    Tail Support Pos. Description Qty. Part number Parts from Step 20 Tail Support Braces 14-8809 Cap Head Bolt M3x35 80-0335 Nylon Lock Nut M3 91-0003 Push the tail control rod guide onto the tail boom. Please take care about the angled spot on it. Now attach the two tail support braces (2) with the bolt (3) and the lock nut (4) to the guide.

  • Page 31: Step22: Servo Arm

    Servo Arm 18mm (3x) / 15mm (1x) Pos. Description Qty. Part number Cap Socket Bolt M2x8S 80-0208S Stainless Link Balls 02-0701 Hex Nuts 2x1 90-0201 Servo Arm (ball distance 18mm) Not included Servo Arm (ball distance 16mm) Not included Use medium threadlock on all You need servo arms (4, 5) with a hole distance of screws going into metal parts.

  • Page 32: Step23: Bearing Blocks

    Bearing Blocks Preassembled by factory. Pos. Description Qty. Part number Bearing Block 02-0605 Bereits vormontiert. Bearing 10x19x5 60-10195 To change the bearing you should heat up the bearing block with a heat gun and then remove the bearing with even pressure. For reassembeling it is helpful to heat up the bearing block again and cool down (refrigerator) the bearing.
  • Page 33 Bearing Blocks 2 Preassembled by factory. Pos. Description Qty. Part number Lower Bearing Block 14-0605 Bereits vormontiert. Bearing 10x19x5 60-10195 To change the bearing you should heat up the bearing block with a heat gun and then remove the bearing with even pressure. For reassembeling it is helpful to heat up the bearing block again and cool down (refrigerator) the bearing.

  • Page 34: Step25: Break Away

    Break Away 1 (2x) Pos. Description Qty. Part number Cap Socket Bolt M3x8 80-0308 Canopy Mount - Front 14-0810 Break Away - Front 14-0013 Cap Socket Bolt M3x12 80-0312 Use medium threadlock on all Mount the front canopy mount (2) to the break away screws going into metal parts.

  • Page 35: Step26: Break Away

    Break Away 2 (2x) Pos. Description Qty. Part number Cap Socket Bolt M3x8 80-0308 Canopy Quick Releaser Mount 06-8703D Break Away - Back 14-0010 Self Cutting Bold M2.5x10 95-2510 Use medium threadlock on all Mount the canopy quick releaser mount (2) to the break screws going into metal parts.
  • Page 36 Mainpulley Preassembled by factory. Pos. Description Qty. Part number Mainpulley 07-4501 Bereits vormontiert. Mainpulley Hub 07-0623 Cap Socket Bolt M3x6 80-0306 Use medium threadlock on all screws going into metal parts. Verwenden Sie auf allen Schrauben die in Metallteile geschraubt werden mittelfeste Schraubensicherung.

  • Page 37: Step28: Main Gear

    Main Gear Pos. Description Qty. Part number Use medium threadlock on all screws going into metal parts. Main Gear 14-4603 Verwenden Sie auf allen Autorotation Hub 07-0612E Schrauben die in Metallteile geschraubt werden mittelfeste Cap Socket Bolt M3x6 80-0306 Schraubensicherung. Bearing 12x21x5 60-12215 Preassembled by factory.
  • Page 38 Main Gear 2 Pos. Description Qty. Part number Use medium threadlock on all Parts from Step 28 screws going into metal parts. Parts from Step 27 Verwenden Sie auf allen Schrauben die in Metallteile One Way Sleeve 07-0622 geschraubt werden mittelfeste Schraubensicherung.

  • Page 39: Step30: Counter Bearing Block

    Counter Bearing Block Pos. Description Qty. Part number Cap Socket Bolt M3x6 80-0306 Cap Socket Bolt M3x30 80-0330 Use medium threadlock on all screws going into metal parts. Bearing 6x13x5 60-6135 Verwenden Sie auf allen Schrauben die in Metallteile Washer 3.2x7x0.8 82-3708 geschraubt werden mittelfeste Schraubensicherung.

  • Page 40: Step31: Motor Mount

    Motor Mount Pos. Description Qty. Part number Cap Socket Bolt M3x6 80-0306 Cap Socket Bolt M3x10 80-0310 Use medium threadlock on all screws going into metal parts. Motor Pinion 10T helical 07-4310L Verwenden Sie auf allen Schrauben die in Metallteile Washer 3.2x7x0.8 82-3708 geschraubt werden mittelfeste...

  • Page 41: Step32: Mast Lock Collar

    Mast Lock Collar Pos. Description Qty. Part number Mast Lock Collar 14-2018 Headsocket Bolt M3x10 80-0310 Thread the bolts (2) into the mast lock collar without loctite and without clamping the collar for this step. Schrauben Sie die Klemmschrauben (2) vorerst nur teilweise und ohne Schraubensicherung in den Klemmring (1).

  • Page 42: Step33: Battery Tray

    Battery Tray Pos. Description Qty. Part number Use medium threadlock on all screws going into metal parts. Cross Member M3x30 02-1805 Verwenden Sie auf allen Battery Tray 14-0008 Schrauben die in Metallteile geschraubt werden mittelfeste Schraubensicherung. Flat Head Bolt M3x6 78-0306 Cap Socket Bolt M3x8 80-0308...

  • Page 43: Step34: Esc Tray

    ESC Trays 2X Pos. Description Qty. Part number ESC Tray 14-0009 Cap Socket Bolt M3x22 80-0322 Controller Mount Collar 14-2008 Just slide the bolts (2) trough the holes of the ESC tray (1) and the collars (3). Make sure to prepare two mirror inverted units as shown below.

  • Page 44: Step35: Gyro Tray

    Gyro Tray Pos. Description Qty. Part number Use medium threadlock on all screws going into metal parts. Cross Member M3x30 02-1805 Verwenden Sie auf allen Gyro Tray 14-0008 Schrauben die in Metallteile geschraubt werden mittelfeste Schraubensicherung. Flat Head Bolt M3x6 78-0306 Cap Socket Bolt M3x8 80-0308...

  • Page 45: Step36: Belt Tensioner

    Belt Tensioner Pos. Description Qty. Part number Belt Tensioner Mount 14-2002 Use medium threadlock on all screws going into metal parts. Guiding Wheel Tailbelt 14-2003 Verwenden Sie auf allen CF Bridge for Guiding Wheel 14-0005 Schrauben die in Metallteile geschraubt werden mittelfeste Cap Socket Bolt M3x18 80-0318 Schraubensicherung.

  • Page 46: Step37: Upper Sideframe Right

    Upper Sideframe Right Pos. Description Qty. Part number Use medium threadlock on all Metal Servo Nuts 14-2001 screws going into metal parts. Sideframe Right 14-0002 Verwenden Sie auf allen Schrauben die in Metallteile Cap Socket Bolt M2.5x12 80-2512 geschraubt werden mittelfeste Schraubensicherung.

  • Page 47: Step38: Upper Sideframe Left

    Upper Sideframe Left Pos. Description Qty. Part number Use medium threadlock on all Metal Servo Nuts 14-2001 screws going into metal parts. Sideframe Left 14-0001 Verwenden Sie auf allen Schrauben die in Metallteile Cap Socket Bolt M2.5x12 80-2512 geschraubt werden mittelfeste Schraubensicherung.

  • Page 48: Step39: Lower Sideframe Left

    Lower Sideframe Left Pos. Description Qty. Part number Use medium threadlock on all Metal Servo Nuts 14-2001 screws going into metal parts. Lower Frame Left 14-0003 Verwenden Sie auf allen Schrauben die in Metallteile Cap Socket Bolt M2.5x12 80-2512 geschraubt werden mittelfeste Schraubensicherung.

  • Page 49: Step40: Frame

    Frame 1 Pos. Description Qty. Part number Parts from STEP35 Use medium threadlock on all screws going into metal parts. Parts from STEP37 Verwenden Sie auf allen Schrauben die in Metallteile Cap Socket Bolt M3x8 80-0308 geschraubt werden mittelfeste Schraubensicherung. Parts from STEP23 Parts from STEP24 Lower Right Frame...
  • Page 50 Frame 2 Pos. Description Qty. Part number Parts from STEP40 Use medium threadlock on all screws going into metal parts. Crossmember M3x30 02-0805 Verwenden Sie auf allen Schrauben die in Metallteile Cap Socket Bolt M3x8 80-0308 geschraubt werden mittelfeste Schraubensicherung. Parts from STEP36 Mount the two crossmember (2) with the bolts (3) to the sideframe (1) Install the belt tensioner (4) with the bolt (3).

  • Page 51: Step43: Frame

    Frame 3 Pos. Description Qty. Part number Parts from STEP40 Use medium threadlock on all screws going into metal parts. Crossmember M3x3 02-0805 Verwenden Sie auf allen Schrauben die in Metallteile Cap Socket Bolt M3x8 80-0308 geschraubt werden mittelfeste Schraubensicherung. Parts from STEP36 Carbon Reenforcer 14-0006...
  • Page 52 Frame 4 Pos. Description Qty. Part number Parts from STEP42 Use medium threadlock on all screws going into metal parts. Parts from STEP38 02-0805 Verwenden Sie auf allen Schrauben die in Metallteile Cap Socket Bolt M3x8 80-0308 geschraubt werden mittelfeste Schraubensicherung.

  • Page 53: Step45: Frame

    Frame 5 Pos. Description Qty. Part number Parts from STEP43 Use medium threadlock on all screws going into metal parts. Parts from STEP25 Verwenden Sie auf allen Schrauben die in Metallteile Cap Socket Bolt M3x8 80-0308 geschraubt werden mittelfeste Schraubensicherung. Carbon Reenforcer 14-0006 Parts from STEP39...
  • Page 54 Frame 6 Pos. Description Qty. Part number Use medium threadlock on all screws going into metal parts. Parts from STEP44 Verwenden Sie auf allen Cap Socket Bolt M3x8 80-0308 Schrauben die in Metallteile geschraubt werden mittelfeste Schraubensicherung. Mount the bolts (2) to the frame (1). Place te bolts into the belt tensioner and the lowercrossmember. Montieren Sie die Schrauben (2) in das Chassis (1).
  • Page 55 Frame 7 Pos. Description Qty. Part number Use medium threadlock on all screws going into metal parts. Parts from STEP45 Verwenden Sie auf allen Cap Socket Bolt M3x8 80-0308 Schrauben die in Metallteile geschraubt werden mittelfeste Battery Backstop 14-1003 Schraubensicherung. Mount the battery backstop (3) with the bolts (2) to the frame (1).

  • Page 56: Step46: Frame

    Frame 8 Pos. Description Qty. Part number Use medium threadlock on all screws going into metal parts. Parts from STEP46 Verwenden Sie auf allen Parts from STEP26 Schrauben die in Metallteile geschraubt werden mittelfeste Schraubensicherung. Mount the canopy quick releases (2) to the frame (1). Attention: watch the orientation of the break aways carefully and compare it to the graphic below! Montieren Sie die Haubenschnellverschlüsse (2) an das Chassis (1).
  • Page 57 Landing Gear1 Pos. Description Qty. Part number Use medium threadlock on all screws going into metal parts. Parts from STEP47 Verwenden Sie auf allen Cap Socket Bolt M3x8 80-0308 Schrauben die in Metallteile geschraubt werden mittelfeste Struts (3Dplus) 02-0822 Schraubensicherung. Struts Mount Carbon 14-0007 Mount the struts (3) with the bolts (2) to the frame (1).

  • Page 58: Step48: Landing Gear

    Landing Gear 2 Pos. Description Qty. Part number Use medium threadlock on all screws going into metal parts. Parts from STEP48 Verwenden Sie auf allen Skids 02-0821 Schrauben die in Metallteile geschraubt werden mittelfeste Set Screw M3x5 81-0305 Schraubensicherung. Skid Stopper 02-0821C 02-0822 Mount the two front skid stopper (4) to the skids (2).

  • Page 59: Step50: Boom Clamp

    Boom Clamp Pos. Description Qty. Part number Mount the rubberring (6) to the belt tensioner and the belt tensioner mount (4) by using the bolts (5) and the Parts from STEP49 guide wheel mount collar (7). Now install the bolts (8, 9) with the washers (3) and the lock nuts (2) through the boom clamp (11).

  • Page 60: Step51: Boom To Frame

    Boom to Frame Pos. Description Qty. Part number Use medium threadlock on all screws going into metal parts. Parts from STEP50 Verwenden Sie auf allen Parts from STEP21 Schrauben die in Metallteile geschraubt werden mittelfeste Cap Socket Bolt M3x25 80-0325 Schraubensicherung.

  • Page 61: Step52: Maingear To Frame

    Maingear to Frame Pos. Description Qty. Part number Use medium threadlock on all screws going into metal parts. Parts from STEP51 Verwenden Sie auf allen Parts from STEP29 Schrauben die in Metallteile geschraubt werden mittelfeste Schraubensicherung. Pull the tailbelt around the mainpulley of the main gear assemble (2). Don‘t flip or turn the belt in any direction.

  • Page 62: Step53: Rotorhead To Frame

    Rotorhead to Frame Pos. Description Qty. Part number Use medium threadlock on all screws going into metal parts. Parts from STEP52 Verwenden Sie auf allen Parts from STEP7 Schrauben die in Metallteile geschraubt werden mittelfeste Parts from STEP32 Schraubensicherung. Open the jesus bolt in the maingear assemble. Remove the bolts in the mast lock collar (3). Now slide the mainshaft of the rotor head (2) through the bearings of the bearing blocks, the mast lock collar (3) and the maingear assemble.

  • Page 63: Step54: Motor To Frame

    Motor to Frame 1 Pos. Description Qty. Part number Use medium threadlock on all screws going into metal parts. Parts from STEP53 Verwenden Sie auf allen Parts from STEP31 Schrauben die in Metallteile geschraubt werden mittelfeste Schraubensicherung. Remove all M3x8 bolts from the motor unit (2) and slide it into the frame. Now install the 4 bolts for the motor mount first. Now setup the gearmesh with the paper stripe method.
  • Page 64 Motor to Frame 2 Pos. Description Qty. Part number Use medium threadlock on all screws going into metal parts. Parts from STEP54 Verwenden Sie auf allen Cap Socket Bolt M3x8 80-0308 Schrauben die in Metallteile geschraubt werden mittelfeste Schraubensicherung. Connect the motor mount to the lower bearing block by using the two bolts (2). Verbinden Sie den Motorträger mit dem unteren Lagerbock.

  • Page 65: Step56: Esc Mount To Frame

    ESC Mount to Frame Pos. Description Qty. Part number Use medium threadlock on all screws going into metal parts. Parts from STEP55 Verwenden Sie auf allen Parts from STEP34 Schrauben die in Metallteile geschraubt werden mittelfeste Crossmember M3x30 02-0805 Schraubensicherung. Crossmember M3x34 14-2007 Install the ESC trays to the frame by using the crossmembers (3, 4).
  • Page 66 RC-Equipement Pos. Description Qty. Part number Please use alcohol to clean and Parts from STEP56 degrease the bonding surfaces. Bitte benutzen Sie Alkohol zum reinigen und entfetten der Klebestellen. Reciever FBL -Unit Mount the FBL-unit (4) on the gyro board. Please using the manufacturer's recommended adhesive pad. If you are in doubt a tough and thin pad is preferable.

  • Page 67: Step58: Battery

    Battery 1 Pos. Description Qty. Part number Please use alcohol to clean and Parts from STEP57 degrease the bonding surfaces. Bitte benutzen Sie Alkohol zum Velcro (60x30mm) Hook reinigen und entfetten der Klebestellen. Clean the battery tray with alcohol and stick the hook side of a selfadhesive velcro (2) with about 60x30mm on the battery tray.

  • Page 68: Step60: Battery

    Battery 2 Pos. Description Qty. Part number Please use alcohol to clean and Battery 12S 2500-3500mAh degrease the bonding surfaces. Bitte benutzen Sie Alkohol zum Velcro (60x30mm) Loop reinigen und entfetten der Klebestellen. Clean the battery with alcohol and stick the loop side of a selfadhesive velcro (2) with about 60x30mm on the battery.
  • Page 69 Battery 3 Pos. Description Qty. Part number Parts from STEP58 Parts from STEP59 Hook and Loop Fastener 20x300 VBT300 Slide the hook and loop fasteners (3) trough the holes in the frame and attach the battery to the helicopter. You may need to shorten the hook and loop fasteners with a scissors.

  • Page 70: Step61: Servoarm To Servo

    Servoarm to Servo 1 Pos. Description Qty. Part number Parts from STEP60 Parts from STEP 22 (2x18mm) Servo Arm Bolt With the swash servos in neutral position, put the servo arms (2) as close as possible to 90° to the main shaft onto the servos.
  • Page 71 Servoarm to Servo 2 Pos. Description Qty. Part number Parts from STEP61 Parts from STEP 22 Servo Arm Bolt With the swash servos in neutral position, put the servo arms (2) as close as possible to 90° to the main shaft/tail control rod onto the servos.

  • Page 72: Step63: Links

    Description Qty. Part number Parts from STEP62 6HV Linkage Set 14-LG01 Screw the ball links approximately the same way on both sides onto the Rods. Take the lengthts from the chart below. The lengthts may need a small readjustment later.

  • Page 73: Step64: Rotorblades

    Rotorblades Pos. Description Qty. Part number Parts from STEP63 Rotorblades 615mm F-04-0250T Remove the nylon lock nuts of the blade bolt and mount the rotor blades as shown into the blade grips. A spacer should be above and below of the blade root. Tighten the nylon lock nut only slightly. The blade should not be able to move by his own weight, but still relatively easy.

  • Page 74: Step65: Canopy

    Canopy Pos. Description Qty. Part number Use some grease (for example vaseline) on the rubber grommets for easier Canopy 6HV Ultimate 14-0851(R/Y) mounting. Rubber Grommets 02-8853 Benutzen Sie etwas Fett (zum Beispiel Vaseline) um die Gummitüllen leichter Rubber Grommets 02-0853 auf die Haubenhalter drücken zu können.

  • Page 75: Step66: Congratulation

    Congratulation Congratulation your hardware build is done. Now keep attention to the setup and enjoy your 6HV Ultimate. We hope you had no problems during the build - otherwise please contact our customer support. We will help you to solve any problem! Herzlichen Glückwunsch der Bau ihrer...

  • Page 76: Step67: Wiring

    Wiring Pos. Description Qty. Parts from Step 66 Never use RC-components with damaged wires. Check all wires for damaged insolation and breakage. Control all servo connectors for a tight fit and be sure no wire is loose in the connector! All wires must be protected against damage through sharp edges of the carbon frame and metal parts.

  • Page 77: Step68: Control Check

    Control Check Mode 1 Mode 2 Aileron Roll Elevator Nick Pitch Pitch Rudder Heckrotor Move the transmitter sticks as shown and compare the responses of the helicopter with those in the graphics. For example: If you fly mode 2 and give aileron to the right (top transmitter graphics - red stick), then should the swashplate tilt to the right (top helicopter - graphics - red arrow).
  • Page 78 Flybarless-Setup 1 For easy measurement of the pitch angles during the setup, please use something long and straight (like a flybar or CF-Tube) and put it on the bearing block behind the main rotor shaft (watch the picture). With this trick you can easily use a normal pitch gauge to check the collective and cyclic angles.
  • Page 79 Flybarless-Setup 2 Hitec/Futaba Aileron Elevator ESC Signal Gyro Gain Aux2 Motor-Wire Rudder Motor-Kabel Pitch Aux1 Reciever Empfänger Please read the manual of your FBL-Unit, Please read the manual of your FBL-Unit, transmitter and receiver very attentively. transmitter and receiver very attentively. Each FBL-Unit is different! Follow the Each FBL-Unit is different! Follow the manuals step by step and ask for help if you...
  • Page 80 Flybarless-Setup 3 One of the most important points is the Movement of the helicopter direction of the gyros. We start with the Bewegung des Hubschraubers aileron. Watch the helicopter from the front. Tilt the helicopter to the right (blue arrow - spinning clockwise), the swash- plate must tilt to the left (red arrow - spinning counter-clockwise) as shown in the picture.
  • Page 81 Flybarless-Setup 4 We continue with the elevator gyro. Watch the helicopter from the side. Tilt the helicopter to the right (blue arrow - spinning clockwise), the swash plate must tilt to the left (red arrow - spinning counter- clockwise) as shown in the picture. Tilt the helicopter to the left, the swash plate must tilt to the right as shown in the picture.

  • Page 82: Step69: Flybarless Setup

    1200 - 1800 RPM 1800 - 2400 RPM Set the endpoints of the tail servo to both limits A and B Compass 95mm A = 14mm / B = 0.5mm A = 13.5mm / B = 1mm (distance between slider and bearing).
  • Page 83 Rotation Check When the main rotor spins clockwise (blue arrow) the tail blades should turn counter clockwise (red arrow) watching the tail rotor from the right side. If not, the belt is twisted and has to be corrected (check step 48 to do this). sure that the main rotor and tail rotor blades are installed in the right direction.
  • Page 84 COMPASS MODEL (HK) LIMITED www.compassmodel.com Version: 08/12/13...
