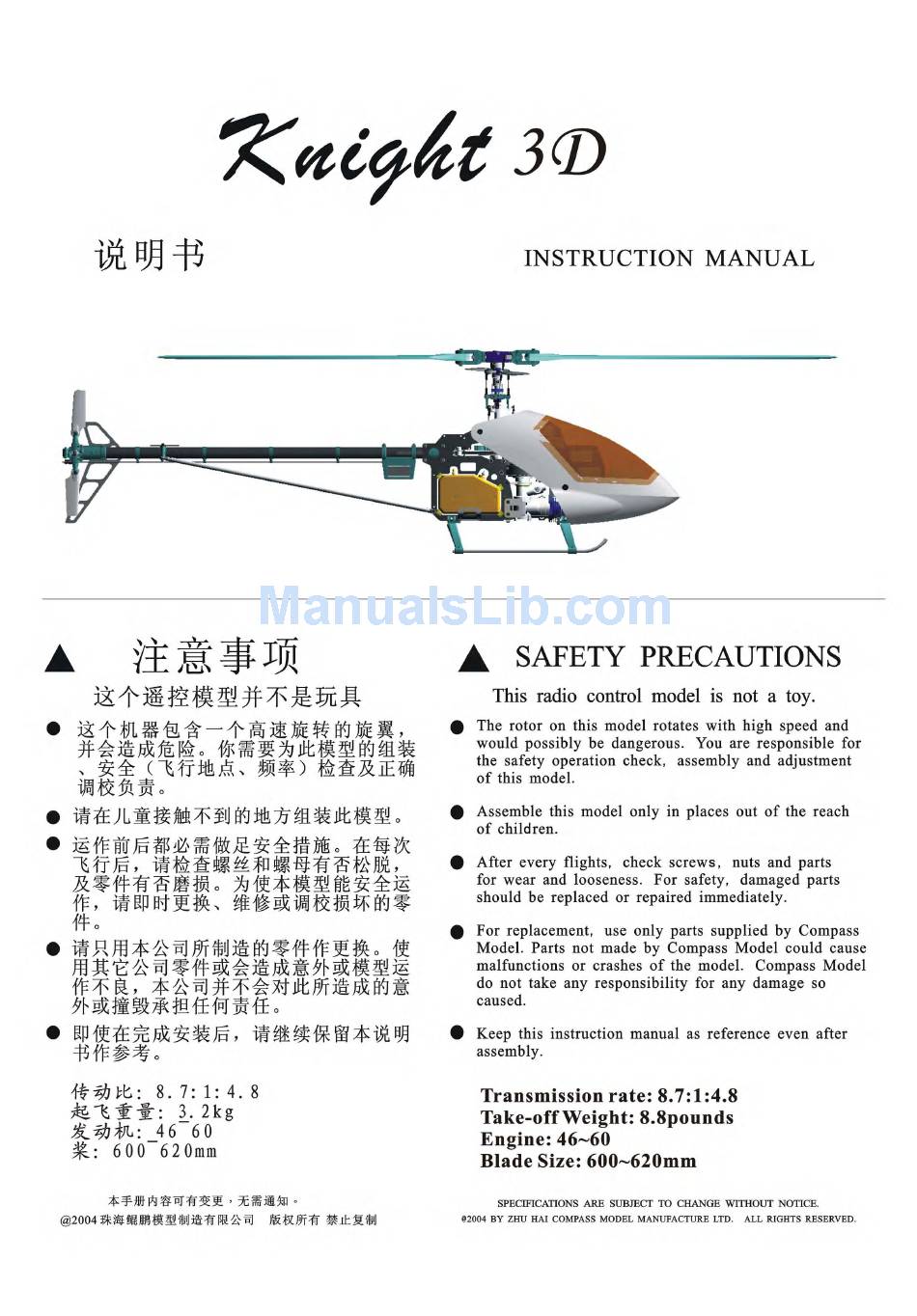

Summary of Contents for Compass Knight 3D
- Page 3 Step 1 Landing Gear & Front Plate M3 Washer M3x20 Socket M3 Nylon Nut M3x8 Socket Head Bolt x4 Head Bolt x2 M3x5 Set Screw M3x20 Socket Front Plate Head Bolt Skid Foot M3x5 Set Screw M3 Washer M3 Nylon Nut Skid Tube M3x8 Socket Head Bolt a) Use M3x20 Socket Head Bolts, Washers and Nylon Nuts to fix the Skid Foot on the...
- Page 4 Step 4. Main Shaft, Gear Set and Belt M3x10 Socket M3x5 Set M3x25 Socket M3 Nylon Head Bolt x1 Screw x1 Head Bolt x1 Nut x1 Main Shaft Master Block Top Bearing Holder M3x10 Sockey Head Bolt Gear Set M3 Nylon Nut M3x5 Set Screw only to help when tighting the Socket Head Bolt.
- Page 5 Step 2. Install the Engine M3 Washer M3 Nylon Nut M3x16 Socket Head Bolts x8 M3x10 Socket M3x8 Socket M3x12 Socket Head Bolts x4 Head Bolts x2 Head Bolts x2 An Engine Tool is needed to tight the Fan M3x12 Socket Hub on the Engine.
- Page 6 Step 3 Tail, Boom, Belt and Fins M3 Washer M3x40 Socket M3 Nylon Nut M3x15 Socket Head Bolts x6 Head x2 M3 Nuts M3x30 Socket M3x12 Socket Head Bolts x2 Head Bolts x2 M3 Nut M3 Nylon M3x12 Socket Head Bolt M3x40 Socket Head Bolt M3x20 Socket...
- Page 7 Step 5. Rotor Head, Swash Plate, Washout & Paddle M3x22 Socket M3 Nylon M3x10 Set Head Bolt x1 Nut x1 Screw x2 Screw Direction Seasaw Fly Bar M3x22 Socket Head Bolt Wash Out Screw Direction M3x10 Set Swash Plate Screw Connect Here Connect...
- Page 8 A few notes on Paddle and Fly Bar installation Pallele Flybar Appares Here Flybar Appares Here Same Distance a) make sure Flybar has been installed deep enought into the Paddle. Flybar show appares from the hole on the paddle. b) the centre line of Paddle and Flybar Control Arm should be pallele. c) the 2 Paddles should be balanced to the center of the Seasaw.
- Page 9 M2.5x16 M2.5 Washer Self Tapping Servo Nut Bolt Servo Horn M2x6 Socket Head Bolt Bolt comes with Servo a) all Servo Horn should be set to 11mm from the Center. b) use M2.5 Self Tapping Bolt install Servos on frame. C) use M2x6 Socket Head Bolts fix the balls on the Servo Horn.
- Page 10 Step 7. Wire Up Elevator Rudder Pitch Gyro Aileron Receiver With Sponge Battery With Sponge Throttle a) Install Reciver, Battery Gyro and other eletronic device. b) Refer to the Radio manual, connect all the eletronic devices. Step 8. Phasing Block Wash Out Arm Main Grip Paralle...
- Page 11 Step 9. Radio Setting Data Pitch Curve Roll Loop Autorotation Hovering 100% 100% 100% 100% 100% Throttle Curve Hovering Loop Roll Autorotation 100% 100% 100% 100% 100% Pitch Setting Swash Type Setting Hovering Autorotation Futaba Loop Roll Swash Type 7 8.5~9 High Pitc 9~10 9~10 S3 120º...
- Page 12 Step10. Set Up a) Turn on the radio and set throttle position to middle position for 0 deg. All horn distance should be set to 11mm from centre. Use the sub trim in radio programe to adjust each servo to get control horn to the right angle. Note: The 2 push pull link rod are not necessarily parallel.
- Page 13 Next adjust the links from T arms to Swash Plate Wash Out to level Swash Plate. A compass swash plate tool can be used here as a guide. Swash Plate Horizontal d) Set the Wash Out Arm horinzontal. 06-0501...
- Page 14 Summary f) Set main blade to Link to cut in 0 deg pitch. d) Level the Wash Out Arm e) Set Mixing Arm c) Level the 2 deg to Flybar. Swash Plate a)Servo Horn 180 deg b)Level the T Arm and Crank Arm Linkage Length Linkage Length...
- Page 15 25mm(0.984inch) 59mm(2.31inch) 41mm(1.61inch) 41mm(1.61inch) 81.5mm(3.2inch) 85.5mm(3.37inch) 168mm(6.63inch) 85mm(3.35inch) Linkage Length: Main Blade Holder to Mixing Arm: 25mm(0.984inch) Fly Bar Control Arm to Wash Out Arm: 41mm (1.61 inch) x2 Mixing Arm to Swash Plate Inner Ring: 59mm(2.31inch)x2 Swash Plate Outer Ring to T Arm: 41mm(1.61inch)x2 T Arm Left to Servo Horn: 168.5mm(6.63 inch) x2...
- Page 16 Step 11 Canopy & Final Check Canopy Window Canopy Damper M2.5 x6 Self Tapping Bolt Canopy Body Note: Clean the Canopy with detergent or soap water before attaching the Decal on the canopy. When Main Blades turn clockwisely, the Tail Blades should turn Clockwisely too. If not, the Belt might be installed in wrong direction.
