Compass Knight 50 Instruction Manual

Hide thumbs Also See for Knight 50:
Table of Contents

Advertisement

Quick Links

Download this manual
Plastic Version

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Knight 50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Compass Knight 50

Summary of Contents for Compass Knight 50

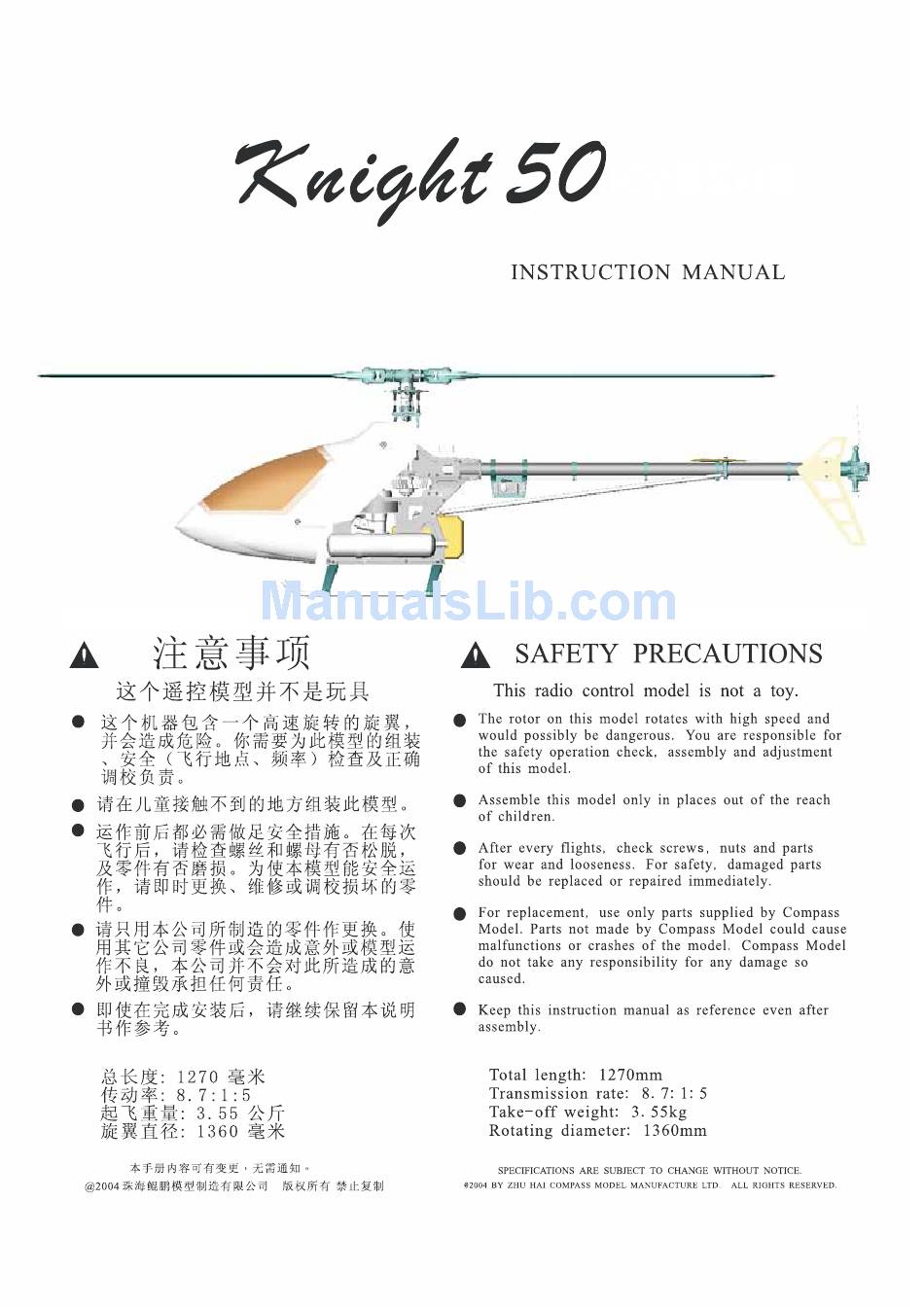

  • Page 1 Plastic Version...

  • Page 3: Table Of Contents

    Index of Manual Step 1. Landing Gear --------------------------------------------------------------- Page 4 Step 2. Paddles -------------------------------------------------------------- Page 5 Step 3. Front Servo Mount ---------------------------------------------------------------- Page 6 Step 4. Install the Engine ----------------------------------------------------------------- Page 7 Step 5. Tail --------------------------------------------------------- Page 8 Step 6. Fins and Boom Supporters --------------------------------------------------------- Page 9 Step 7.

  • Page 4: Step 1. Landing Gear

    Step 1. Landing Gear 3mm Washer M3 Nylon Nut M3x5 set screw M3x20 Socket head Bolt x 4 Skid Foot Skid Tube M3x5 Set Screw M3x20 3mm Washer M3 Nylon a) Use M3x20 Socket Head Bolts, M3 Nylon Nuts and 4mm Washer to fix the plastic skid foot on the body.

  • Page 5: Step 2. Paddles

    Step 2. Paddles M4x3 Set M3x3 Set M3x10 Set Screw x 2 Screw x 4 Screw x 2 a): Screw the two Paddles in opposite direction onto the Flybar untile the Flybar can be seen from the small hole on the Paddle. Flybar appares here Flybar appares here.

  • Page 6: Step 3. Front Servo Mount

    Step 3. Front Servo Mount M3x20 Self Tapping M3x10 Self Tapping Bolt x 6 Bolt x 4 M3x20 Self Tapping Bolt Front Servo Mount a) Use M3x20 Self Tapping bolts to fix the Front Servo Mount on the body. Servo Tray M3x10 Self Tapping...

  • Page 7: Step 4. Install The Engine

    Engine Set Fly Wheel wrench Washer from Engine Set 05-9001 Engine Tool Compass Engine Tool is need to tight Engine Mount the enine on the Fly Wheel. Note: LOCKTITL SHOULD BE USED IN ALL SOCKET HEAD BOLTS HERE. Carburater M3 washer...

  • Page 8: Step 5. Tail

    Step 5. Tail M3 Nylon Nut M3x12 Socket head Bolt x 2 Tail Link Supporter M3 Nylon Nut Gear Box Set M3x12 Socket Head Bolt Belt Rudder Servo Mount Insert the Tail Boom into the Gear Box Set until Belt go through the whole Boom.

  • Page 9: Step 6. Fins And Boom Supporters

    Step 6. Fins and Boom Supporters M3x30 Socket M3x40 Socket M3x15 Socket M3x20 Socket Head Bolts x2 Head Bolts x2 Head Bolts x2 Head Bolts x2 M3 Nylon M3 Washer Nut x8 Tail Fin Vertical Boom Supporter M3 Nylon Nuts M3 Washer M3x15 Socket Head Bolt...

  • Page 10: Step 7. Servos

    Step 7. Servos M2x6 Socket M2.5x16 Self Head Boltx5 M2.5 Washer x20 Tapping Bolt x20 M2.5x16 Self Tapping Bolt M2.5 Washer Servo Installation Bolts come with the Servo Servo Horn M2x6 Socket Head Link Ball Bolt Servo Horn a). Use M2.5x16 Self Tapping Bolts and Washer install Servos on the heli Body.

  • Page 11: Step 9. Radious Stay Arm

    Step 8. Wire Up Elevator Gyro Pitch Receiver With Sponge Rundder Cushion Aileron Battery With Sponge Cushion Throttle a). Adhere Gyro on the Gyro Mount, detail refer to Gyro's manual. b). Use Nylon Bandage to tie Battery with Sponge Cushion on the front nose. c).

  • Page 12: Pitch Curve

    Step 10. Radio Setting Data after installing Servo, Gyro and other eletronics. Set up your radio with following data. Pitch Curve Throttle Curve Pitch Setting Swash Type Setting Hovering Autorotation Futaba Loop Roll Swash Type High Pitch 9~10 9~10 S3 120º Hovering 5~5.5 Aile Elev.
  • Page 13 Inner Arm Horizontal Outer ARm c) next adjust the two side L arm links to swash plate to level swash plate. a compass tool can be used here to level swash plate. Main Shaft Swash Plate Compass Swash Plate Tool 06-0501...
  • Page 14 d) set the wash out control arm 90 deg to the main shaft. Washout control arm Main Shaft Swash Plate e). Set the mixing arm 3 deg. downwards to flybar so that the pitch link is 90 deg to the mixing arm. Fly Bar Mixing ARm f).
  • Page 15 Summary Link to cut in Linkage Length Linkage Length All linkage length are measured in this way. In case you change ball links, you can set the same measurement.
  • Page 16 27mm (1.06inch) 68mm (2.67inch) 49mm (1.93inch) 67mm (2.63inch) 57mm (2.24inch) 99mm (3.9inch) 79mm (3.11inch) Linkage Length 27mm (1.06 inch) x 2: main blade holder to mix arm Linkage Length 49mm (1.93 inch) x 2: fly bar control arm to wash out control arm Linkage Lenght 68mm (2.67inch) x 2: mixing arm to swash plate inner ring Linkage Lenght 57mm (2.24inch) x 2: swash plate outer ring to L arm Linkage Lenght 99mm(3.90inch) x 2: L arm to Horns of outer servos...

  • Page 17: Step 12. Canopy Mount

    Step 12 Canopy Mount M3x15 Set Screw Canopy Mount M3x15 Set Screw Use M3x15 Set Screws to install the 4 canopy mount on the heli body so that later the Canopy can be installed. Reminder : The Bolts connecting the Main Grips to Spindle are normally Not Locktitled when out of box.

  • Page 18: Step 13 Canopy & Check Turning Direction

    Step 13. Canopy & Check Turning Direction Canopy Body Canopy Window Canopy Damper M2.5x 6 selftapping Bolt Note: Clean the canopy with Detergent or Soap Water before attaching the Decal on the Canopy. M3x8 Socket Head Bolt M3 Washer When Main Blade turn clock wise, the tail blade should turn clockwise too.
  • Page 19 ( ) 6 ( ) 1 ( ) 2 ( ) 7 ( ) 8 ( ) 3 ( ) 4 ( ) 5 ( ) 1 ( ) 8 ( ) 9 ( ) 2 ( ) 3 ( ) 4 ( ) 5 ( ) 9 ( ) 6...
