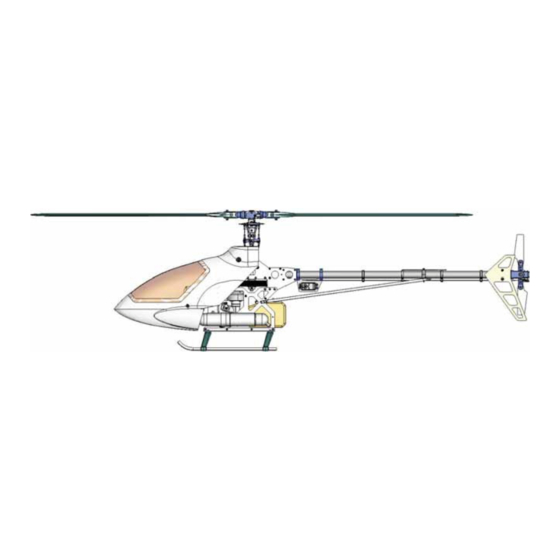

Compass Knight 50 Instruction Manual

Hide thumbs Also See for Knight 50:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Knight 50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Compass Knight 50

Summary of Contents for Compass Knight 50

  • Page 3: Landing Gear

    Landing Gear M3X16 SOCKET M3 NYLON NUT X4 HEAD BOLTS X 4 M3X3 SET SCREW X4 M3 FLAT WASHER X4 M3x16 Bolt x4 Step 1. Install the skid foot on the frame, watch out the direction. Step 2. Insert the skid tube into the skid foot, watch out the direction.

  • Page 4: Front And Top

    Step 4: Push the whole engine set from bottom of the frames up into the clutch bell. Turn the drive gear when tighting the M3x16 bolts tofix the engine mount on the frames. Adjust the bolts so that the driving gear can turn smoothly.
  • Page 5 Tail Set M3x8 Socket M3x16 Socket M3x38 Socket Head Head Bolts x 4 Head Bolts x 2 Bolts x 2 M3x30 Socket M3 Nylon Nuts M3 Plain Washer Head Bolts x2 M3x38 M3 Washer M3x8 M3 Nylon Nut M3 Nylon Nut M3 Nylon Nut M3 Nylon Nuts M3x30...

  • Page 6: Servo Installation

    Servo Installation M2.5x16 Self Tapping Bolt x 20 M2x8 Socket Head Bolt x 5 M2x8 M2.5x16 Self Tapping M2.5 Plain Washer x 20 M2.5 Washer Servo Nut Linkage Length Length Linkage Length 31mm x 2: main blade holder to mix arm Linkage Length 53mm x 2: fly bar control arm to wash out control arm Linkage Lenght 71mm x 2: mixing arm to swash plate inner ring Linkage Lenght 63mm x 2: swash plate outer ring to L arm...
  • Page 7 31mm 71mm 53mm 103mm 63mm 73mm Pitch Rudder Elevator Aileron Throttle 85mm Suggest use the third hole on the horn for Futaba servo. For JR horn, you might need to drill a hole 13.5mm from the center. Phasing block: when the one of the link balls on the swash plate inner ring is on the same line of the ball on the A arm, the main blade holder should be parallel to the boom.

  • Page 8: Pitch Curve

    Pitch Curve Engine Curve Pitch Setting Swash Type Setting Hovering Autorotation Futaba Loop Roll Swash Typ High Pitch 9~10 9~10 8.5~9 S3 120º Hovering 5~5.5 Aile Elev Pitch Low Pitch -8.5~9 Above data just give some general idea of setting. It varies by engine,blades,muffler and pilot's style. Adjust by actual flight.
  • Page 9 Horizontal Horizontal Horizontal Horizontal Check: Tail Balance: Heli Tail rotating at very high speed, regular check the balance of the tail is important for safe flights. Antenna: It is strongly suggest not place the Antenna around boom supporter, boom or other metal parts.
  • Page 10 ASSEMBLY OF THE CABIN After assembling when the main rotor rotates clockwise view from tail blade should rotate clockwise view when the heli head on your left and the tail on your right...
  • Page 11 ( ) 6 ( ) 1 ( ) 2 ( ) 7 ( ) 8 ( ) 3 ( ) 4 ( ) 5 ( ) 1 ( ) 8 ( ) 9 ( ) 2 ( ) 3 ( ) 4 ( ) 5 ( ) 9 ( ) 6...
