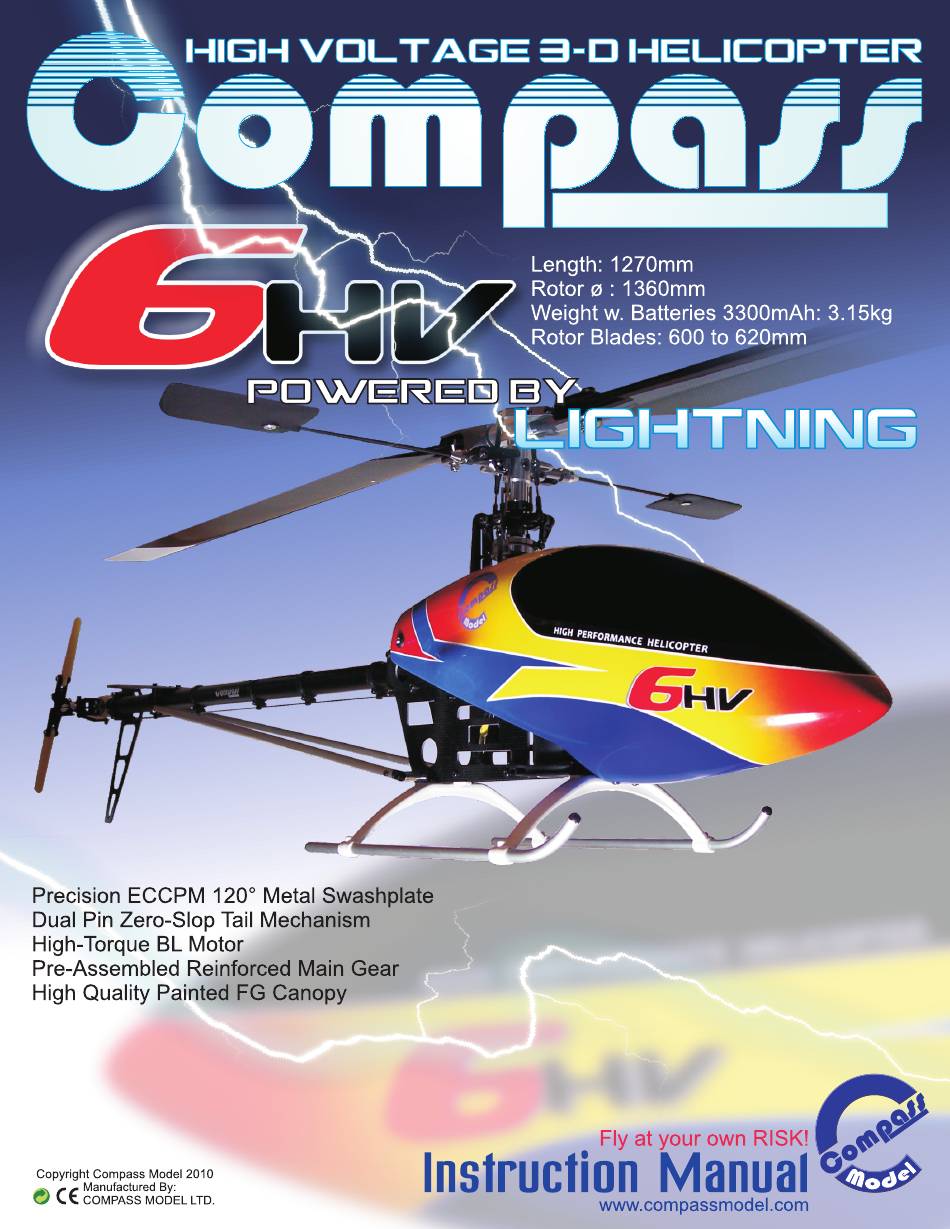

Compass Atom 6HV Instruction Manual

High voltage 3-d helicopter, length 1270mm, rotor o: 1360mm, weight w. batteries 3300mah: 3.15kg, rotor blades: 600 to 620mm, precision eccpm 120 degrees metal swashplate, dual pin zero-slop tail mechanism, high-torque bl motor, pre-assembled reinforced m
Hide thumbs Also See for Atom 6HV:
Hello, I am your AI assistant. How can I help you?
Table of Contents

Advertisement

Quick Links

Always use proper safety procedures when using RC aircraft

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Atom 6HV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Compass Atom 6HV

Summary of Contents for Compass Atom 6HV

  • Page 1 Always use proper safety procedures when using RC aircraft...

  • Page 2: Ama Information

    Model Ltd. assumes no liability for damage that could occur from the assembly and/or use/misuse of this product. Although the Atom 6HV is powered by a quiet, smooth-running electric motor, it should be assembled and operated with the same care as its larger glow engine counterparts. When operating your Atom 6HV, please exercise caution and safety.

  • Page 3: Guidelines For Safe R/C Helicopter Flight

    Great care has been taken in filling the bags with the correct quantity of parts and hardware for each section. However, occasional mistakes happen. In the event that you find a parts shortage or are in need of technical assistance, please contact your local Compass Model parts dealer.
  • Page 4 In The Box This model is packed according to assembling steps. Do not open all the bags at one time. Open only one bag for each step of assemply when building. Step 1 Step 2 Step 3 Tail Set Step 4 Step 5 Rotor Set Long Item...

  • Page 5: Landing Gear

    Servo M2.5x10 Self Tapping Bolt X 16 M2 5X10 Self Tapping Bolt Servo 2.5mm Washer X 16 Plastic Spacer x 4 2 5mm Washer Servo Spacer The Servo installation is done without the supplied Servo Rubbers. M2.5x10 Self Tapping Bolt This Servo is installed in between the 2 frames.
  • Page 6 Boom & Tail Rotor Crimping Belt damages the Tensile Cords and will result in premature failure. M3 Washer x4 Be careful not to over tighten the M3 Nylon Lock Nut x10 Bolts when attaching the Tail Rotor Blades. The Tail Blades should be able to move with a slight amount M3x14 Cap M2.5x6 Cap Head Bolt x2...
  • Page 7 Main Gear Lift the Main Shaft Collar upwards and secure to the Main Shaft by slightly Main Shaft Clamp has to br M3 Nylon Lock Nut x1 tighten the Lock Screw. It is necessary mounted below the Bearing to align the Lock Screw through the Block.
  • Page 8 Rotor,Washout & Swashplate M2.5 x8 Self Tapping Bolt X 4 M3x4 Set Screw x6 In this step, push the Flybar through the Flybar Collar, Flybar Holder, and M4x4 M4x4 Set Screw x2 Flybar Control Arm. Using set screws, fix the Arms and Collars onto the Set Screw Flybar.
  • Page 9 Equipment illustration Aileron Pitch Elevator Vecro Tape 12S Battery Rudder Brushless Motor Receiver ES C Linkage The following Linkage lengths indications are basic values. PLEASE BE AWARE THAT THEY COULD VARY depend on used Servos and Arms. Some fine adjustments are still needed in following setup steps. Please cut away 1.5mm from each Ball Link.
  • Page 10 25mm to the center. Compass Model Ball Links are build up on Do not apply plier to resize Ball Links. Pliers could the tight side this allows you to adjust them cause hidden damage to Ball Links and result in to your personal needs.
  • Page 11 06 0501 Swash Plate Tool Horizontal Horizontal Level the Swashplate by adjusting the links from the Servo Arms to the Swashplate. Use a Compass Swashplate Tool as guide. Then set level the Washout Arms. 0 Pitch ° Mixing Arm By adjusting the Links between Swashplate and Mixing Arms set the Mixing Arms to a 3° downward position.
  • Page 12 7° 7° Use this Hole for Tail Link Ball With Rudder Stick in middle position, set the Rudder Servo Arm at 90° to the Tail Control Link. Set the Tail Blades to 7° Pitch. Servo Direction Check Turn the Transmitter on, your position has to be right behind the helicopters Tail. Make sure that the Swashplate Mode is set to CCPM 120°.

  • Page 13: Rotor Direction

    Canopy Canopy M2.5x6 Self Tapping Bolt X 2 Use AB Glue Drill a 6.5mm D Hole here Canopy Insert M2.5x6 Self Tapping Bolt Place the Canopy onto the Frames and mark the right position of the Canopy Inserts. Apply AB Glue to fix the Canopy Insert onto the canopy.
  • Page 14 Team Tips General: The Ball Links on the 6HV need to be resized. Step 3 It is very important to resize the Ball Links for smooth travel, especially on the tail; because issues like tail wag, sluggish tail, or inconsistent Piro-rate will occur. Step 4 It is vital not to over tighten the Main Gear Bolt, or it can cause the Autorotation Gear to slightly warp.
  • Page 16 COMPASS MODEL (HK) LIMITED www.compassmodel.com...

  • Page 17: Parts List

    Use the part number to find the ORDER number on the list Only use ORDER number for your parts order Copyright @Compass Model 2009 As we continue to improve our products, this part list may not reflect all recent product amendments.
  • Page 18 02-5131 91 0003 02 0118 07 0106 79 0308 61 4083 02 0113 80 0428 80 0322S 02 0109 97-0920 02 0110 60 8165 02 0133 63 8165 82 821003 80 0206S 82 5131 02-0132F 02 0701 79 0510 60 8 65 80 0310 91 0004 80 0304...
  • Page 19 Part No. Part Description Order No. Order Description Qty, 02-0109 Delrin Dampener 8mm 02-0109 Delrin Dampeners 8mm 2 pcs/bag 02-0110 02-0110 Spindle Washer 8mm Spindle Washers 8mm 2 pcs/bag 02-0113 Spindle Shaft 8mm 02-0113 Spindle Shafts 8mm 2 pcs/bag 02-0118 Flybar Holder Collar 02-0118 Flybar Holder Collars (Rotor Hub)
  • Page 20 61 5134 80 2506 98 1800B 05 0231 02 0262 82 5808 82 5804 02 0229 02 0250 61 5134 81 0305 02 0214 05 0227 80 2506 90 0201 02 0209 60 4094 63 4094 80 0208 02 0225 82 3402 02 1211 80 0208S...
  • Page 21 Part No. Part Description Order No. Order Description Qty, 02-0205 Tail Blade Link 02-0205S Tail Blade Links w, Pin 2 pcs/bag 02-0209 Tail Rotor Hub 02-0209 Tail Rotor Hub 1 pcs/bag 02-0213 02-0213 Tail Pitch Slider Tail Pitch Slider 1 pcs/bag 02-0214 02-0214 Tail Shaft...
  • Page 22 02 0601 61 2562 80 2505 02 0519G 02 0503G 02 0535 02 0532 60 4083 80 0206S 80 0206S 07 8410 80 2514 06-0410S 02 0518 05 0606 80 2510 07-0623 91 0003 07 4501 80-0327 7 0306 60 12215 79 0306 62 121816 07 4603...
  • Page 23 Part No. Part Description Order No Order Description Qty, 02-0503G Washout Base (grey) 02-0503G Washout Base (grey) 1pcs/bag 02-0518 Washout Link 02-0518 Washout Links 2 pcs/bag 02-0519G Phasing Control Ring (grey) 02-0519G Phasing Control Ring (grey) 1 pcs/bag 02-0531S 02-0532 Bushing Bushing set (3 sizes) 6 pcs/bag...
  • Page 24 80 0308 07 0307 07 8302 60 8165 07 0806 07 4310 81-0404 05 0805 60 3095 07 0310N 80 0312 C-5026-540 06 0843 07 0907 02 1825 07 0812 02 0605G 60 10195 02 0805 07 0831R 81-0316 78 0308 07 0831L 02 0847 80-0325...
  • Page 25 Part No. Part Description Order No. Order Description Qty, 02-0605G Bearing block upper 02-0605G Bearing block upper set 1 pcs/bag 02-0805 Cross Member M3x30 02-0805 Cross Member set M3x30 5 pcs/bag 02-1805 Cross member set M3x30 02-1805 Cross member set M3x30 2 pcs/bag 02-0820 02-0820...
  • Page 26 02 0853 02 0810SG 07 0852P 80 0332 (07-0852) 82 3201 05 0825T 06 0823AB 06 0851 02 0823B 82 3201 02 0818 02 0826 02 0823A 80 0326 91 0003 02 0816T 95 2508 02-0814S 40 2660 02 0709 80 2508 40 2510 02 0813...
  • Page 27 Part No. Part Description Order No. Order Description Qty, 02-0701 Stainless link balls 02-0701 Stainless link balls 10 pcs/bag 02-0709 Ball Link 02-0709 Ball Links 10 pcs/bag 02-0810SG Thumb Screw (gold) 02-0810SG Thumb Screw set (gold) 4 pcs/bag 02-0813S 02-0813 Tail Boom Brace Connector Tail Boom Brace Connector set 4 pcs/bag...
  • Page 28 COMPASS MODEL (HK) LIMITED www.compassmodel.com...
