Compass Atom 6HV Instruction Manual page 8

5
Rotor,Washout & Swashplate
M2.5 x8 Self Tapping
Bolt X 4
M3x4 Set Screw x6
M4x4 Set Screw x2
M3 Nylon Lock Nut x1
M3x22 Shanked Bolt x1
Use Threadlock
See Page Team Tips!
Be sure to note the correct
direction of the Flybar Paddles
as shown in the diagram. It is
very important to insure that the
Paddles are in parallel to each
other, as well as to the Flybar
Control Arm Assembly.
See Page Team Tips!

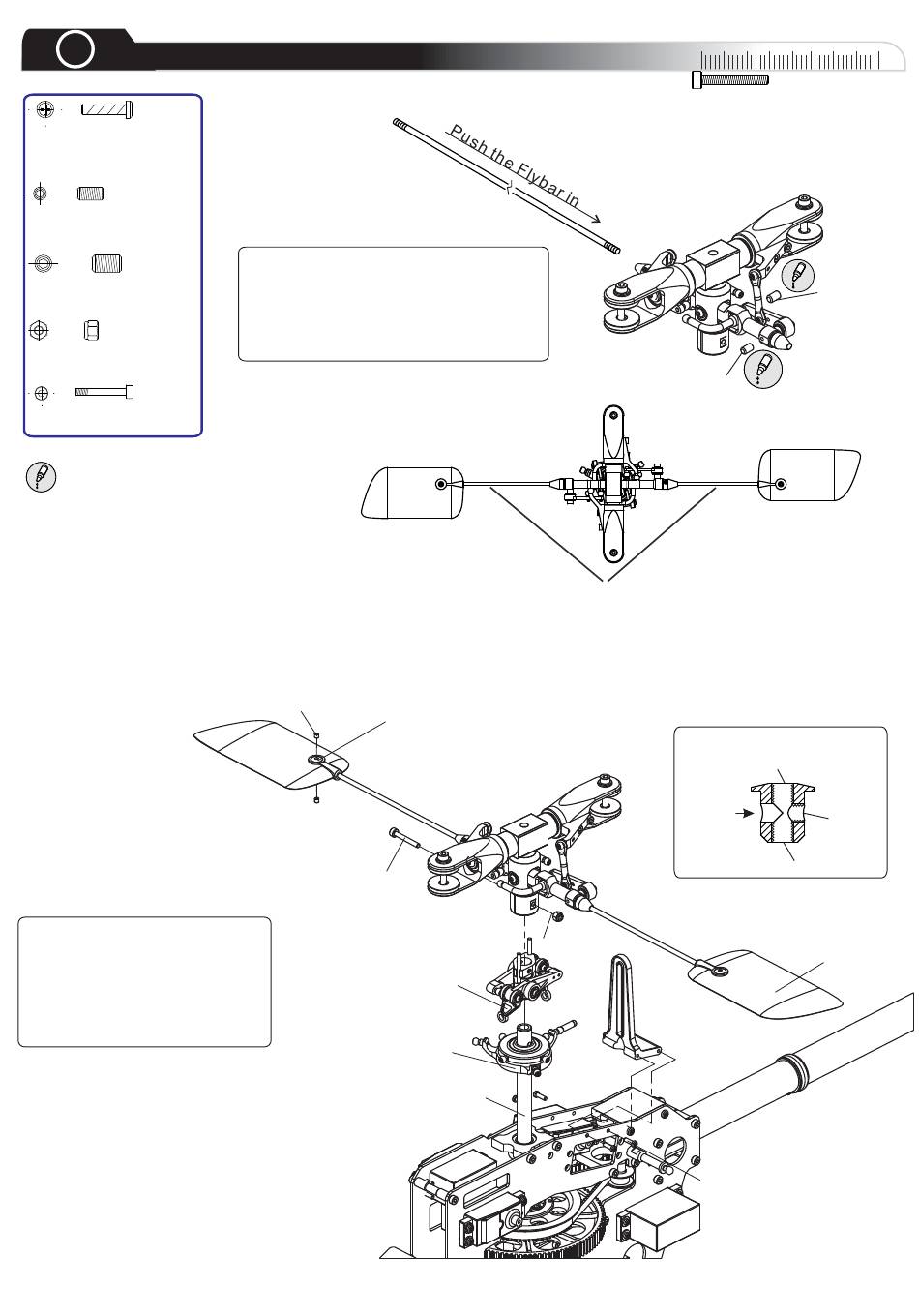

In this step, push the Flybar through
the Flybar Collar, Flybar Holder, and
Flybar Control Arm. Using set screws,
fix the Arms and Collars onto the
Flybar. Make sure that both sides of the
Flybar are of equal lengths.
M3x4 Set Screw
Paddle Insert
M3X22 Shanked Bolt
Washout Link
Swashplate
Adjust so that each side has exactly the same length
M3 Nylon Nut
Main Shaft
0 10
M3x4 Set Screw
Paddle Insert
Thread
Flybar
.
M2 5x8 Self Tapping Bolt
30
20 40
M4x4
Set Screw
Thread
Thread
Paddle
