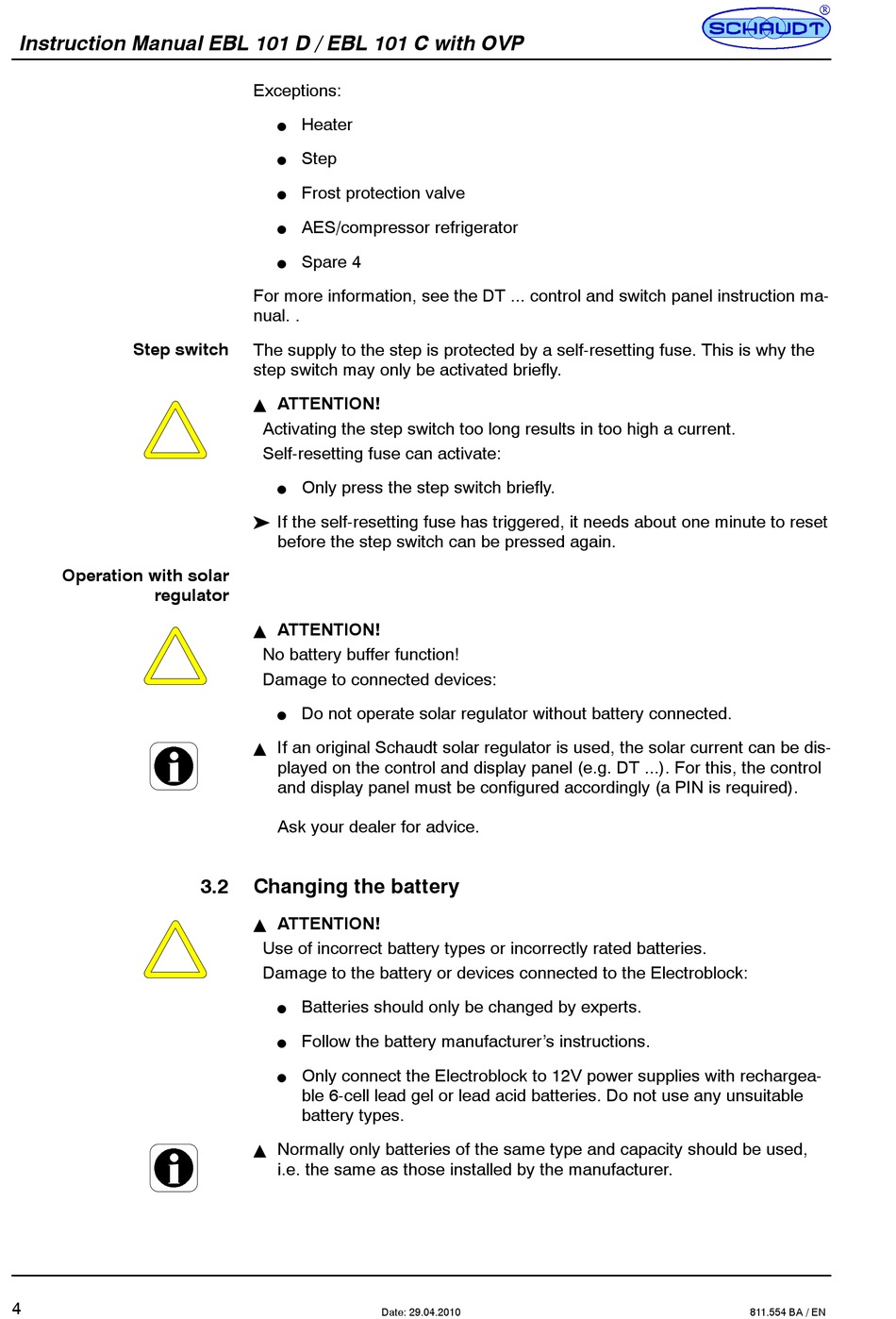

Instruction Manual EBL 101 D / EBL 101 C with OVP
Step switch
Operation with solar
regulator
4
Exceptions:
Heater
F
Step
F
Frost protection valve
F
AES/compressor refrigerator
F
Spare 4
F
For more information, see the DT ... control and switch panel instruction ma-
nual. .
The supply to the step is protected by a self-resetting fuse. This is why the
step switch may only be activated briefly.
ATTENTION!
Y
Activating the step switch too long results in too high a current.
Self-resetting fuse can activate:
Only press the step switch briefly.
F
If the self-resetting fuse has triggered, it needs about one minute to reset
before the step switch can be pressed again.
ATTENTION!
Y
No battery buffer function!
Damage to connected devices:
Do not operate solar regulator without battery connected.
F
If an original Schaudt solar regulator is used, the solar current can be dis-
Y
played on the control and display panel (e.g. DT ...). For this, the control
and display panel must be configured accordingly (a PIN is required).
Ask your dealer for advice.
3.2

Changing the battery

ATTENTION!
Y
Use of incorrect battery types or incorrectly rated batteries.
Damage to the battery or devices connected to the Electroblock:
Batteries should only be changed by experts.
F
Follow the battery manufacturer's instructions.
F
Only connect the Electroblock to 12V power supplies with rechargea-
F
ble 6-cell lead gel or lead acid batteries. Do not use any unsuitable
battery types.
Normally only batteries of the same type and capacity should be used,
Y
i.e. the same as those installed by the manufacturer.
Date: 29.04.2010
811.554 BA / EN
