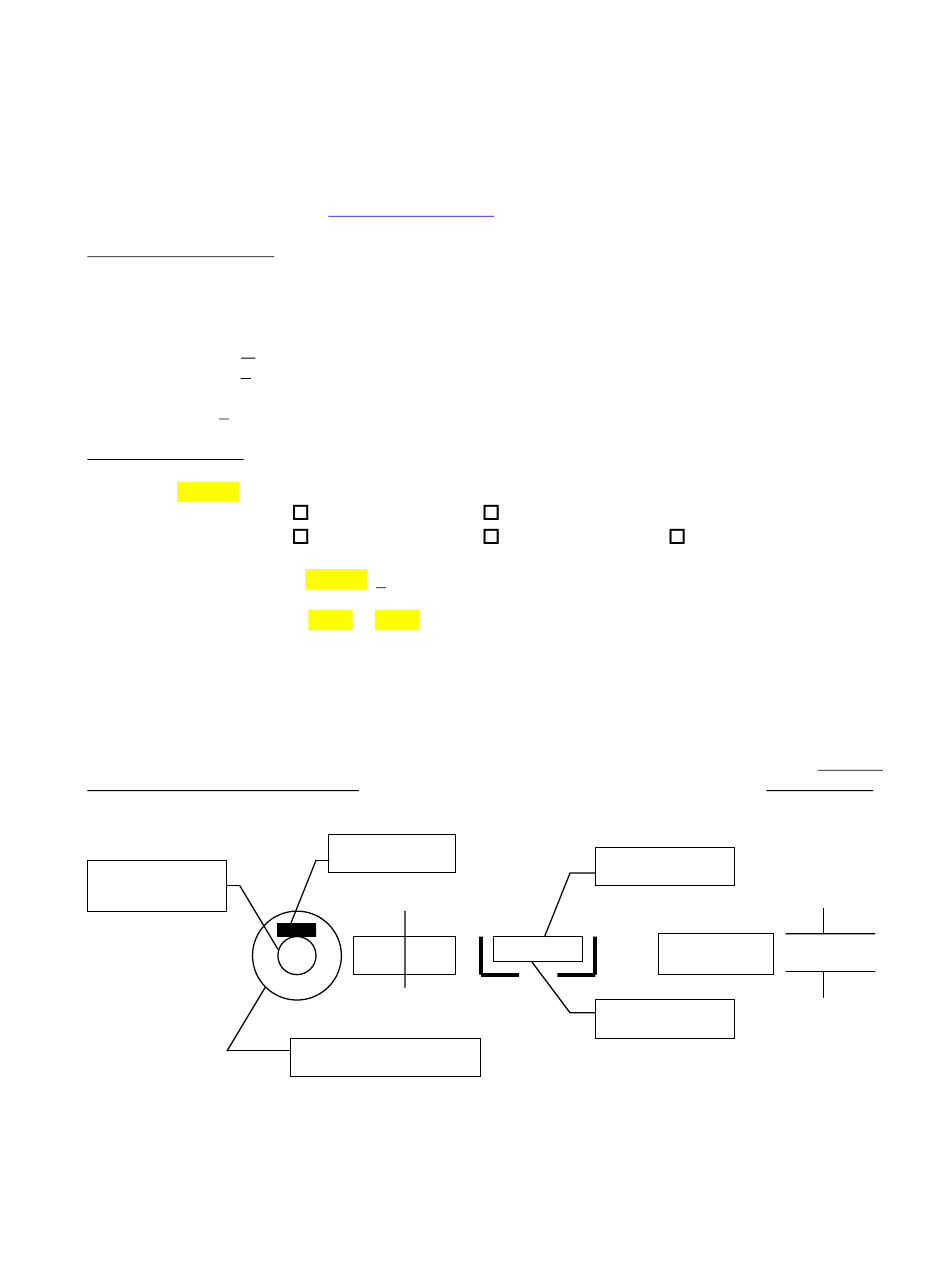

Order Form—Emission Filter
Ultramark Microplate Reader
Omega series filters (see website
Mechanical Specifications
Laminated construction edges sealed.
Enclosure: ABS plastic ring.
Diameter: 11.9 +0/-0.25mm without ring
14.0 +0/-0.25mm with ring
Thickness: 4.9 + 0.1mm without ring
4.9 + 0.1mm with ring
Clear aperture: 7.0+0.1/-0mm
TWFD: < Lambda / 10
Optical Specifications
Wavelength _______
(>450 nm)
50% Transmission Point:
Transmission Band: Minimum _____ to _____ nm @ > 80% Avg.
Blocking:
Edge slope:
Each filter whose construction incorporates absorbing glass shall be oriented with the absorbing glass facing the rim
of the aluminum ring. This orientation shall be clearly marked on the edge of the holder with an arrow. The head
shall point toward the absorbing glass. The filter shall be used in an orientation with light going in the direction of
the arrow. Thus, the light shall first strike the side furthest away from the absorbing (and possibly fluorescing) glass
and autofluorescing shall be minimized.
7.0 +0/-0.25mm
dia.
Omega Optical
www.omegafilters.com
Type (Check one)
BP (Bandpass)
DF (Discrminating)
_______ + 10mm
Minimum O.D. > 5.0 from cut-on to UV
Per Omega published data for EF series.
Filter marking
14.0 +0/-0.25mm dia.
FAX order form to:
3 Grove St. P.O. Box 573
Phone: 802/254-2690
Bio-Rad order form 410-0170 Rev. A
for more information)
WB (Wideband)
CF (Cut-on)
Reflective side
Absorbing side
Brattleboro, VT 05301
FAX 802/254-3937
EF (Edge)
4.9 + 0.1mm
