The following fields are visible on screen:
-
"Write": progress bar concerning the AFU file copy process from the computer that is
running application to the unit internal memory
-
"Read": progress bar concerning the AFU file reading process. Usually unseen due to
its rapidity.
-
"Info": while upgrading is in progress it shows information regading old and new
versions of the module to be upgraded.
IMPORTANT NOTE: You should not act on the system and you must never turn off the
equipment during the upgrading process, since this action may deprogram the module that you
are trying to upgrade. There is no pre-established upgrading order.

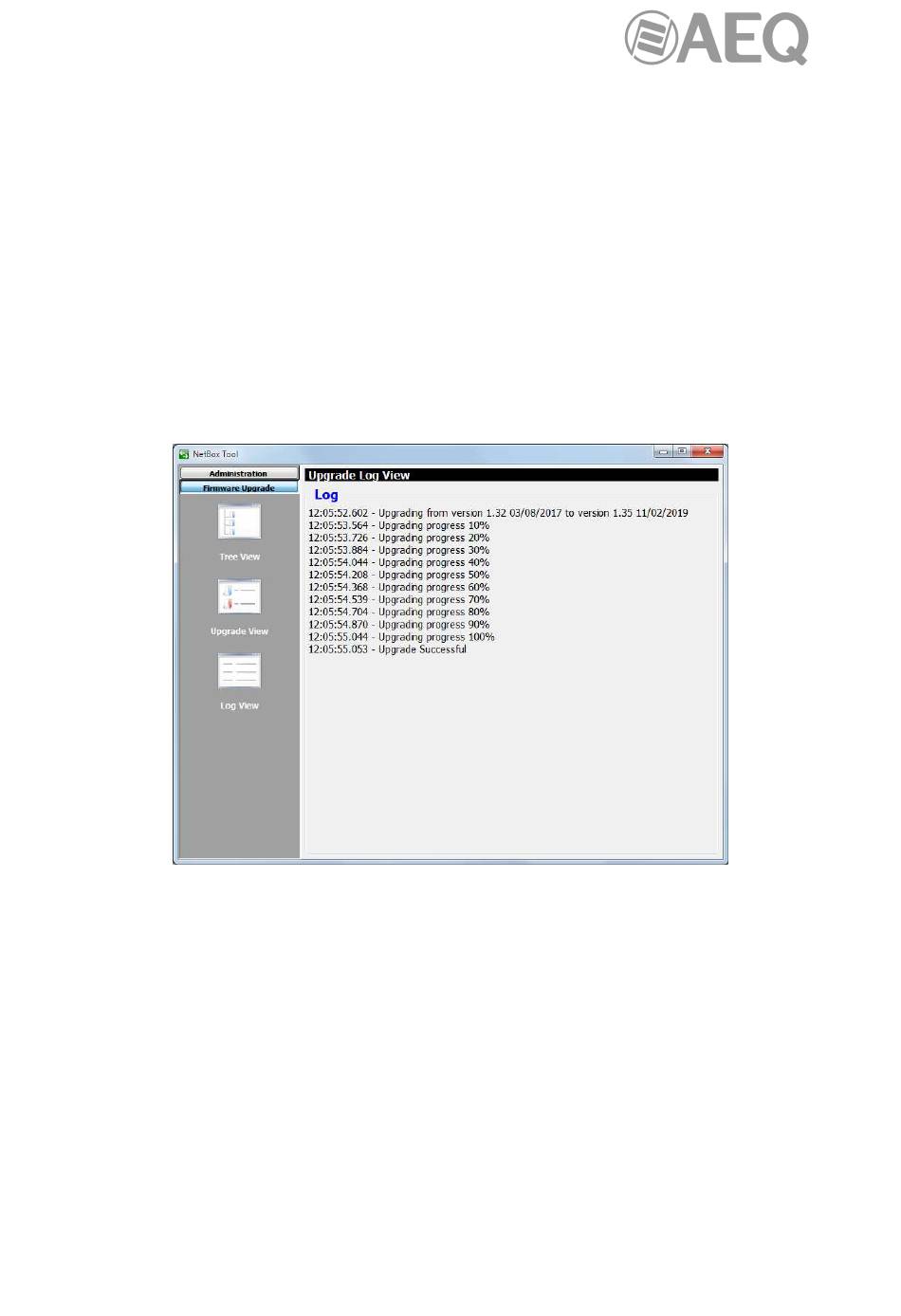

"Log View" submenu, accessed from the drop-down menu "Administration" by clicking on the
corresponding icon, represents the record containing all the actions associated with a particular
upgrade process as a sequence of independent events chronologically ordered and allows you
to check whether the process ended correctly or not. This submenu provides complementary
information to "Tree View" and "Upgrade View" submenus.
