Visual Radio" Submenu - AEQ NETBOX DSP User Manual

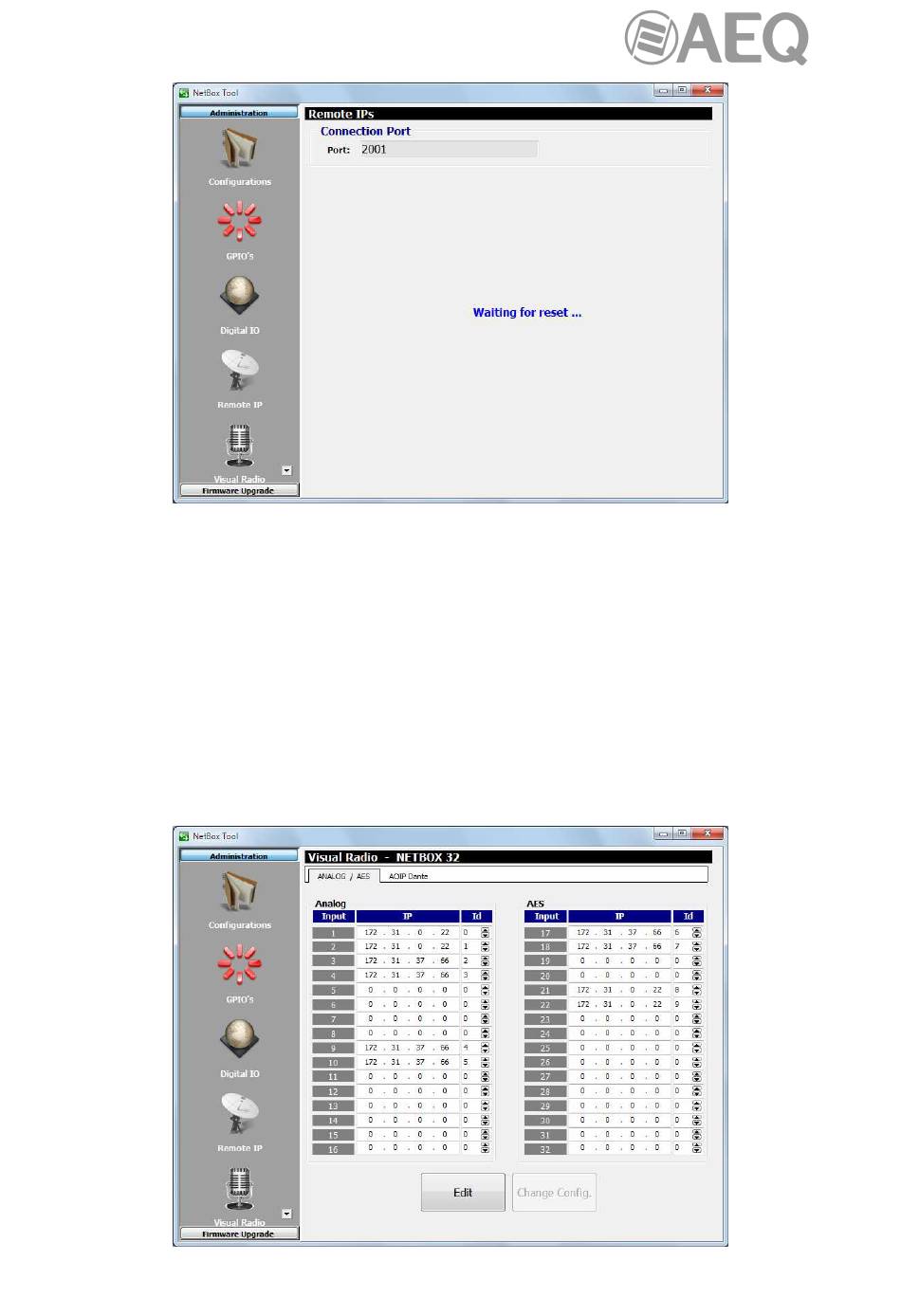

3.2.2.5. "Visual Radio" submenu.

"Visual Radio" submenu, accessed from the drop-down menu "Administration" by clicking on
the corresponding icon, allows you to configure the IP addresses where you want to send
vumeters of any of the inputs of the unit (those IP addresses must be in the same control
subnet). In order to use this functionality, you must purchase a user license (see section 3.2.2.1
of this manual).
This submenu appears only for NETBOX 8 and NETBOX 32 with CPU versions 1.xx.
In the case of NETBOX DSP this submenu is not shown.
In the case of NETBOX 32 there are 2 tabs that allows you to configure where to send
vumeters of the analog and/or digital inputs of the unit ("ANALOG / AES" tab) and/or vumeters
of the AoIP Dante inputs ("AOIP Dante" tab).
33
AEQ NETBOX 32 AD / NETBOX 8 AD / NETBOX DSP
Audio over IP multichannel interfaces
