Programming digital outputs 1 to 4 as S/PDIF.
-
In order to provide outputs to S/PDIF equipments, the programming procedure
described below adapts the levels and unbalances the signals by joining OUT1-, OUT2-
, OUT3- and OUT4- to their corresponding GND, so the signal is taken from each OUT+
to OUT- (or GND).

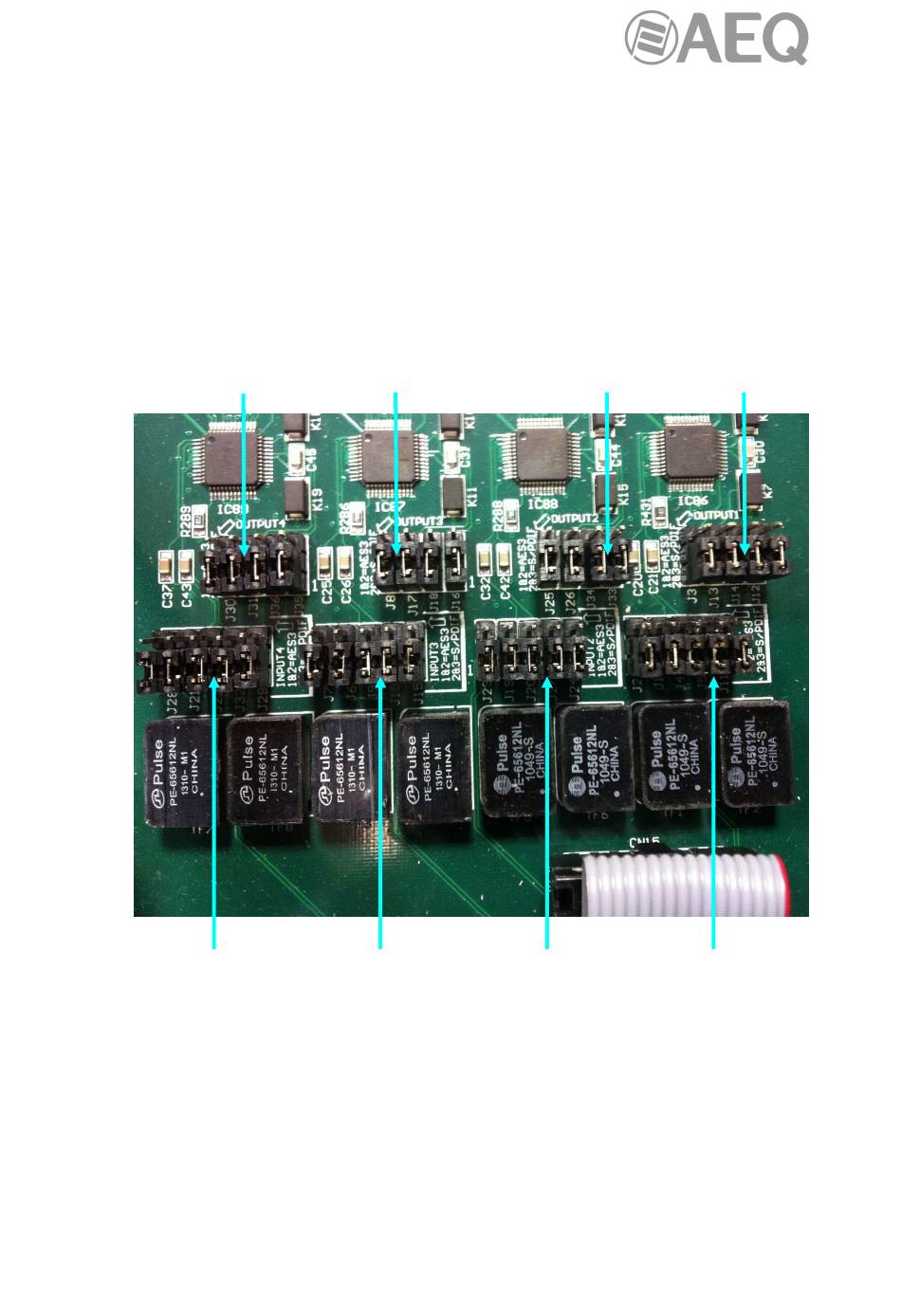

At the "1 TO 4 DIGITAL INPUTS AND OUTPUTS PROGRAMMING ZONE", you can
change the outputs one by one from AES/EBU to S/PDIF by moving the 4 jumpers
associated to each output from position 1-2 (down) to position 2-3 (up), as shown in the
following image:
Digital output 4
Jumpers J30, J31,
J36 and J35
Digital input 4
Jumpers J28, J21, J22,
J32 and J29
- Programming digital inputs 1 to 4 as S/PDIF.
In order to use S/PDIF inputs, the programming described above adapts levels and
unbalance signals by joining IN1-, IN2-, IN3- and IN4- to their associated grounds, so
each signal is taken from the corresponding IN+ and its GND (or IN-).
At the "1 TO 4 DIGITAL INPUTS AND OUTPUTS PROGRAMMING ZONE", you can
change the inputs one by one from AES/EBU to S/PDIF by moving the 5 jumpers
associated to each input from position 1-2 (down) to position 2-3 (up), as shown in the
previous image.
AEQ
Position 1-2: AES/EBU
Position 2-3: SPDIF
Digital output 3
Jumpers J8, J17
J18 and J16
Digital input 3
Jumpers J7, J6, J9,
J10 and J15
Position 1-2: AES/EBU
Position 2-3: S/PDIF
NETBOX 32 AD / NETBOX 8 AD / NETBOX DSP
Audio over IP multichannel interfaces
Digital output 2
Jumpers J25, J26,
J34 and J33
Digital input 2
Jumpers J23, J19, J20,
J27 and J24
Digital output 1
Jumpers J3, J13,
J14 and J12
Digital input 1
Jumpers J2, J1, J4,
J5 and J11
