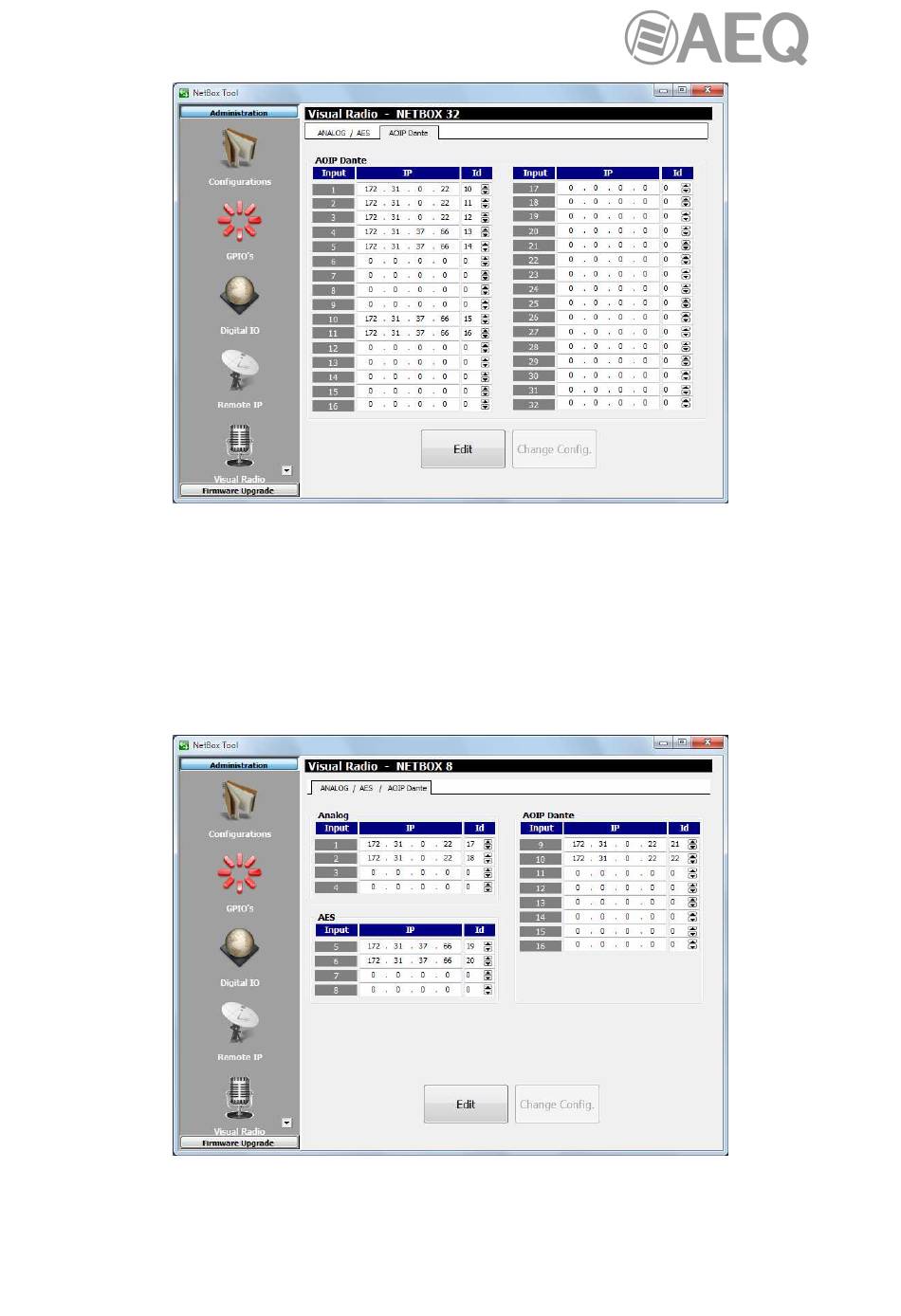

The previous images show an example where vumeters of the first 2 analog inputs, the fifth and
sixth digital inputs and the first 3 AoIP Dante inputs are sent to IP address 172.31.0.22, with "Id"
numbers 0, 1, 8, 9, 10, 11 and 12 respectively.
On the other hand, vumeters of the third, fourth, ninth and tenth analog inputs, the first 2 digital
inputs and the fourth, fifth, tenth and eleventh AoIP Dante inputs are sent to IP address
172.31.37.66 with "Id" numbers 2, 3, 4, 5, 6, 7, 13, 14, 15 and 16 respectively.
In the case of NETBOX 8 there is only one configuration section in order to indicate where to
send vumeters of the analog, digital and/or AoIP Dante inputs of the unit.
