Programming digital inputs 5 to 8 as S/PDIF.
-
In order to use S/PDIF inputs, the programming described below adapts levels and
unbalance signals by joining IN5-, IN6-, IN7- and IN8- to their associated grounds, so
each signal is taken from the corresponding IN+ and its GND (or IN-).

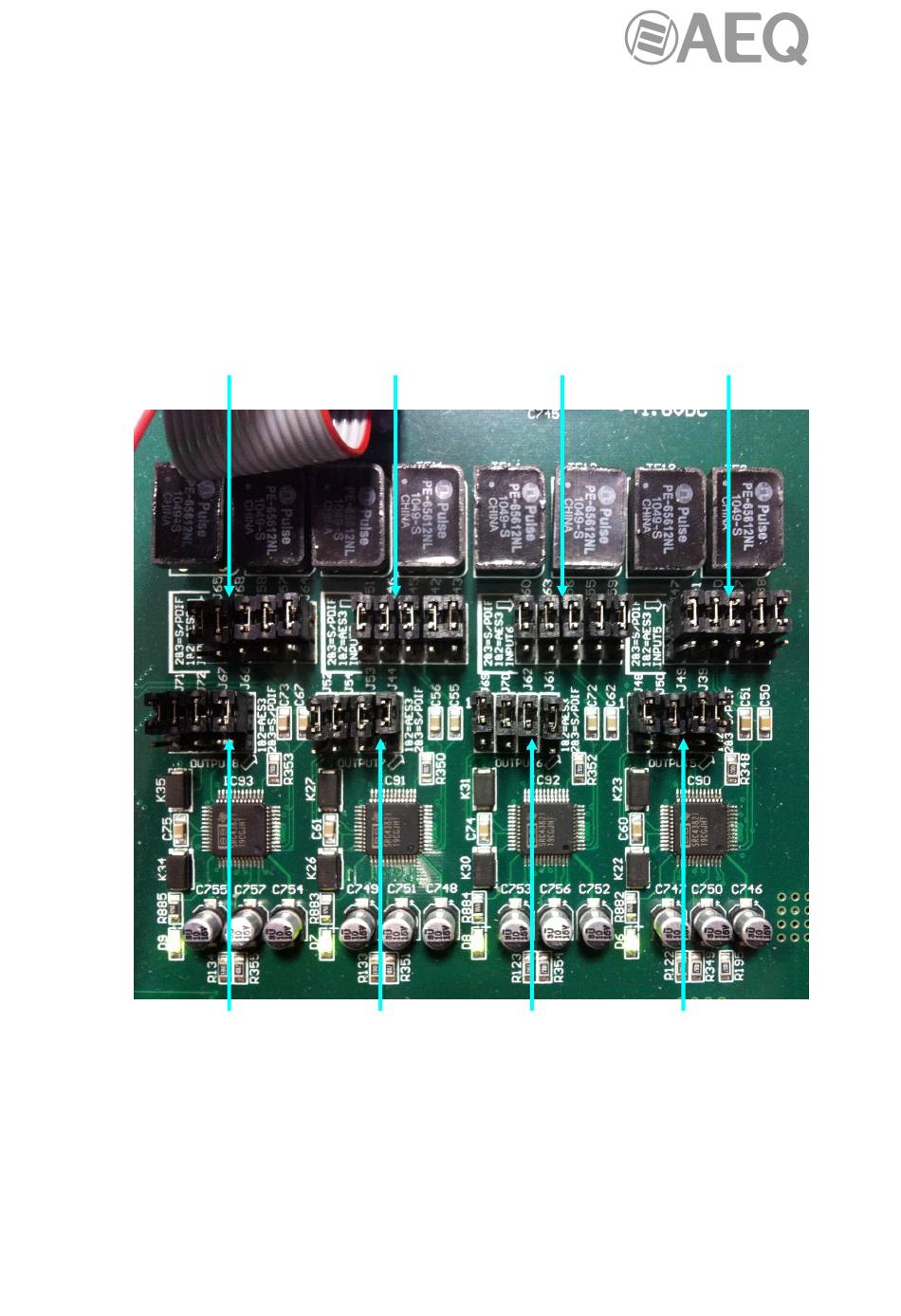

At the "5 TO 8 DIGITAL INPUTS AND OUTPUTS PROGRAMMING ZONE", you can
change the inputs one by one from AES/EBU to S/PDIF by moving the 5 jumpers
associated to each input from position 1-2 (up) to position 2-3 (down), as shown in the
following image:
Digital input 8
Jumpers J65, J68, J58,
J57 and J64
Digital output 8
Jumpers J71, J72,
J67 and J66
Programming digital outputs 5 to 8 as S/PDIF.
-
In order to provide outputs to S/PDIF equipments, the programming procedure
described above adapts the levels and unbalances the signals by joining OUT5-, OUT6-
, OUT7- and OUT8- to their corresponding GND, so the signal is taken from each OUT+
to OUT- (or GND).
AEQ
Position 1-2: AES/EBU
Position 2-3: S/PDIF
Digital input 7
Jumpers J51, J46, J45, Jumpers
J42 and J43
Digital output 7
Jumpers J52, J54 Jumpers J69, J70,
J53 and J44
Position 1-2: AES/EBU
Position 2-3: S/PDIF
NETBOX 32 AD / NETBOX 8 AD / NETBOX DSP
Audio over IP multichannel interfaces
Digital input 6
J60, 63, J56, Jumpers
J55 and J59
Digital output 6 Digital output
Jumpers J48, J50,
J62 and J61 J49 and J39
Digital input 5
J47, J41, J40,
J37 and J38
