Remarks:
-
Each of the eight digital audio inputs and outputs include two different audio channels,
according to AES 3 or SPDIF standard.
-
The first digital input (17-18) synchronizes NETBOX 32 with the source connected to it,
emitting an AES 3/SPDIF or AES 11 formatted stream.
-
The outputs can be used to provide synchronization to other devices that can extract it
from an AES 3 formatted audio stream.

2.1.2.3.1. Digital inputs/outputs jumpers configuration.

IMPORTANT NOTE: Access and configuration of the configuration jumpers require a previous
experience in installing and configuring computer or electronic cads. Don't open the unit if you
lack this experience in order to avoid risk of electrical shock or damages to the system.
Digital inputs and outputs are programmed by default as AES/EBU. If compatibility with
SPDIF equipment is required, you must open the unit and change the corresponding
configuration jumpers.
- Opening the unit.
It's VERY IMPORTANT to turn first the equipment off and disconnect the power supply
cable. Remove the 12 screws located at the top cover. Pull up from the top cover and
remove it.

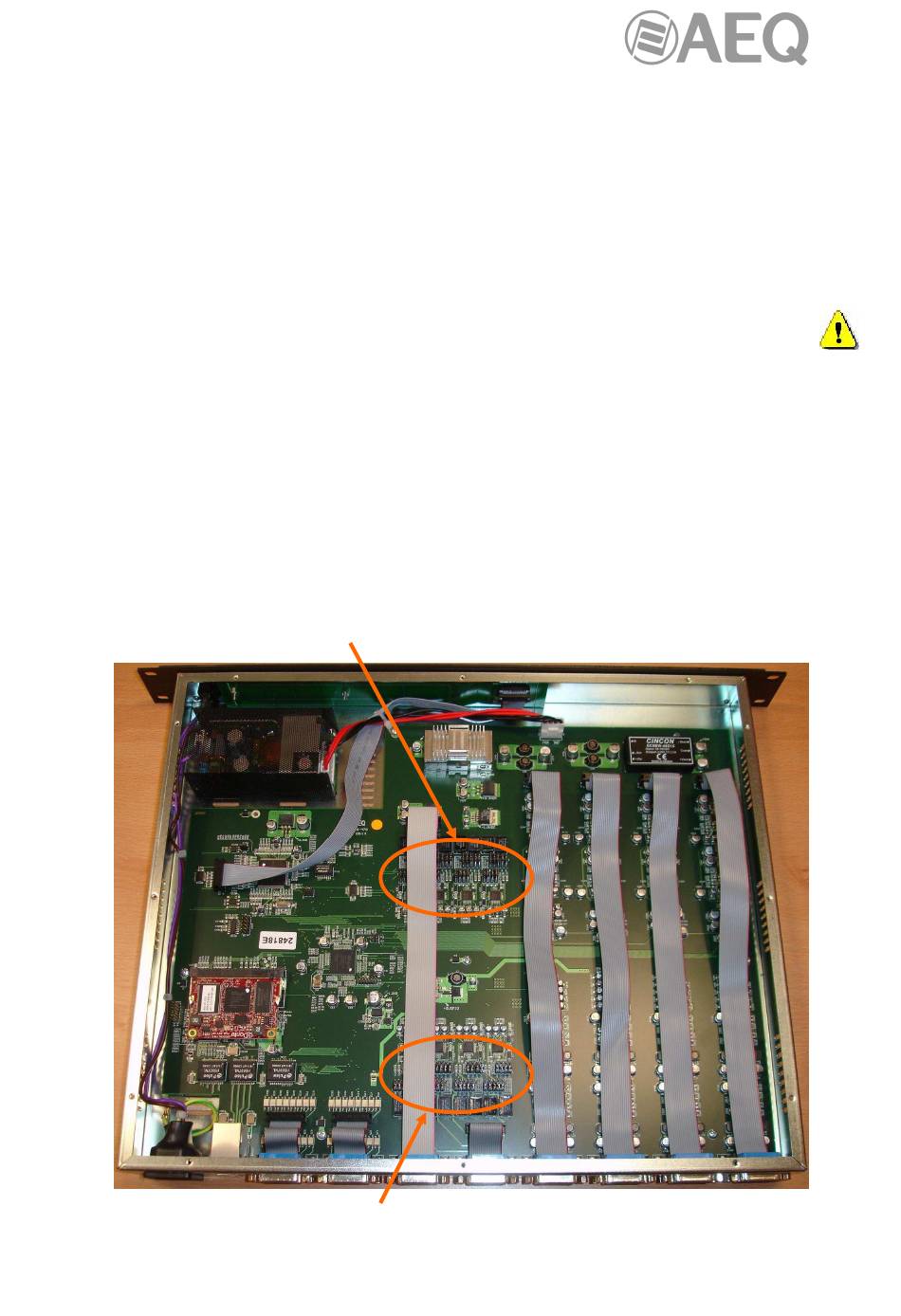

- Finding the jumpers location.
Place the unit with the connectors facing towards you and recognize the following zones
inside it:
5 TO 8 (25 TO 32) DIGITAL INPUTS AND OUTPUTS
PROGRAMMING ZONE
1 TO 4 (17 TO 24) DIGITAL INPUTS AND OUTPUTS
PROGRAMMING ZONE
