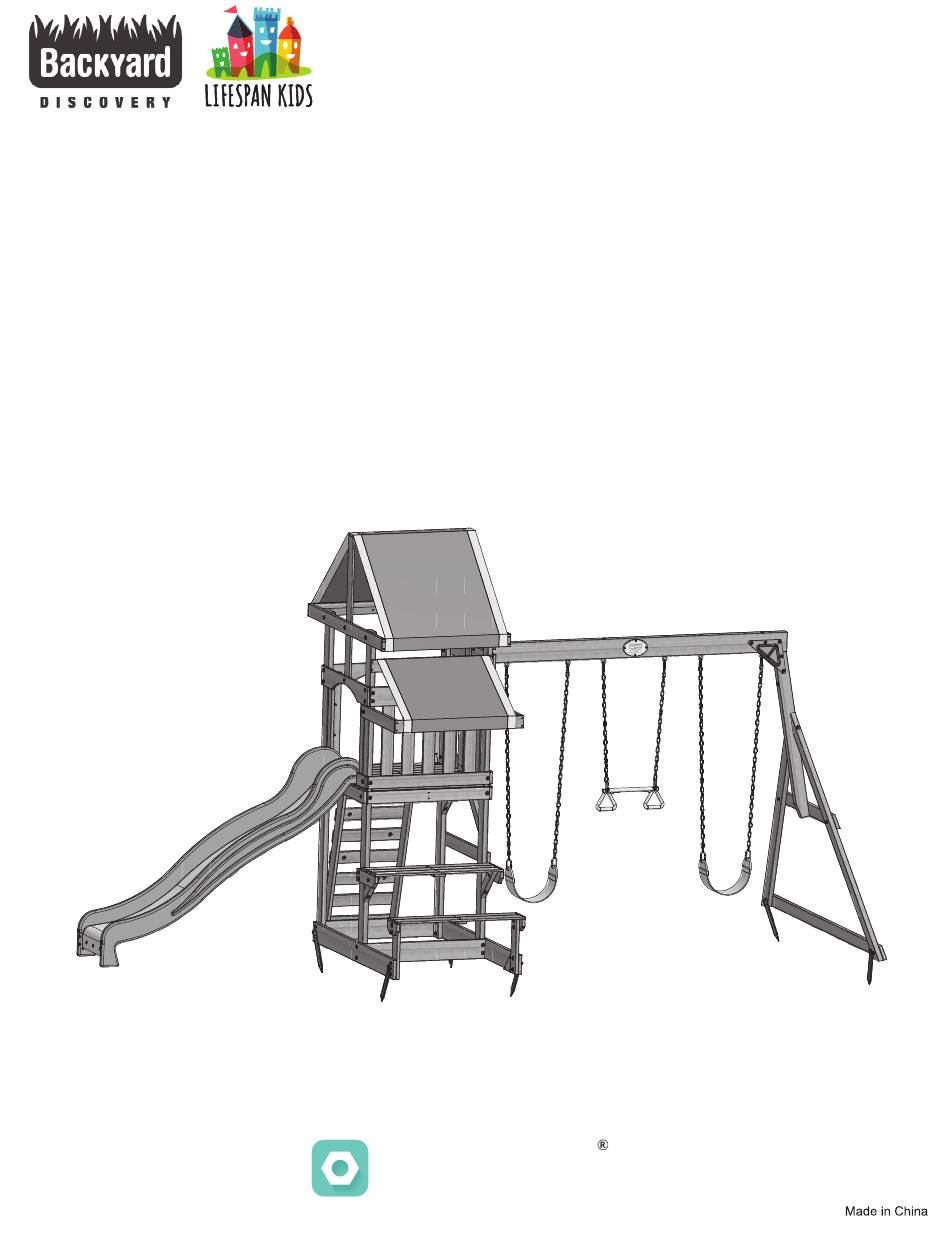

TUCSON
PLAYCENTRE
BOOKLET INCLUDES:
• Owner's Manual
• Frequently Asked Questions
• Assembly Instructions
• Warranty Information
Save this assembly manual for future reference in the event that
you need to order replacement parts.
Free BILT Intelligent Instructions
Download on https://biltapp.com/
Available on Apple and Google Play

Advertisement

loading
Need help?

Need help?

Do you have a question about the TUCSON PLAYCENTRE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Backyard Discovery TUCSON PLAYCENTRE

Summary of Contents for Backyard Discovery TUCSON PLAYCENTRE

  • Page 1 TUCSON PLAYCENTRE BOOKLET INCLUDES: • Owner's Manual • Frequently Asked Questions • Assembly Instructions • Warranty Information Save this assembly manual for future reference in the event that you need to order replacement parts. Free BILT Intelligent Instructions Download on https://biltapp.com/ Available on Apple and Google Play...

  • Page 2: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS PURPOSE This product is intended for outdoor, domestic use only. It is not suitable for commercial or medical use. DANGER FOR CHILDREN  WARNING! No eating while using the product  This product may only be used with adult supervision at all times. ...

  • Page 3: Safety Instructions

     In certain areas during winter, snow buildup and the low temperatures can damage the product. It is recommended to remove snow buildup and to store the product indoor.  We strongly recommend visual inspections every 3 months to insure the integrity of the entire product. Replace any parts as necessary.
  • Page 4 Consumer Information Sheet for Playground Surfacing Materials The US Consumer Product Safety Commission (CPSC) estimates that about 100 000 playground equipment- related injuries resulting from falls to the ground surface are treated annually in US hospital emergency rooms. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries, and have the potential to be fatal, particularly when the injury is to the head.
  • Page 5 WOOD ADVICE Our products are manufactured from premium timber. Great care is taking in selecting, machining and treating the timber before it is sold to you. 1. Inspect wood parts monthly. The grain of the wood sometimes will lift in dry periods causing splinters to appear.
  • Page 6 • The swing frame must not be installed directly on cement, asphalt, or any other hard surface. • Your swing frame must be attached on a flat horizontal surface with a minimum of 2m between it and any structure or obstacle such as a fence, garage house, tree branches, cloths lines, or electric cables. For more information: http://www.lifespankids.com.au/natural-timber...
  • Page 7 10. The end beam is not straight up and down. Why not? This is normal. Backyard Discovery designs playsets this way to ensure the strongest structure possible. The slight angle adds strength and reduces rocking and twisting.

  • Page 8: Tools Required For Installation

    Tools Required for Installation: (These are the tools that are generally required for assembly of our outdoor products. These tools are not included with the outdoor product purchase.) (Square) (Level 24") (Tape Measure) (Rubber Mallet - Optional) (Claw Hammer) (Cordless Drill or (Phillips &...
  • Page 9 Basic Setup Dimensions Place the set on level ground, not less than 6 ft [2 m] from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines, or electrical wires. 17'-7 3/8" [5.4 m] [1.8 m] Safe Play Zone General Information: Your set has been designed and...

  • Page 10: Parts Identification

    Parts Identification Wood Components (NOT TO SCALE) E1 - FORT UPRIGHT - W101519 1 3/8"x3 3/8"x89 1/2" (36x86x2273) E2 - FORT UPRIGHT - W101520 1 3/8"x3 3/8"x89 1/2" (36x86x2273) E77 - ANGLE BRACE - W100991 1 3/8"x3 3/8"x74 3/8" (36x86x1890) F1 - ANGLE BRACE - W101630 1 3/8"x2 3/8"x18 1/8"...
  • Page 11 Parts Identification Wood Components (NOT TO SCALE) H5 - PICNIC TARP SUPPORT - W101542 1"x3 3/8"x24 1/2" (24x86x622) H6 - WALL SLAT - W101535 1"x3 3/8"x25 1/2" (24x86x648) H7 - PICNIC SUPPORT - W101625 1"x3 3/8"x15 1/4" (24x86x387) H8 - PICNIC SUPPORT - W101628 1"x3 3/8"x13 1/2"...
  • Page 12 Parts Identification Wood Components (NOT TO SCALE) K2 - ARCHED WALL RAIL - W101531 5/8"x5 1/4"x34 7/8" (16x134x887) K3 - ARCHED WALL RAIL - W101530 5/8"x5 1/4"x34 1/8" (16x134x868) K4 - WALL RAIL - W101533 5/8"x5 1/4"x34 1/8" (16x134x868) M1 - TARP SUPPORT - W101540 5/8"x3 3/8"x40"...
  • Page 13 Parts Identification Wood Components (NOT TO SCALE) M9 - PICNIC CLEAT - W101633 5/8"x3 3/8"x6 3/4" (16x86x172) M10 - WALL RAIL - W101621 5/8"x3 3/8"x6 1/4" (16x86x160) M11 - WALL RAIL - W101527 5/8"x3 3/8"x4 3/4" (16x86x122) M12 - WALL SLAT - W101536 5/8"x3 3/8"x25 1/4"...
  • Page 14 Parts Identification Hardware (42) Z - LAG SCREW WH 5/16x2 - H100027 (56) D - NUT BARREL WH 5/16x7/8 - H100005 AA - LAG SCREW WH 5/16x2 1/2 - H100028 CM - BOLT WH 5/16x1/2 - H100115 (13) BG - T-NUT 5/16 - H100074 BF - T-NUT 3/8 - H100073 F - BOLT WH 5/16x1 - H100008 A - BOLT FA 3/8x1 1/2 - H100001...
  • Page 15 Parts Identification Hardware BL - SCREW TAPPING 14x3/4 - H100083 CG - WASHER LOCK INT 8x15 - H100108 AZ - BOLT PTH 1/4x1 1/4 - H100062 CE - WASHER FLAT 9x18 - H100106 (48) BR - SCREW PFH 8x1 1/8 - H100088 BX - WASHER SPLIT 5/16 - H100095 (48) BQ - SCREW PFH 8x1 1/4 - H100087...
  • Page 16 Parts Identification Accessories (NOT TO SCALE) EA - HAND GRIP YELLOW PLASTIC - A100043 EK - SLIDE RAIL 8' GREEN RIGHT - A100054 EL - SLIDE RAIL 8' GREEN LEFT - A100055 HC - BYD ID TAG (LARGE) 2011 WITH AGES - A100164 ER - CLIMBING ROCK GREEN SMALL -A100060 EM - SLIDE BED 8' YELLOW - A100056...
  • Page 17 Parts Identification Accessories (NOT TO SCALE) KC - ROOF TARP - A100196 KB - PICNIC TABLE TARP - A100195 KD - PLASTIC GROUND STAKE BROWN - A100179...
  • Page 18 M77 - SLIDE BRACE - W100544 5/8"x3 3/8"x17 1/4" (16x86x438) EM - SLIDE BED 8' YELLOW - A100056 SLIDE ASSEMBLY STEP 1 T-NUT 5/16 BOLT WH 5/16x1/2 SLIDE BED 8' YELLOW (1 PLC) BOLT WH 5/16x1/2 (3 PLCS) T-NUT 5/16 (3 PLCS) USE 'M77' SLIDE BRACE AS A TEMPLATE FOR DRILLING BOTTOM...
  • Page 19 EL - SLIDE RAIL 8' GREEN LEFT - A100055 EK - SLIDE RAIL 8' GREEN RIGHT - A100054 M78 - CENTER SLIDE BRACE - W100545 5/8"x3 3/8"x17 1/4" (16x86x438) SLIDE ASSEMBLY STEP 2 SCREW PFH (24) NOTE: MAKE CERTAIN SUPPORTS AND SLIDE BED ARE FULLY ENGAGED WITHIN CHANNEL OF SLIDE...

  • Page 20: Swing Beam Assembly

    GD - L BRACKET 66x66x127 - A100140 SB74 - SWING BEAM - W102304 2"x5 1/4"x89 1/2" (50x134x2274) QZ - TRIANGLE PLATE 100° 5 HOLE - A100294 SWING BEAM ASSEMBLY BOLT WH 5/16x1 3/4 STEP 1 BOLT HEX 5/16x2-3/4 ATTACH (2) QZ TRIANGLE PLATES TO SB74 SWING BEAM USING WASHER LOCK EXT 1-3/4"...
  • Page 21 W71 - SWING BEAM SUPPORT - W102305 H79 - END SUPPORT - W100992 2"x3 3/8"x46 1/8" (50x86x1170) 1"x3 1/2"x42" (24x86x1072) E77 - ANGLE BRACE - W100991 H80 - GROUND BOARD - W100990 1 3/8"x3 3/8"x74 3/8" (36x86x1890) 1"x3 3/8"x87 3/8" (24x86x2218) SWING BEAM ASSEMBLY BOLT WH 5/16x2...
  • Page 22 SWING BEAM ASSEMBLY STEP 3 ATTACH (2) QZ TRIANGLE PLATES TO W71 SWING BEAM SUPPORT USING 1-3/4" BOLT WH 5/16x1 3/4 BOLTS, LOCK WASHER AND 7/8" BARREL NUT. WASHER LOCK EXT 12x19 NUT BARREL WH 5/16x7/8 SB74 SB74...
  • Page 23 SWING BEAM ASSEMBLY WASHER STEP 4 FLAT 8x27 INSERT SWING HANGER QUICK LINK AND SAFETY WASHER INTO HOLES IN THE EDGE OF SB74 SWING BEAM. SECURE SWING HANGER TO W71 SWING BEAM USING NUT LOCK 5/16 FLAT WASHERS AND 5/16" LOCK NUTS. WASHER SAFETY 17x30...
  • Page 24 4' Rock Ladder Phase 1 Phase Notes • Assemble slats to rails as shown. • Note oreintation of slats, be sure to arrange as shown. • See drawing below for slat spacing on rails. • Using slats as a guide, pre-drill top edges of rails SCREW PFH 8x1 1/2 with a 1/8"...
  • Page 25 4' Rock Ladder Phase 2 & 3 P P P P h h h h a a a a s s s s e e e e N N N N o o o o t t t t e e e e s s s s BOLT FA 3/8x1 1/2 •...

  • Page 26: Fort Assembly

    Fort Assembly Phase 1 Hardware needed: Parts needed: • (14) D - NUT BARREL WH 5/16x7/8 - H100005 • (1) H1 - ROOF CROSS BRACE - W101538 • (14) AD - WASHER LOCK EXT 12x19 - H100031 • (2) E2 - FORT UPRIGHT - W101520 •...
  • Page 27 Fort Assembly Phase 2 Hardware needed: Parts needed: • (10) D - NUT BARREL WH 5/16x7/8 - H100005 • (1) H1 - ROOF CROSS BRACE - W101538 • (10) AD - WASHER LOCK EXT 12x19 - H100031 • (2) E1 - FORT UPRIGHT - W101519 •...
  • Page 28 Fort Assembly Phase 3 Parts needed: Hardware needed: • (2) M3 - TARP SUPPORT - W101539 • (8) CK - SCREW PFH 8x2 - H100111 • (1) M4 - FLOOR/TARP SUPPORT - W101541 • (4) BP - SCREW PFH 8x1-1/2 - H100086 •...
  • Page 29 Fort Assembly Phase 4 Hardware needed: Parts needed: • (4) BT - SCREW PFH 8x2-1/2 - H100090 • (1) H4 - FLOOR BRACE - W101631 • (4) N10 - BOLT WH 5/16x2-3/4 - H100015 • (2) H2 - FLOOR JOIST - W101521 •...
  • Page 30 Fort Assembly Phase 5 Hardware needed: Parts needed: • (40) CK - SCREW PFH 8x2 - H100111 • (2) M7 - FLOOR BOARD - W101524 • (20) BQ - SCREW PFH 8x1-1/4 - H100087 • (8) M2 - FLOOR BOARD - W101525 Phase Notes •...
  • Page 31 Fort Assembly Phase 6 Hardware needed: Parts needed: • (2) K - BOLT WH 5/16x2 - H100012 • (2) M11 - WALL RAIL - W101527 • (8) AC - WASHER LOCK EXT 8x19 - H100030 • (2) M10 - WALL RAIL - W101621 •...
  • Page 32 Fort Assembly Phase 7 Parts needed: Hardware needed: • (2) H6 - WALL SLAT - W101535 • (8) BQ - SCREW PFH 8x1-1/4 - H100087 • (2) EJ - L BRACKET GREEN - A100053 • (4) BL - SCREW TAPPING 14x3/4 - H100083 Phase Notes Note: Due to the changing size of the wood as a result of moisture content, you may...
  • Page 33 Fort Assembly Phase 8 Hardware needed: Parts needed: • (8) BR - SCREW PFH 8x1-1/8 - H100088 • (4) M12 - WALL SLAT - A101536 • (8) BQ - SCREW PFH 8x1-1/4 - H100087 Phase Notes Note: Do not overtighten screws, overtightening •...
  • Page 34 Fort Assembly Phase 9 Hardware needed: Parts needed: • (20) BR - SCREW PFH 8x1-1/8 - H100088 • (5) M12 - WALL SLAT - W101536 • (8) BQ - SCREW PFH 8x1-1/4 - H100087 • (2) J1 - WALL SLAT - W101622 •...
  • Page 35 Fort Assembly Phase 10 Hardware needed: Parts needed: • (2) Z - LAG SCREW WH 5/16x2 - H100027 • (2) H5 - PICNIC TARP SUPPORT - W101542 • (2) AC - WASHER LOCK EXT8x19 - H100030 • (1) M3 - TARP SUPPORT - W101539 •...
  • Page 36 Fort Assembly Phase 11 Hardware needed: Parts needed: • (2) BG - T-NUT 5/16 - H100074 • (2) H8 - PICNIC SUPPORT - W101628 • (8) AC - WASHER LOCK EXT 8x19 - H100030 • (2) F2 - ANGLE BRACE - W101629 •...
  • Page 37 Fort Assembly Phase 12 Hardware needed: Parts needed: • (8) D - NUT BARREL WH 5/16x7/8 - H100005 • (2) H7 - PICNIC SUPPORT - W101625 • (8) AD - WASHER LOCK EXT12x19 - H100031 • (2) G3 - PICNIC SUPPORT - W101627 •...
  • Page 38 Fort Assembly Phase 13 Hardware needed: Parts needed: • (2) B - NUT BARREL WH 5/16x5/8 - H100004 • (2) M1 - TARP SUPPORT - W101540 • (2) D - NUT BARREL WH 5/16x7/8 - H100005 • (1) M4 - FLOOR / TARP SUPPORT - W101541 •...
  • Page 39 Fort Assembly Phase 14 Hardware needed: Parts needed: • (6) CY - SCREW PWH 8x5/8 - H100128 • (1) KC - ROOF TARP - A100196 Phase Notes • Assemble with hardware as shown. Step 1: Drape 'KC' Tarp over 'M4' floor / tarp support and 'M3' tarp supports.
  • Page 40 Fort Assembly Phase 15 Hardware needed: Parts needed: • (6) CY - SCREW PWH 8x5/8 - H100128 • (1) KB - PICNIC TABLE TARP - A100195 Phase Notes • Assemble with hardware as shown. Step 1: Drape 'KB' Tarp over 'M4' floor / tarp support and 'M3' tarp supports.
  • Page 41 Fort Assembly Phase 16 Hardware needed: Parts needed: • (4) AZ - BOLT PTH 1/4x1-1/4 - H100062 • (2) EA - HAND GRIP YELLOW PLASTIC - A100043 • (4) CG - WASHER LOCK EXT 8x15 - H100108 • (4) CE - WASHER FLAT 9x18 - H100106 •...
  • Page 42 Rock Ladder Attachment Phase 17 Hardware needed: Parts needed: • (2) AA - LAG SCREW WH 5/16x2-1/2 - H100028 • (1) ROCK WALL LADDER ASSEMBLY • (2) AC - WASHER LOCK EXT 8x19 - H100030 Phase Notes • Assemble with hardware as shown. To prevent board splitting, you must pre-drill each board with a 1/8"...
  • Page 43 Slide Attachment Phase 18 Hardware needed: Parts needed: • (3) BG - T-NUT 5/16 - H100074 • (1) SLIDE ASSEMBLY • (3) CM - BOLT WH 5/16x1/2 - H100115 Phase Notes 12 3/4" • Assemble with hardware as shown. 9" 2 3/4"...
  • Page 44 Parts needed: Hardware needed: • (1) SWING BEAM ASSEMBLY • (1) HC - BACKYARD DISCOVERY ID TAG - A100164 • (4) BG - T-NUT 5/16 - H100074 • (1) SR - "B" REVISION TAG - A100315 • (4) BX - WASHER SPLIT 5/16 - H100095 •...
  • Page 45 Anchoring Instructions Phase 20 Hardware needed: Parts needed: • (6) CK - SCREW PFH 8x2 - H100111 • (6) KD - PLASTIC GROUND STAKE BROWN - A100179 • (6) FA - QUICK LINK - A100069 • (4) EZ - CHAIN GREEN 51.25" - A100068 •...

  • Page 46: Warranty

    WARRANTY AUSTRALIAN CONSUMER LAW Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with guarantees that cannot be excluded under the Australian Consumer law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
