Manufactured by:
Backyard Discovery
3305 Airport Drive, Pittsburg, KS 66762
800-856-4445
Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476
J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 08005678990

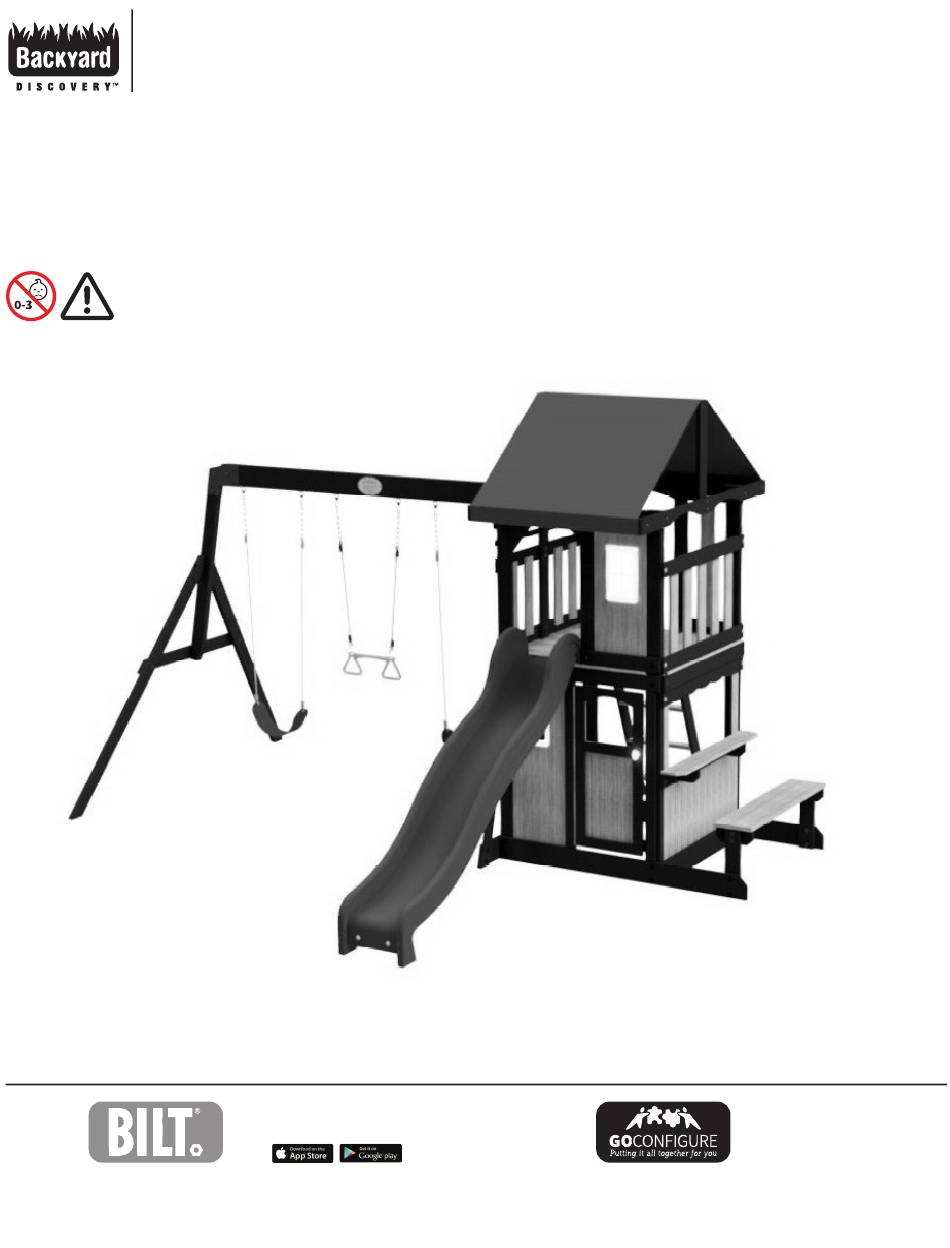

LAKEWOOD
SWING SET
MODEL: # 2001022B
WARNING
Adult Assembly Required.
The assembly manual must be retained since it contains important information
Not suitable for children under 36 months due to small parts.
FOR DOMESTIC USE ONLY. INTENDED FOR OUTDOOR USE.
For the most up to date assembly manual, to register your product, or to order replacement parts
Please visit www.backyarddiscovery.com
Para obtener instrucciones en español, visite www.backyarddiscovery.com
EASY STEP-BY-STEP
3D INTERACTIVE INSTRUCTIONS
DOWNLOAD THE FREE APP
INSTALLATION
SERVICES
AVAILABLE!
*
See inside for details
Made in China
INS-2001022-B-LAKEWOOD-ENG 7-1-21

Advertisement

loading
Need help?

Need help?

Do you have a question about the LAKEWOOD 2001022B and is the answer not in the manual?

Questions and answers

Related Manuals for Backyard Discovery LAKEWOOD 2001022B

Summary of Contents for Backyard Discovery LAKEWOOD 2001022B

  • Page 1 Manufactured by: Backyard Discovery 3305 Airport Drive, Pittsburg, KS 66762 800-856-4445 Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476 J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 08005678990 LAKEWOOD SWING SET MODEL: # 2001022B WARNING Adult Assembly Required.
  • Page 2 INSTALLATION SERVICES AVAILABLE! Need a helping hand? Let our team of professionals handle the installation for you! *Installation services are only available to U.S. customers. With Go Configure, we bring you 18 years of experience right to your doorstep. We service a wide array of indoor and outdoor recreation products that most consumers don’t have the time or ability to deliver &...
  • Page 3 Owner’s Manual Please Read This Before Starting Assembly MISSING A PART? CALL US BEFORE GOING BACK TO THE STORE Th e store where you made your purchase does not stock parts for this item. If you have assembly questions or you are missing or have damaged parts, please call 1-800-856-4445 you can also visit www.backyarddiscovery.com...
  • Page 4 All wood carries a five (5) year warranty against rot and decay from the original purchase date. Backyard Discovery Metal Play Structure Backyard Discovery warrants this metal play product to be free from defects in materials and workmanship for a period of five (5) years from the original date of purchase. General Warranty Information This warranty applies to the original owner and registrant and is non-transferable.
  • Page 5 Owner’s Manual Operating Instructions and Safety Warnings WARNING: BURN HAZARD • Pay special attention to plastic and metal surfaces as they may be hot enough to cause burns. • Always check the temperature of the product before NOTE: letting your children play on it. •...
  • Page 6 Owner’s Manual Please Read This Before Starting Assembly Positioning Your Playcenter Suggested Playground Surfacing • Th e playcenter is designed to be installed on a level • Do not install home playground equipment over surface by an adult with an adult helper. Place concrete, asphalt, packed earth, grass, carpet, or any in a fl at area of your yard to minimize ground other hard surface.
  • Page 7 Owner’s Manual Please Read This Before Starting Assembly APPENDIX A The following information is from the United States X3.1.3.2 Do not install loose-fi ll surfacing over hard surfaces such as concrete or asphalt. Consumer Product Safety Commission’s Information X3.1.4 Poured-In-Place Surfaces or Pre-Manufactured Sheet for playground surfacing material;...
  • Page 8 • Check all moving parts including swing seats, Backyard Discovery assumes no responsibility or ropes, cables, and chains for wear, rust, or other liability for any charge incurred by the Customer for deterioration.
  • Page 9 About Our Wood Backyard Discovery uses 100% Cedar (C. Lanceolata) wood. Although we take great care in selecting the best quality lumber available, wood is still a product of nature and susceptible to weathering which can change the appearance of your set.
  • Page 10 Owner’s Manual Assembly Tips Protrusion Hazard Incorrect Correct If you see exposed threads and your bolt protrudes beyond the T-Nut you may have over tightened the bolt or used incorrect hardware. If you’ve overtightened, remove the bolt and add washers to eliminate the protrusion.
  • Page 11 Owner’s Manual Assembly Tips ASSEMBLY TIP: Keep an eye out for these boxes which will contain helpful pictures and information making the assembly process as quick and painless as possible. Sorting Wood When removing the wood from the boxes we recommend arranging them by part number before you begin assembly.
  • Page 12 Tools Required for Installation: (These are the tools that are generally required for assembly of our outdoor products. These tools are not included with the outdoor product purchase.)
  • Page 13 Basic Setup Dimensions Place the set on level ground, not less than 6 ft-7 in [2 m] from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines, or electrical wires. 27'-2 1/2" [8.3 m] 14'- 1/2" 6'-7"...
  • Page 14 Parts Identification Wood Components (NOT TO SCALE) - FRONT LEFT UPRIGHT - W4L13354 1 3/8"x3 3/8"x81 3/4" (36x86x2076) - FRONT RIGHT UPRIGHT - W4L13355 1 3/8"x3 3/8"x81 3/4" (36x86x2076) - BACK LEFT UPRIGHT - W4L13356 1 3/8"x3 3/8"x81 3/4" (36x86x2076) - BACK RIGHT UPRIGHT - W2A02975 1 3/8"x3 3/8"x81 3/4"...
  • Page 15 Parts Identification Wood Components (NOT TO SCALE) - FLOOR SUPPORT - W4L13369 1"x3 3/8"x40 1/8" (24x86x1018) - ROOF UPRIGHT - W4L13556 1"x3 3/8"x55 1/4" (24x86x1404) - LEFT UPRIGHT - W4L13371 1"x3 3/8"x50 3/4" (24x86x1290) - RIGHT UPRIGHT - W4L13372 1"x3 3/8"x50 3/4" (24x86x1290) - END SUPPORT - W4L13373 1"x3 1/2"x42"...
  • Page 16 Parts Identification Wood Components (NOT TO SCALE) - ARCHED ROOF BOARD - W4L13385 5/8"x4 3/8"x40" (16x112x1016) - END ROOF RAIL - W4L13386 5/8"x3 3/8"x41 7/8" (16x86x1064) - FLOOR BOARD - W4L13387 5/8"x3 3/8"x41 7/8" (16x86x1064) - WALL BOARD - W4L13388 5/8"x3 3/8"x41"...
  • Page 17 Parts Identification Wood Components (NOT TO SCALE) - PICKET - W4L13399 5/8"x3 3/8"x17 3/4" (16x86x452) - WALL RAIL - W4L13400 5/8"x3 3/8"x16 5/8" (16x86x422) - WINDOW WALL BOARD - W4L13401 5/8"x3 3/8"x14" (16x86x356) - WINDOW WALL BOARD - W4L13402 5/8"x3 3/8"x6 1/2" (16x86x164) - FLOOR SUPPORT - W4L13403 5/8"x3 3/8"x40"...
  • Page 18 Parts Identification Wood Components (NOT TO SCALE) - DOOR STOP SUPPORT - W4L13415 5/8"x2 3/8"x4 7/8" (16x60x125) - SAFETY RAIL - W4L13416 5/8"x1 3/8"x40 1/8" (16x34x1018) - BENCH SEAT - W4L13417 1"x4 3/8"x40 1/8" (24x112x1018) SB74 - SWING BEAM EXTENDED - W4L13418 2"x5 1/4"x89 1/2"...
  • Page 19 Parts Identification Hardware BOLT WH 5/16x4 1/2 BLK - H100534 NUT BARREL WH 5/16x1-1/2 BLK - H100193 BOLT WH 5/16x1/2 - H100115 BOLT WH 5/16x4 1/4 BLK - H100513 NUT LOCK 5/16 BLK - H100479 BOLT WH 5/16x2-1/2 BLK - H100194 (13) NUT BARREL WH 5/16x5/8 BLK - H100469 (20)
  • Page 20 Parts Identification Hardware SCREW PFH 8x2-1/2 BLK - H100201 WASHER LOCK EXT 8x15 BLK - H100400 (26) SCREW PFH 8x2 1/2 - H100090 (26) SCREW PFH 8x2 BLK - H100391 (97) WASHER LOCK EXT 8x19 BLK - H100198 SCREW PFH 8x1 3/4 BLK - H100382 (77) SCREW PFH 8x1-1/2 BLK - H100200 (29)
  • Page 21 Parts Identification Accessories (NOT TO SCALE) QUICK LINK - A100069 HAND GRIP GREEN PLASTIC - A100028 ROPE-CHAIN GREEN 33" - A100083 ROPE-CHAIN GREEN 51.25" - A100087 SWING SEAT GREEN 22IN - A6P00054 L BRACKET 66x66x127 - A100140 SWING BEAM EXTENSION BRACKET-LEFT - A100325 (1) LATCHING KNOB WITH SCREWS - A6P00020 SWING BEAM EXTENSION BRACKET-RIGHT - A100326...
  • Page 22 Parts Identification Accessories (NOT TO SCALE) "A" REVISION TAG - A100314 WINDOW (FLAT PACK) - A6P00019 SLIDE BED 8' DARK GREEN - A6P00384 TARP .4x1014x2195 - A6P00381 1/32"x39 7/8"x86 3/8" (.4x1014x2195) L BRACKET 2.5x38x55x55 - A4M01046 TRAPEZE YELLOW - A6P00034 GROUND STAKE REBAR - A4M00527 BYD ID TAG (LARGE) AGES 3-10 - A100164...
  • Page 23 H74 - LEFT UPRIGHT - W4L13371 1"x3 3/8"x50 3/4" (24x86x1290) M104 - LADDER RUNG - W4L13411 1"x3 3/8"x17 1/8" (24x86x434) LADDER ASSEMBLY STEP 1 SCREW PFH 8x2 BLK SCREW PFH 8x2 BLK (8 PLCS) M104...
  • Page 24 H75 - RIGHT UPRIGHT - W4L13372 1"x3 3/8"x50 3/4" (24x86x1290) LADDER ASSEMBLY STEP 2 SCREW PFH 8x2 BLK SCREW PFH 8x2 BLK (8 PLCS)
  • Page 25 M103 - REAR SUPPORT - W4L13410 5/8"x3 3/8"x18 1/4" (16x86x462) LADDER ASSEMBLY STEP 3 SCREW PFH 8x1-1/2 BLK (4 PLCS) M103 SCREW PFH 8x1-1/2 BLK...
  • Page 26 M102 - ATTACHMENT BOARD - W4L13409 5/8"x3 3/8"x18 1/4" (16x86x462) LADDER ASSEMBLY STEP 4 M102 SCREW PFH 8x1-1/2 BLK (4 PLCS) FLUSH SCREW PFH 8x1-1/2 BLK...
  • Page 27 M77 - SLIDE BRACE - W4L13407 - SLIDE BED 8' DARK GREEN - A6P00384 5/8"x3 3/8"x14 1/4" (16x86x362) BOLT WH 5/16x1/2 T-NUT 5/16 NOTE: TAKE NOTE OF SLIDE BED SURFACE FINISH, THE DULL SIDE WILL BE TOWARDS THE GROUND. PLACE SLIDE BRACE CENTERED ON THE BOTTOM (DULL SIDE) AND 1/2"...
  • Page 28 EK - SLIDE RAIL 8' GREEN RIGHT - A100054 EL - SLIDE RAIL 8' GREEN LEFT - A100055 M78 - CENTER SLIDE BRACE - W4L13408 5/8"x3 3/8"x14 1/4" (16x86x362) SLIDE ASSEMBLY TIP: STEP 2 A HELPER IS RECOMMENDED FOR THESE FOLLOWING STEPS.
  • Page 29 SB74 - SWING BEAM EXTENDED - W4L13418 2"x5 1/4"x89 1/2" (50x134x2274) L BRACKET 66x66x127 - A100140 SWING BEAM EXTENSION BRACKET-LEFT - A100325 SWING BEAM EXTENSION BRACKET-RIGHT - A100326 SWING BEAM ASSEMBLY STEP 1 BOLT HEX BOLT WH 5/16x2-3/4 5/16x1 3/4 NUT LOCK WASHER NUT BARREL...
  • Page 30 - SWING BEAM SUPPORT - W4L13420 - END SUPPORT - W4L13373 2"x3 3/8"x49 5/8" (50x86x1260) 1"x3 1/2"x42" (24x86x1072) - ANGLE BRACE - W4L13357 1 3/8"x3 3/8"x73 1/4" (36x86x1862) SWING BEAM ASSEMBLY STEP 2 BOLT WH NUT BARREL 5/16x4 1/2 WH 5/16x7/8 BOLT WH LAG SCREW 5/16x2-1/4...

  • Page 31: Table Of Contents

    SWING BEAM ASSEMBLY STEP 3 BOLT WH 5/16x2-1/2 BOLT WH 5/16x1 3/4 NUT BARREL WH 5/16x1-1/2 NUT BARREL WH 5/16x7/8 NUT BARREL WH 5/16x7/8 BLK (2 PLCS) WASHER BOLT WH 5/16x1 3/4 BLK LOCK EXT 8x19 BLK (2 PLCS) WASHER LOCK EXT 12x19 BLK NUT BARREL WH 5/16x1-1/2 BLK...

  • Page 32: Swing Beam Assembly Step

    9 1/2" SWING HANGER QUICK LINK - H100099 SWING BEAM ASSEMBLY STEP 4 NUT LOCK 5/16 WASHER FLAT 8x27 WASHER SAFETY 17x30 NUT LOCK 5/16 (6 PLCS) WASHER FLAT 8x27 (6 PLCS) 1. Lock nut must be tightened until loop is tight against the safety washer.
  • Page 33 - LEFT ROOF RAIL - W4L13360 - GROUND BOARD - W4L13377 1"x3 3/8"x60" (24x86x1524) 5/8"x3 3/8"x47 1/2" (16x86x1205) - FLOOR SUPPORT - W4L13369 1"x3 3/8"x40 1/8" (24x86x1018) - GROUND BOARD - W4L13375 5/8"x5 1/4"x59" (16x134x1499) - BACK LEFT UPRIGHT - W4L13356 1 3/8"x3 3/8"x81 3/4"...

  • Page 34: Bolt Wh

    - BRACE - W4L13393 5/8"x3 3/8"x26 5/8" (16x86x676) STEP 2 BOLT WH 5/16x1 BLK WASHER LOCK EXT 8x19 BLK NUT BARREL WH 5/16x5/8 WASHER LOCK EXT 12x19 BLK BOLT WH 5/16x1 BLK (6 PLCS) WASHER LOCK EXT 8x19 BLK (6 PLCS) WASHER LOCK EXT 12x19 BLK (6 PLCS) NUT BARREL WH 5/16x5/8 BLK...

  • Page 35: Blk

    - SAFETY RAIL - W4L13416 - SWING BEAM RAIL - W4L13364 5/8"x1 3/8"x40 1/8" (16x34x1018) 1"x3 3/8"x40 1/8" (24x86x1018) - WALL BOARD - W4L13406 5/8"x3 3/8"x40 1/8" (16x86x1018) STEP 3 LAG SCREW WH 5/16x2 T-NUT 5/16 BLK NOTE HOLE ORIENTATION (2 PLCS) FOR PROPER ASSEMBLY.
  • Page 36 - FLOOR SUPPORT - W4L13363 - RIGHT ROOF RAIL - W4L13361 1"x3 3/8"x40 1/8" (24x86x1018) 1"x3 3/8"x60" (24x86x1524) - SERVING SHELF SUPPORT - W4L13389 - GROUND BOARD - W4L13378 5/8"x3 3/8"x40 1/8" (16x86x1018) 5/8"x5 1/4"x40 1/8" (16x134x1018) - FRONT RIGHT UPRIGHT - W4L13355 1 3/8"x3 3/8"x81 3/4"...
  • Page 37 - WALL BOARD - W4L13390 - SERVING HEADER - W4L13396 5/8"x3 3/8"x40 1/8" (16x86x1018) 5/8"x3 3/8"x40 1/8" (16x86x1018) STEP 5 LAG SCREW WH 5/16x2 WASHER LOCK EXT 8x19 BLK LAG SCREW WH 5/16x2 BLK (4 PLCS) WASHER LOCK EXT 8x19 BLK (4 PLCS)
  • Page 38 - FLOOR SUPPORT - W4L13403 - GROUND BOARD - W4L13376 5/8"x3 3/8"x40" (16x86x1016) 5/8"x5 1/4"x60 1/2" (16x134x1538) - FLOOR SUPPORT - W4L13391 - ARCHED ROOF BOARD - W4L13385 - ARCHED ROOF BOARD - W4L13384 5/8"x3 3/8"x40" (16x86x1016) 5/8"x4 3/8"x40" (16x112x1016) 5/8"x4 3/8"x40"...
  • Page 39 - STANDARD ANGLE BRACE - W4L13358 - FLOOR JOIST - W4L13362 1 3/8"x2 3/8"x13" (36x60x330) 1"x3 3/8"x40 1/8" (24x86x1018) "A" REVISION TAG - A100314 STEP 7 LAG SCREW WH 5/16x2-1/2 SCREW PWH 8x3/4 BLK SCREW PFH 8x2-1/2 BLK BOLT WH 5/16x2 BLK WASHER LOCK EXT...
  • Page 40 - FLOOR BOARD - W4L13387 5/8"x3 3/8"x41 7/8" (16x86x1064) - FLOOR PANEL - W2A02973 1 1/4"x19 1/8"x41 7/8" (32x485x1064) STEP 8 SCREW PFH (39) 8x1-1/2 BLK SCREW PFH 8x1-1/2 BLK (39 PLCS)
  • Page 41 - RIGHT WALL BOARD - W4L13381 - WALL BOARD - W4L13382 (10) 3/8"x2 3/4"x37 1/2" (11x70x954) 3/8"x3 3/8"x19 1/2" (11x86x495) STEP 9 2 5/8 SCREW PFH (45) [67 mm] INSTALL 'K92' WALL 8x1 BLK BOARD FIRST AGAINST POST. MARK THEN EVENLY SPACE 'K93' WALL BOARDS UP TO THE 2 5/8 MARK.
  • Page 42 - LEFT WALL BOARD - W4L13380 3/8"x2 3/4"x37 1/2" (11x70x954) STEP 10 SCREW PFH 8x1 BLK SCREW PFH 8x1 BLK (5 PLCS)
  • Page 43 - SHELF SUPPORT - W4L13368 - SERVING SHELF - W4L13379 1"x3 3/8"x4 1/2" (24x86x114) 5/8"x5 1/4"x40 1/8" (16x134x1018) STEP 11 SCREW PFH 8x1-1/2 BLK SCREW PFH 8x2 1/2 SCREW PFH 8x2-1/2 BLK (2 PLCS) SCREW PFH 8x1-1/2 BLK (5 PLCS)
  • Page 44 - WALL BOARD - W4L13413 - WALL BOARD - W4L13388 5/8"x2 3/8"x41" (16x60x1040) 5/8"x3 3/8"x41" (16x86x1040) - WINDOW WALL BOARD - W4L13397 - WINDOW WALL BOARD - W4L13402 5/8"x3 3/8"x25" (16x86x634) 5/8"x3 3/8"x6 1/2" (16x86x164) STEP 12 SCREW PFH (20) 8x1 1/8 BLK SCREW PFH 8x1 1/8 BLK (20 PLCS)
  • Page 45 FOLD OUTWARD BOTH SIDES AT THIS LOCATION - WINDOW CLEAT - W4L13383 3/8"x1 1/8"x9 7/8" (11x30x252) - WINDOW (FLAT PACK) - A6P00019 STEP 13 SCREW PWH 8x5/8 BLK SCREW PWH 8x3/4 BLK SCREW PWH 8x5/8 BLK (4 PLCS) WINDOW (FLAT PACK) (1 PLCS) SCREW PWH 8x3/4 BLK (4 PLCS)
  • Page 46 - HINGE BOARD - W4L13412 5/8"x2 3/8"x37 3/4" (16x60x958) STEP 14 SCREW PFH 8x1 1/8 BLK FLUSH EDGES SCREW PFH 8x1 1/8 BLK (8 PLCS)
  • Page 47 - WALL RAIL - W4L13398 - WALL RAIL - W4L13400 5/8"x3 3/8"x19 1/4" (16x86x490) 5/8"x3 3/8"x16 5/8" (16x86x422) STEP 15 BOLT WH 5/16x2 BLK WASHER LOCK EXT 8x19 BLK T-NUT 5/16 WASHER LOCK EXT 8x19 BLK (2 PLCS) BOLT WH 5/16x2 BLK (2 PLCS) T-NUT 5/16 BLK (2 PLCS)
  • Page 48 - WALL BOARD - W4L13404 - WALL BOARD - W4L13390 5/8"x3 3/8"x40 1/8" (16x86x1018) 5/8"x3 3/8"x40 1/8" (16x86x1018) STEP 16 LAG SCREW WH 5/16x2 WASHER LOCK EXT 8x19 BLK WASHER LOCK EXT 8x19 BLK (4 PLCS) LAG SCREW WH 5/16x2 BLK (4 PLCS)

  • Page 49: Nut Barrel Wh 5/16X7/8

    - WALL BOARD - W4L13414 - WALL BOARD - W4L13395 - WINDOW WALL BOARD - W4L13402 5/8"x2 3/8"x30" (16x60x762) 5/8"x3 3/8"x30" (16x86x762) 5/8"x3 3/8"x6 1/2" (16x86x164) - WINDOW WALL BOARD - W4L13401 - L BRACKET 2.5x38x55x55 - A4M01046 - WALL BOARD - W4L13405 5/8"x3 3/8"x14"...
  • Page 50 FOLD OUTWARD BOTH SIDES AT THIS LOCATION - WINDOW CLEAT - W4L13383 3/8"x1 1/8"x9 7/8" (11x30x252) - WINDOW (FLAT PACK) - A6P00019 STEP 18 SCREW PWH 8x5/8 BLK WINDOW (FLAT PACK) (1 PLCS) SCREW PWH 8x5/8 BLK (4 PLCS) SCREW PWH 8x3/4 BLK SCREW PWH 8x3/4 BLK (4 PLCS)
  • Page 51 - PICKET - W4L13547 - PICKET - W4L13399 5/8"x3 3/8"x20 1/8" (16x86x512) 5/8"x3 3/8"x17 3/4" (16x86x452) STEP 19 3 3/8 SCREW PFH (36) 8x1 1/8 BLK SCREW PFH 8x1 1/8 BLK (36 PLCS) 3 3/8 10 3/16 3 3/8 3 3/8 3 3/8 1 9/16...
  • Page 52 - HANDLE WALL BOARD - W4L13394 - WALL BOARD - W4L13395 5/8"x3 3/8"x31 3/4" (16x86x808) 5/8"x3 3/8"x30" (16x86x762) - L BRACKET 2.5x38x55x55 - A4M01046 STEP 20 BOLT WH 5/16x1/2 BLK NUT BARREL SCREW PFH BOLT WH 8x1 1/8 BLK WH 5/16x7/8 5/16x1 BLK WASHER T-NUT 5/16...
  • Page 53 - END ROOF RAIL - W4L13386 5/8"x3 3/8"x41 7/8" (16x86x1064) - L BRACKET 2.5x38x55x55 - A4M01046 STEP 21 BOLT WH 5/16x1/2 BLK NUT BARREL WH 5/16x7/8 WASHER LOCK EXT T-NUT 5/16 12x19 BLK BOLT WH 5/16x1/2 BLK (8 PLCS) T-NUT 5/16 BLK (4 PLCS) NUT BARREL WH 5/16x7/8 BLK (4 PLCS)
  • Page 54 - ROOF UPRIGHT - W4L13555 - TOP ROOF RAIL - W4L13557 1"x3 3/8"x24" (24x86x610) 5/8"x3 3/8"x40" (16x86x1016) - L BRACKET 2.5x38x55x55 - A4M01046 - ROOF UPRIGHT - W4L13556 1"x3 3/8"x55 1/4" (24x86x1404) STEP 22 WASHER LOCK EXT 12x19 BLK T-NUT 5/16 BLK (2 PLCS) (2 PLCS) BOLT WH...
  • Page 55 - SUPPORT RAIL - W4L13419 1"x1 3/8"x20" (24x34x507) - WALL RAIL - W4L13359 1"x5 1/4"x22" (24x134x558) STEP 23 SCREW PFH 8x2 BLK BOLT WH 5/16x1 1/2 SCREW PFH 8x1-1/2 BLK WASHER LOCK EXT T-NUT 5/16 8x19 BLK SCREW PFH 8x1-1/2 BLK (4 PLCS) T-NUT 5/16 BLK (2 PLCS)
  • Page 56 - TARP .4x1014x2195 - A6P00381 1/32"x39 7/8"x86 3/8" (.4x1014x2195) STEP 24 SCREW PWH 8x5/8 BLK (8 PLCS) SCREW PWH 8x5/8 BLK 1 9/16...
  • Page 57 - BENCH UPRIGHT - W4L13366 1"x3 3/8"x15" (24x86x380) STEP 25 BOLT WH 5/16x1 BLK NUT BARREL WH 5/16x7/8 WASHER LOCK EXT 8x19 BLK WASHER LOCK EXT 12x19 BLK WASHER LOCK EXT 8x19 BLK (4 PLCS) BOLT WH 5/16x1 BLK (4 PLCS) WASHER LOCK EXT 12x19 BLK (4 PLCS) NUT BARREL WH 5/16x7/8 BLK...
  • Page 58 - SEAT SUPPORT - W4L13367 1"x3 3/8"x8 1/2" (24x86x216) STEP 26 BOLT WH 5/16x1 3/4 T-NUT 5/16 WASHER LOCK EXT 8x19 BLK T-NUT 5/16 BLK (4 PLCS) WASHER LOCK EXT 8x19 BLK (4 PLCS) BOLT WH 5/16x1 3/4 BLK (4 PLCS)
  • Page 59 - BENCH SEAT - W4L13417 1"x4 3/8"x40 1/8" (24x112x1018) STEP 27 SCREW PFH 8x1 3/4 BLK SCREW PFH 8x1 3/4 BLK (8 PLCS)
  • Page 60 - HAND GRIP GREEN PLASTIC - A100028 STEP 28 BOLT WH BOLT WH 1/4x1 BLK 1/4x1 1/2 BLK WASHER WASHER LOCK EXT LOCK EXT 6x15 BLK 8x15 BLK T-NUT 1/4 NUT BARREL WH 1/4x5/8 NUT BARREL WH 1/4x5/8 BLK (2 PLCS) WASHER LOCK EXT 8x15 BLK (2 PLCS) WASHER LOCK EXT 6x15 BLK...
  • Page 61 - DOOR STOP SUPPORT - W4L13415 - DOOR STOP - W4L13374 5/8"x2 3/8"x4 7/8" (16x60x125) 1"x2 3/8"x2" (24x60x50) STEP 29 SCREW PFH 8x1-1/2 BLK SCREW PFH 8x1-1/4 BLK SCREW PFH 8x1-1/4 BLK (2 PLCS) SCREW PFH 8x1-1/2 BLK (3 PLCS)
  • Page 62 - DOOR PANEL - W2A02974 1 1/2"x16 3/8"x36 3/8" (38x416x924) STEP 30 CENTER DOOR TOP TO BOTTOM IN OPENING SCREW PFH (11) 8x1-1/2 BLK FLUSH DOOR WITH FRONT SURFACE OF 'N1' BOARDS CENTER DOOR TOP TO BOTTOM IN OPENING SCREW PFH 8x1-1/2 BLK (11 PLCS)
  • Page 63 (1) LATCHING KNOB WITH SCREWS - A6P00020 STEP 31 KNOB KIT FACE PLATE (1 PLC) (1 PLC) SCREW PFH 8x3/4 (2 PLCS) LATCH (1 PLC) SCREW PFH 8x1 (1 PLC)
  • Page 64 LADDER ASSEMBLY FINAL ASSEMBLY STEP 1 BOLT WH 5/16x1 1/4 WASHER LOCK EXT 8x19 BLK T-NUT 5/16 WASHER LOCK EXT 8x19 BLK (2 PLCS) BOLT WH 5/16x1 1/4 BLK (2 PLCS)
  • Page 65 SWING BEAM ASSEMBLY BYD ID TAG (LARGE) AGES 3-10 - A100164 FINAL ASSEMBLY STEP 2 BOLT HEX 5/16x2 BLK BOLT HEX (4 PLCS) 5/16x2 BLK WASHER SPLIT 5/16 BLK (4 PLCS) WASHER FLAT 8x27 BLK (4 PLCS) T-NUT 5/16 BLK WASHER FLAT 8x27 (4 PLCS)
  • Page 66 SLIDE ASSEMBLY FINAL ASSEMBLY STEP 3 BOLT WH DRILL (3) 7/16" DIA HOLES THROUGH SLIDE BED AND DECK AT LOCATIONS SHOWN. 5/16x1/2 BLK 3 7/8 T-NUT 5/16 3 7/8 INSTALL SLIDE AGAINST POST 1 3/4 POST AS SHOWN. 1 5/8 DRILL PATTERN BOLT WH 5/16x1/2 BLK (3 PLCS)
  • Page 67 QUICK LINK - A100069 SWING SEAT GREEN 22IN - A6P00054 ROPE-CHAIN GREEN 51.25" - A100087 FINAL ASSEMBLY STEP 4 TIGHTEN QUICK NOTE: LINK WHEN HANGING YOUR SWINGS, IT IS REQUIRED TO ONLY TRIM AROUND THE SPECIFIC CHAIN LOOP THAT ALLOWS THE BOTTOM OF THE SWING SEAT, (WHEN SITTING ON IT) TO BE NO LOWER INSERT CHAIN INTO...
  • Page 68 TRAPEZE YELLOW - A6P00034 QUICK LINK - A100069 ROPE-CHAIN GREEN 33" - A100083 FINAL ASSEMBLY STEP 5 TIGHTEN QUICK LINK INSERT CHAIN INTO QUICK LINK ROPE-CHAIN GREEN 33" (2 PLCS) QUICK LINK TRAPEZE YELLOW (2 PLCS) (1 PLC)
  • Page 69 - GROUND STAKE REBAR - A4M00527 FINAL ASSEMBLY BOLT WH STEP 6 5/16x1/2 BLK TAP IN GROUND STAKES AT AN APPROXIMATE 45° ANGLE AT THE NUT BARREL LOCATIONS SHOWN. WH 5/16x5/8 BOLT WH 5/16x1 1/4 WASHER LOCK EXT 12x19 BLK NUT BARREL WH 5/16x5/8 BLK (4 PLCS) NUT BARREL WH 5/16x5/8 BLK...
