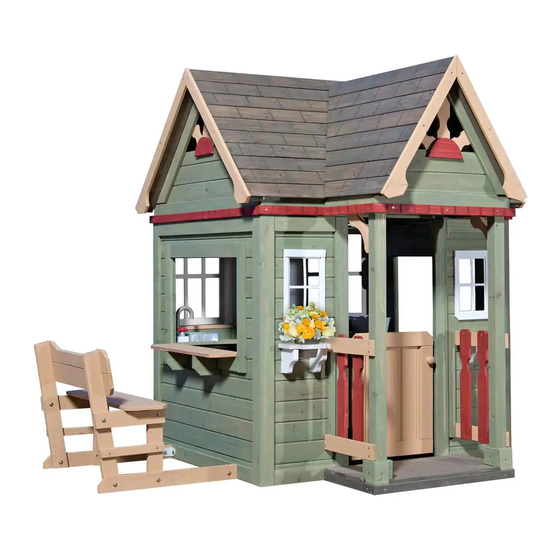

Backyard Discovery VICTORIAN INN Owner's Manual

Playhouse
Hide thumbs

Advertisement

Quick Links

Download this manual

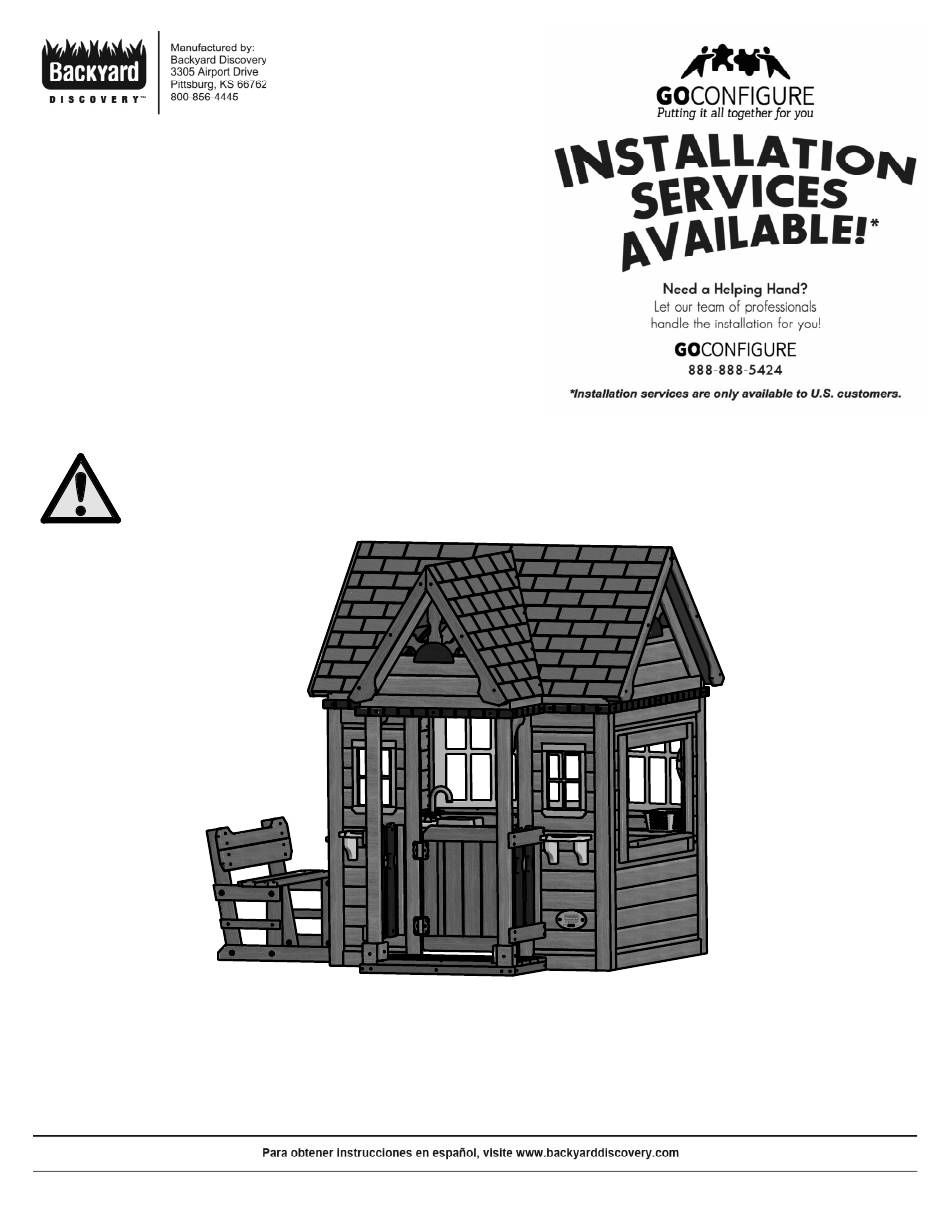

VICTORIAN INN
PLAYHOUSE
Model: # 1706316
BOOKLET INCLUDES:
• Owner's Manual
• Frequently Asked Questions
• Assembly Instructions
• Warranty Information
WARNING
Adult Assembly Required.
Not suitable for children under two years,
due to sharp points and small parts
Save this assembly manual for future reference in the event that
Made in China
INS-1706316-A-VICTORIAN INN PLAYHOUSE-ENG 1-26-18
.
For the most up to date assembly manual,
to register your set or to order replacement parts please visit
www.backyarddiscovery.com
you need to order replacement parts.

Advertisement

loading
Need help?

Need help?

Do you have a question about the VICTORIAN INN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Backyard Discovery VICTORIAN INN

Summary of Contents for Backyard Discovery VICTORIAN INN

  • Page 1 For the most up to date assembly manual, to register your set or to order replacement parts please visit www.backyarddiscovery.com Save this assembly manual for future reference in the event that you need to order replacement parts. Made in China INS-1706316-A-VICTORIAN INN PLAYHOUSE-ENG 1-26-18...
  • Page 2 With Go Configure, we bring you 18 years of experience right to your doorstep. We service a wide array of indoor and outdoor recreation products that most consumers don’t have the time or ability to deliver & install themselves. We do the heavy lifting, so you don’t have to! •...
  • Page 3 STOP PARE Missing A Part? CALL US BEFORE GOING BACK TO THE STORE! The store where you made your purchase does not stock parts for this item. If you have assembly questions or if you need parts, whether they are missing or damaged Call Toll-Free Help Line or visit www.backyarddiscovery.com ¡LLÁMENOS ANTES DE REGRESAR A LA TIENDA! La tienda donde realizó...

  • Page 4: For Your Records

    Owner’s Manual Play House Dear Customer: Please read entire booklet completely before beginning the assembly process. Equipment is recommended for use by children 2 to 10 years of age. Structures are not intended for public use. The Company does not warranty any of its residential structures subjected to commercial use such as: Daycare, Preschool, Nursery School, Recreational Park, or any similar Commercial Application.
  • Page 5 Owner’s Manual Play House Please refer to the Assembly section of the Assembly Manual for Maximum Fall Height. Positioning Your Play house 1. The Play house is designed to be installed on a level surface by an Adult with an Adult helper.

  • Page 6: Maintenance Instructions

    Owner’s Manual Play House The following chart explains the fall height in feet from which a life threatening head injury would not be expected Critical Heights in feet (m) of Tested Materials Material Uncompressed Depth Compressed Depth 6" (152mm) 9" (228mm) 12"...
  • Page 7 Owner’s Manual Play House all moving parts including swing seats, ropes, cables, and chains for wear, Check • rust, or deterioration. Replace as needed. Check metal parts for rust. If found, sand and repaint using non Lead-based paint • meeting the requirements of Title 16 CRF Part 1303.

  • Page 8: Disposal Instructions

    Owner’s Manual Play House Owner’s Manual Play House Disposal Instructions: Disposal Instructions: When the Play house use is no longer desired, it should be disassembled and use is no longer desired, it should be disassembled and use is no longer desired, it should be disassembled and disposed of in such a way that no unreasonable hazards will exist at the time the unit disposed of in such a way that no unreasonable hazards will exist at the time the unit disposed of in such a way that no unreasonable hazards will exist at the time the unit...
  • Page 9 Owner’s Manual Play House APPENDIX A Information on Playground Surfacing Materials: The following information is from the United States Consumer Product Safety Commission’s Information Sheet for playground surfacing material; also see the following website for additional information:. www.cpsc.gov/cpscpub/pubs/323.html X3. CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS X3.1 Select Protective Surfacing—One of the most important things you can do to reduce the likelihood of serious head injuries is to install shock-absorbing protective surfacing under and around your play equipment.
  • Page 10 Owner’s Manual Play House This information has been extracted from the CPSC publications “Playground Surfacing — Technical Information Guide” and “Handbook for Public Playground Safety.” Copies of these reports can be obtained by sending a postcard to: Office of Public Affairs, U.S. Consumer Product Safety Commission, Washington, D.C., 20207 or call the toll-free hotline: 1- 800-638-2772.
  • Page 11 Play House Assembly Manual FAQs: 1. Does the area for the play house need to be level? Yes. Backyard Discovery recommends the play house be positioned on a flat level area for maximum safety and durability. Any stakes provided should be used to secure it firmly to the ground.
  • Page 12 Tools Required for Installation: (These are the tools that are generally required for assembly of our outdoor products. These tools are not included with the outdoor product purchase.) (Level 24") (Square) (Tape Measure) (Drill Attachments: Phillips Head) (Phillips Screw Driver) (Cordless Drill or Electric Drill) (Rubber Mallet - Optional) (Claw Hammer)
  • Page 13 SAFETY AND ASSEMBLY INFORMATION SELECTING THE CORRECT LOCATION FOR YOUR PLAY PRODUCT IS IMPORTANT FOR YOUR CHILDREN’S SAFETY AND THE PRODUCT’S LONGEVITY Dimensions: General Information: • The PPH103-2017 has one layout option. Your set has been designed and engineered for Layout Ground Dimension Safe Play Area*...

  • Page 14: Parts Identification

    Parts Identification Wood Components (NOT TO SCALE) AA1 - LEFT PORCH POST - W4L07191 2"x2"x43 7/8" (50x50x1113) AA2 - RIGHT PORCH POST - W4L07192 2"x2"x43 7/8" (50x50x1113) G1 - WALL SUPPORT - W4L07210 1"x5 1/4"x6 3/4" (24x134x170) H1 - HEADER BOARD - W4L07182 1"x3 3/8"x48 1/4"...
  • Page 15 Parts Identification Wood Components (NOT TO SCALE) J6 - BENCH RAIL - W4L07225 1"x2 3/8"x11 1/4" (24x60x285) J7 - PORCH CORBEL - W4L07230 1"x2 3/8"x9" (24x60x230) K1 - WINDOW SHELF - W4L07208 5/8"x5 1/4"x26 1/2" (16x134x674) K3 - BAY WINDOW HEADER - W4L07180 5/8”x5 1/4”x47 1/8”...
  • Page 16 Parts Identification Wood Components (NOT TO SCALE) M6 - PORCH TRIM BOARD - W4L07198 5/8"x2 3/4"x2 5/8" (16x70x66) M7 - HEADER BOARD - W4L07202 5/8"x3 3/8"x13 7/8" (16x86x351) M8 - HEADER BOARD - W4L07203 5/8"x3 3/8"x13 7/8" (16x86x351) M9 - HEADER BOARD - W4L07204 5/8"x3 3/8"x25 7/8"...
  • Page 17 Parts Identification Wood Components (NOT TO SCALE) N1 - SUNBURST LEG - W4L07185 5/8"x2 3/8"x9 5/8" (16x60x244) N2 - SUNBURST LEG - W4L07186 5/8"x2 3/8"x6 1/2" (16x60x164) N3 - PORCH RAIL - W4L07199 5/8"x2 3/8"x14 3/8" (16x60x364) N4 - PICKET - W4L07201 5/8"x2 3/8"x18 1/4"...
  • Page 18 Parts Identification Wood Components (NOT TO SCALE) O4 - TRIM BOARD - W4L07216 5/8"x1 3/8"x49 1/2" (16x34x1258) O5 - TRIM BOARD - W4L07217 5/8"x1 3/8"x42 5/8" (16x34x1084) O6 - BENCH RAIL - W4L07226 5/8"x1 3/8"x10 1/4" (16x34x259) S1 - PORCH BOARD - W4L07200 1"x1"x17 3/4"...
  • Page 19 Parts Identification Wood Components (NOT TO SCALE) WP4 - RIGHT WALL PANEL - W2A02009 WP3 - LEFT WALL PANEL - W2A02008 1 1/4"x42 3/8"x41 1/2" (32x1075x1054) 1 1/8"x42 3/8"x41 1/2" (32x1075x1054) GP1 - GABLE END ASSEMBLY - W2A02011 WP5 - BACK WALL PANEL - W2A02010 1 1/8"x42 3/4"x21 3/8"...
  • Page 20 Parts Identification Wood Components (NOT TO SCALE) GP2 - GABEL END ASSEMBLY - W2A02014 RP3 - RIGHT ROOF PANEL - W2A02015 1 1/8"x25 3/4"x20 1/4" (27x655x514) 1 3/8"x37 3/8"x25 1/2" (35x949x646) RP4 - LEFT ROOF PANEL - W2A02016 DP1 - DOOR PANEL - W2A02017 1 3/8"x37 3/8"x25 1/2"...
  • Page 21 Parts Identification Hardware SCREW PFH 8x1/2 - H100124 BOLT WH 5/16x2 - H100012 (32) SCREW PFH 8x1 - H100085 T-NUT 5/16 - H100074 (52) SCREW PFH 8x1 1/8 - H100088 BOLT WH 1/4x1/2 - H100141 (153) SCREW PFH 8x1 1/4 - H100087 NUT BARREL WH 1/4x5/8 - H100136 BOLT WH 1/4x1 - H100137 (80)
  • Page 22 Parts Identification Accessories (NOT TO SCALE) L BRACKET WHITE 32x51 - A100133 PHONE KIT - A100132 "A" REVISION TAG - A100314 SPRING HINGE - BYA GREEN - A4M00591 BAY WINDOW PANEL - A100373 (12) 90° L-BRACKET - BLK - A4M00555 BYD ID TAG (MEDIUM) AGES 2 TO 10 - A4M00528 KNOB - BUTTER - A6P00158...
  • Page 23 Parts Identification Accessories (NOT TO SCALE) FLOWER POT HOLDER - A6P00023 FAUCET KIT - A6P00024 APPLE ORANGE WATERMELON STAWBERRY CORN CARROT STOVE KIT - A6P00025 PLASTIC KNIFE CUTTING BOARD FRUIT BASKET KIT - A6P00069 SURFACE MOUNT BASIN - A6P00032...
  • Page 24 WP2 - FRONT LEFT PANEL - W2A02007 1 1/8"x15 5/8"x41 1/2" (27x398x1054) WP3 - LEFT WALL PANEL - W2A02008 1 1/4"x42 3/8"x41 1/2" (32x1075x1054) 90° L-BRACKET - BLK - A4M00555 STEP 1: PLAYHOUSE ASSEMBLY SCREW PWH 8x5/8 BLK CORNER CONSTRUCTION 90°...
  • Page 25 90° L-BRACKET - BLK - A4M00555 WP5 - BACK WALL PANEL - W2A02010 1 1/4"x47 1/4"x22 1/4" (32x1200x558) STEP 2: SCREW PWH 8x5/8 BLK 5 11/16" SCREW PWH 8x5/8 BLK (2 PLCS) 90° L-BRACKET - BLK (1 PLC) 90° L-BRACKET - BLK (1 PLC) SCREW PWH 8x5/8 BLK (2 PLCS)
  • Page 26 90° L-BRACKET - BLK - A4M00555 WP4 - RIGHT WALL PANEL - W2A02009 1 1/4"x42 3/8"x41 1/2" (32x1075x1054) STEP 3: SCREW PWH 8x5/8 BLK 5 11/16" 90° L-BRACKET - BLK (1 PLC) SCREW PWH 8x5/8 BLK (2 PLCS) 90° L-BRACKET - BLK (1 PLC) SCREW PWH 8x5/8 BLK (2 PLCS)
  • Page 27 WP1 - FRONT RIGHT PANEL - W2A02006 1 1/8"x15 5/8"x41 1/2" (27x398x1054) 90° L-BRACKET - BLK - A4M00555 STEP 4: 1 11/16" SCREW PWH 8x5/8 BLK SCREW PWH 8x5/8 BLK (2 PLCS) 90° L-BRACKET - BLK (1 PLC) 90° L-BRACKET - BLK SCREW PWH 8x5/8 BLK (1 PLC) (2 PLCS)
  • Page 28 K3 - BAY WINDOW HEADER - W4L07180 5/8”x5 1/4”x47 1/8” (16x134x1198) J1 - BAY WINDOW SIDE - W4L07181 1”x1 7/8”x18 1/4” (24x48x464) BAY WINDOW PANEL - A100373 STEP 5: SCREW PFH SCREW PFH 8x1 1/2 (2 PLCS) SCREW PFH 8x1 1/2 SCREW PFH 8x1 (2 PLCS) BAY WINDOW PANEL...
  • Page 29 (1) BAY WINDOW ASSEMBLY STEP 6: SCREW PFH 8x1 1/4 (4 PLCS) SCREW PFH 8x1 1/4 FLUSH EDGES BAY WINDOW ASSEMBLY LEFT RIGHT FRONT...
  • Page 30 H1 - HEADER BOARD - W4L07182 1"x3 3/8"x48 1/4" (24x86x1226) H2 - HEADER BOARD - W4L07183 1"x3 3/8"x40 7/8" (24x86x1037) STEP 7: SCREW PFH 8x2 1/2 (4 PLCS) SCREW PFH 8x2 1/2 LEFT REAR FRONT RIGHT SCREW PFH 8x2 1/2 (4 PLCS)

  • Page 31: Header Assembly

    (1) HEADER ASSEMBLY STEP 8: FLUSH EDGES SCREW PFH 8x1 1/4 SCREW PFH 8x1 1/4 HEADER ASSEMBLY (4 PLCS) LEFT RIGHT FRONT...
  • Page 32 N9 - TIE STRAP - W4L07221 5/8”x2”x3 1/8” (16x50x80) STEP 9: FRONT SCREW PFH (16) 8x1 1/4 2" SCREW PFH 8x1 1/4 2" (16 PLCS) 1 9/16" FLUSH HEADER FLUSH TO INSIDE WALLS. LEFT RIGHT REAR...
  • Page 33 N9 - TIE STRAP - W4L07221 5/8”x2”x3 1/8” (16x50x80) STEP 10: SCREW PFH 8x1 1/4 (8 PLCS) SCREW PFH 8x1 1/4 2" 2" RIGHT 1 9/16 REAR FRONT LEFT...
  • Page 34 N9 - TIE STRAP - W4L07221 5/8”x2”x3 1/8” (16x50x80) STEP 11: SCREW PFH 8x1 1/4 SCREW PFH (8 PLCS) 8x1 1/4 2" LEFT 2" 1 9/16" FRONT REAR RIGHT...
  • Page 35 T1 - PORCH BASE - W4L07187 T3 - PORCH BASE - W4L07189 1"x1 3/8"x26 1/2" (24x34x673) 1"x1 3/8"x24 5/8" (24x34x625) T4 - PORCH BASE - W4L07190 T2 - PORCH BASE - W4L07188 1"x1 3/8"x12 3/4" (24x34x324) 1"x1 3/8"x13 3/4" (24x34x348) STEP 12: T-NUT 5/16 SCREW PFH 8x1 3/4...
  • Page 36 (1) PORCH FRAME ASSEMBLY STEP 13: WASHER LOCK EXT 8x19 BOLT WH 5/16x2 BOLT WH 5/16x2 (2 PLCS) WASHER LOCK EXT 8x19 (2 PLCS) FRONT PORCH FRAME ASSEMBLY RIGHT...
  • Page 37 AA1 - LEFT PORCH POST - W4L07191 2"x2"x43 7/8" (50x50x1113) AA2 - RIGHT PORCH POST - W4L07192 2"x2"x43 7/8" (50x50x1113) STEP 14: SCREW PFH 8x1 3/4 LEFT RIGHT FRONT SCREW PFH 8x1 3/4 (4 PLCS)
  • Page 38 L1 - PORCH BOARD - W4L07193 5/8"x4 3/8"x26 1/2" (16x112x673) M2 - PORCH BOARD - W4L07194 5/8"x3 3/8"x26 1/2" (16x86x673) STEP 15: SCREW PFH (20) 8x1 1/2 FRONT RIGHT SCREW PFH 8x1 1/2 (20 PLCS)
  • Page 39 USE PILOT HOLE LOCATED IN 'M7' & 'M8' BOARDS. M8 - HEADER BOARD - W4L07203 M7 - HEADER BOARD - W4L07202 5/8"x3 3/8"x13 7/8" (16x86x351) 5/8"x3 3/8"x13 7/8" (16x86x351) M9 - HEADER BOARD - W4L07204 90° L-BRACKET - BLK - A4M00555 5/8"x3 3/8"x25 7/8"...
  • Page 40 S1 - PORCH BOARD - W4L07200 1"x1"x17 3/4" (24x24x450) STEP 17: SCREW PFH 8x1 1/4 (6 PLCS) SCREW PFH 8x1 1/4 3 3/16"...
  • Page 41 M3 - PORCH TRIM BOARD - W4L07195 M5 - PORCH TRIM BOARD - W4L07197 5/8"x2 3/4"x3 1/4" (16x70x82) 5/8"x3 3/8"x2" (16x86x50) M6 - PORCH TRIM BOARD - W4L07198 M4 - PORCH TRIM BOARD - W4L07196 5/8"x2 3/4"x2 5/8" (16x70x66) 5/8"x3 3/8"x2 1/2" (16x86x65) STEP 18: SCREW PFH 8x1 1/4...
  • Page 42 1" N3 - PORCH RAIL - W4L07199 5/8"x2 3/8"x14 3/8" (16x60x364) STEP 19: FLUSH SCREW PFH (16) 8x1 1/4 BOTH SIDES. SCREW PFH 8x1 1/4 (2 PLCS)
  • Page 43 N4 - PICKET - W4L07201 5/8"x2 3/8"x18 1/4" (16x60x463) STEP 20: SCREW PFH 8x1 1/8 2 1/4" 2 1/4" SCREW PFH 8x1 1/8 (8 PLCS)
  • Page 44 J2 - SUPPORT BOARD - W4L07211 1"x2 3/8"x6 3/4" (24x60x170) G1 - WALL SUPPORT - W4L07210 1"x5 1/4"x6 3/4" (24x134x170) STEP 21: SCREW PFH 8x1 1/4 SCREW PFH 8x1 1/2 19 5/16" REAR SCREW PFH 8x1 1/2 (4 PLCS) REAR SCREW PFH 8x1 1/4 SCREW PFH 8x1 1/4 (2 PLCS)
  • Page 45 "A" REVISION TAG - A100314 STEP 22: SCREW PWH 8x5/8 "A" REVISION TAG (1 PLC) SCREW PWH 8x5/8 (2 PLCS)
  • Page 46 M10 - CABINET TOP - W4L07212 5/8"x3 3/8"x46 3/8" (16x86x1177) STEP 23: SCREW PFH 8x1 1/4 (12 PLCS) SCREW PFH (12) 8x1 1/4...
  • Page 47 H3 - SHELF SUPPORT - W4L07209 1"x3 3/8"x4 3/4" (24x86x120) STEP 24: 19 5/16" SCREW PFH 8x2 1/2 LEFT LEFT SCREW PFH 8x2 1/2 (2 PLCS)
  • Page 48 K1 - WINDOW SHELF - W4L07208 5/8"x5 1/4"x26 1/2" (16x134x674) STEP 25: SCREW PFH 8x1 1/4 REAR SCREW PFH 8x1 1/4 (5 PLCS) LEFT FRONT...
  • Page 49 N7 - WINDOW SHELF - W4L07207 5/8"x2 3/8"x26 1/2" (16x60x674) STEP 26: SCREW PFH 8x1 1/4 SCREW PFH 8x1 1/4 (4 PLCS) FLUSH...
  • Page 50 FAUCET KIT - A6P00024 STEP 27: SCREW PFH 8x1 1/2 (2 PLCS) SCREW PFH 8x1 1/2 FAUCET KIT (1 PLC)
  • Page 51 SURFACE MOUNT BASIN - A6P00032 STEP 28: SCREW PWH 8x5/8 SURFACE MOUNT BASIN SCREW PWH 8x5/8 (1 PLC) (2 PLCS)
  • Page 52 STOVE KIT - A6P00025 STEP 29: SCREW PFH 8x1 1/8 SCREW PFH 8x1 1/8 STOVE KIT (4 PLCS) (1 PLC)
  • Page 53 FRUIT BASKET KIT - A6P00069 STEP 30: SCREW PFH 8x1/2 (4 PLCS) SCREW PFH 8x1/2 FRUIT BASKET KIT (1 PLC)
  • Page 54 PHONE KIT - A100132 STEP 31: SCREW PFH 8x1/2 SCREW PFH 8x1/2 (2 PLCS) PHONE KIT (1 PLC)
  • Page 55 N2 - SUNBURST LEG - W4L07186 N1 - SUNBURST LEG - W4L07185 M1 - HALF MOON - W4L07184 5/8"x2 3/8"x6 1/2" (16x60x164) 5/8"x2 3/8"x9 5/8" (16x60x244) 5/8"x3 1/8"x6 3/4" (16x80x170) STEP 32: BUILD (2) SUNBURSTS IN THIS STEP. ONE FOR EACH HOUSE GABLE PANEL. SCREW PFH 8x1 1/8 SCREW PFH (2 PLCS)
  • Page 56 N9 - TIE STRAP - W4L07221 5/8”x2”x3 1/8” (16x50x80) GP1 - GABLE END ASSEMBLY - W2A02011 1 1/8"x42 3/4"x21 3/8" (27x1085x543) STEP 33: SCREW PFH SCREW PFH 8x1 1/4 8x1 1/4 (8 PLCS) REAR FRONT 2" 2" 1 9/16"...
  • Page 57 N9 - TIE STRAP - W4L07221 5/8”x2”x3 1/8” (16x50x80) GP1 - GABLE END ASSEMBLY - W2A02011 1 1/8"x42 3/4"x21 3/8" (27x1085x543) STEP 34: SCREW PFH 8x1 1/4 SCREW PFH 8x1 1/4 (8 PLCS) REAR FRONT 2" 2" 1 9/16"...
  • Page 58 N5 - SUNBURST LEG - W4L07205 N6 - SUNBURST LEG - W4L07206 M1 - HALF MOON - W4L07184 5/8"x2 3/8"x11 5/8" (16x60x294) 5/8"x2 3/8"x6" (16x60x152) 5/8"x3 1/8"x6 3/4" (16x80x170) STEP 35: SCREW PFH 8x1 1/8 (2 PLCS) SCREW PFH SCREW PFH SCREW PFH 8x1 1/8 8x1 1/8 (1 PLC)
  • Page 59 N9 - TIE STRAP - W4L07221 5/8”x2”x3 1/8” (16x50x80) GP2 - GABEL END ASSEMBLY - W2A02014 1 1/8"x25 3/4"x20 1/4" (27x655x514) STEP 36: SCREW PFH 8x1 1/8 1" 1" 2" 2" RIGHT LEFT SCREW PFH 8x1 1/8 (8 PLCS)
  • Page 60 90° L-BRACKET - BLK - A4M00555 RP1 - BACK ROOF PANEL - W2A02012 RP2 - FRONT ROOF PANEL - W2A02013 1 3/8"x35 1/4"x49 5/8" (35x808x1350) 2"x35 1/4"x49 5/8" (51x808x1350) STEP 37: SLIDE EDGE OF ROOF PANEL INTO CUTOUTS, AS SHOWN. SCREW PWH 8x5/8 BLK SCREW PFH...
  • Page 61 RP4 - LEFT ROOF PANEL - W2A02016 RP3 - RIGHT ROOF PANEL - W2A02015 1 3/8"x37 3/8"x25 1/2" (35x949x646) 1 3/8"x37 3/8"x25 1/2" (35x949x646) STEP 38: SCREW PFH 8x1 1/2 (8 PLCS) SCREW PFH (12) 8x1 1/2 SCREW PFH 8x1 1/2 (4 PLCS)
  • Page 62 J7 - PORCH CORBEL - W4L07230 1"x2 3/8"x9" (24x60x230) STEP 39: SCREW PFH 8x1 1/2 LAG SCREW WH 1/4x1-1/2 WASHER LOCK EXT 6x15 SCREW PFH 8x1 1/2 (2 PLCS) LAG SCREW WH 1/4x1-1/2 (2 PLCS) WASHER LOCK EXT 6x15 (2 PLCS)
  • Page 63 M12 - FASCIA BOARD - W4L07219 5/8"x3 3/8"x25 1/2" (16x86x647) STEP 40: SCREW PFH 8x1 1/4 SCREW PFH 8x1 1/4 (6 PLCS)
  • Page 64 M11 - FASCIA BOARD - W4L07218 5/8"x3 3/8"x31 3/4" (16x86x808) STEP 41: SCREW PFH 8x1 1/4 SCREW PFH 8x1 1/4 (6 PLCS)
  • Page 65 M11 - FASCIA BOARD - W4L07218 5/8"x3 3/8"x31 3/4" (16x86x808) STEP 42: SCREW PFH 8x1 1/4 SCREW PFH 8x1 1/4 (6 PLCS)
  • Page 66 O4 - TRIM BOARD - W4L07216 O1 - TRIM BOARD - W4L07213 5/8"x1 3/8"x49 1/2" (16x34x1258) 5/8"x1 3/8"x27 1/8" (16x34x689) O2 - TRIM BOARD - W4L07214 O5 - TRIM BOARD - W4L07217 5/8"x1 3/8"x11 3/4" (16x34x300) 5/8"x1 3/8"x42 5/8" (16x34x1084) O3 - TRIM BOARD - W4L07215 5/8"x1 3/8"x13 3/4"...
  • Page 67 FLOWER POT HOLDER - A6P00023 STEP 44: SCREW PFH FLOWER POT HOLDER (1 PLC) SCREW PFH 8x1 (8 PLCS) FLOWER POT HOLDER (1 PLC)
  • Page 68 KNOB - BUTTER - A6P00158 SPRING HINGE - BYA GREEN - A4M00591 DP1 - DOOR PANEL - W2A02017 1 1/8"x15 7/8"x20 1/8" (27x402x510) STEP 45: SCREW PFH 8x1 (6 PLCS) SPRING HINGE - BYA GREEN (2 PLCS) SCREW PFH (12) KNOB - BUTTER (1 PLC) SCREW PFH...
  • Page 69 N8 - DOOR STOP - W4L07220 5/8"x2 3/8"x3 7/8" (16x60x100) STEP 46: SCREW PFH 8x1 1/4 SCREW PFH 8x1 1/4 (3 PLCS) 2 3/4" 2 3/8"...
  • Page 70 BYD ID TAG (MEDIUM) AGES 2 TO 10 - A4M00528 STEP 47: SCREW PFH 8x1/2 BYD ID TAG (MEDIUM) AGES 2 TO 10 (1 PLC) SCREW PFH 8x1/2 (2 PLCS)
  • Page 71 O6 - BENCH RAIL - W4L07226 J3 - BENCH GROUND BOARD - W4L07222 J5 - BENCH UPRIGHT - W4L07224 5/8"x1 3/8"x10 1/4" (16x34x259) 1"x2 3/8"x22 1/2" (24x60x573) 1"x2 3/8"x21 1/8" (24x60x538) J6 - BENCH RAIL - W4L07225 J4 - BENCH UPRIGHT - W4L07223 L BRACKET WHITE 32x51 - A100133 1"x2 3/8"x11 1/4"...
  • Page 72 O6 - BENCH RAIL - W4L07226 J3 - BENCH GROUND BOARD - W4L07222 J5 - BENCH UPRIGHT - W4L07224 5/8"x1 3/8"x10 1/4" (16x34x259) 1"x2 3/8"x22 1/2" (24x60x573) 1"x2 3/8"x21 1/8" (24x60x538) J6 - BENCH RAIL - W4L07225 J4 - BENCH UPRIGHT - W4L07223 L BRACKET WHITE 32x51 - A100133 1"x2 3/8"x11 1/4"...
  • Page 73 M13 - BENCH SEAT - W4L07227 5/8"x3 3/8"x30 1/8" (16x86x764) STEP 50: SCREW PFH 8x1 1/2 SCREW PFH 8x1 1/2 (8 PLCS)
  • Page 74 M15 - BENCH BACK - W4L07229 M14 - BENCH BACK - W4L07228 5/8"x3 3/8"x30 1/8" (16x86x764) 5/8"x3 3/8"x30 1/8" (16x86x764) STEP 51: SCREW PFH 8x1 1/2 (8 PLCS) SCREW PFH 8x1 1/2...

  • Page 75: Bench Assembly

    (1) BENCH ASSEMBLY STEP 52: WASHER LOCK EXT NUT BARREL WH 1/4x5/8 8x15 (2 PLCS) WASHER LOCK EXT 8x15 (2 PLCS) BOLT WH 1/4x1 NUT BARREL WH 1/4x5/8 BOLT WH 1/4x1 (2 PLCS) BENCH ASSEMBLY...

  • Page 76: Limited Warranty

    Limited Warranty This Limited Warranty by Backyard Discovery applies to products manufactured under the Backyard Discovery brand or its other brands including but not limited to Backyard Botanical, Adventure Playsets, and Leisure Time Products. Backyard Discovery warrants that this product is free from defect in materials and workmanship for a period of one (1) year from the original date of purchase.
  • Page 77 Backyard Discovery disclaims all other representations and warranties of any kind, express or implied. This Warranty gives you specific legal rights. You may have other rights as well which vary from state to state or province to province. This warranty excludes all...
  • Page 78 NOTES:...
  • Page 79 NOTES:...
  • Page 80 NOTES:...
