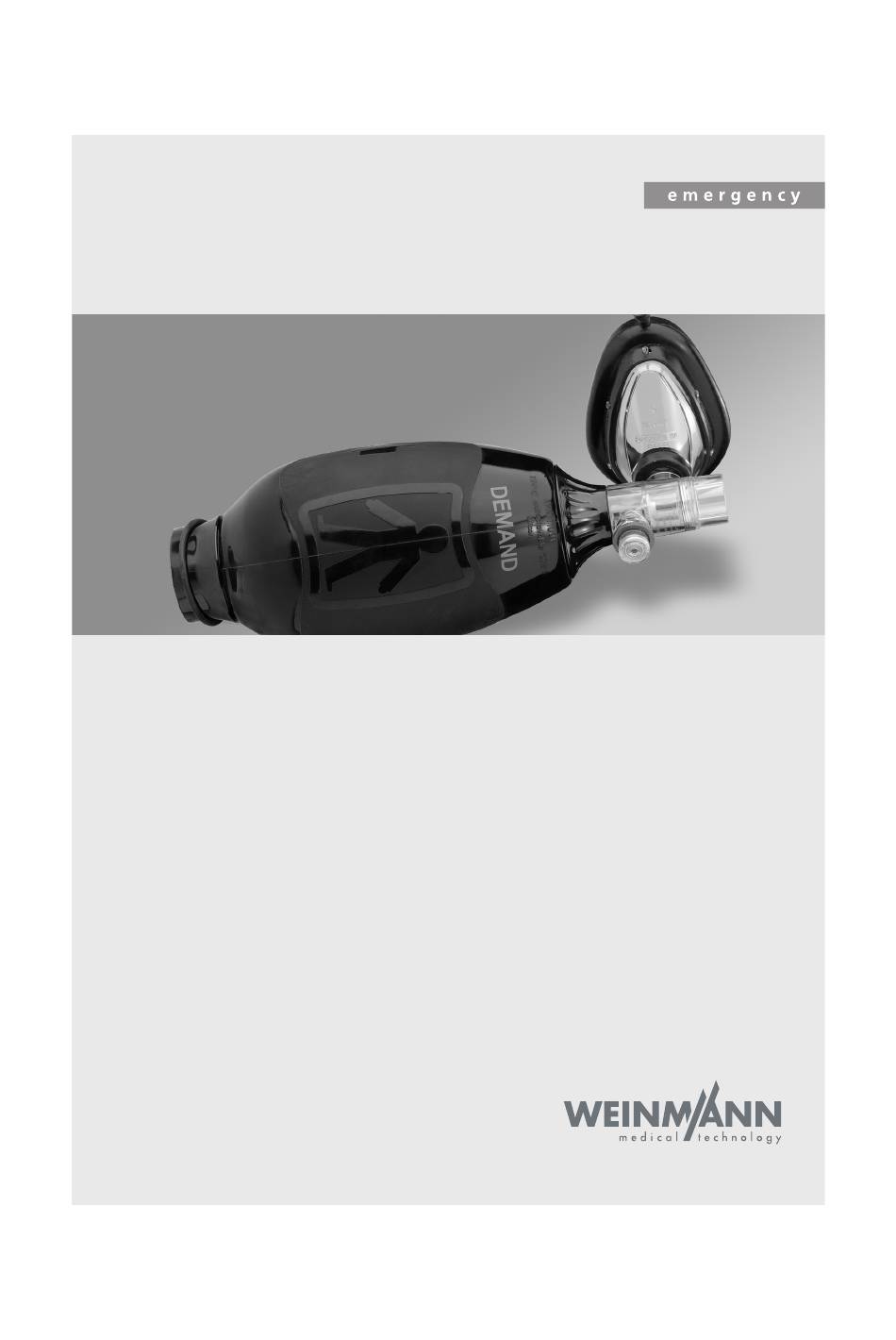

- Page 1 COMBIBAG Resuscitator WM 11000 Description and Operating Instructions...
- Page 2 Overview COMBIBAG Patient valve Safety valve Squeeze bag (compressable unit) Intake valve Accessories PEEP valve Oxygen reservoir DEMAND valve...
-
Page 3: Table Of Contents
Contents 1. Basic principle ......4 1.1 Purpose ......4 1.2 Function . -
Page 4: Basic Principle
1. Basic principle 1.1 Purpose The COMBIBAG is for the manual ventilation of chil- dren (from a body weight of 10 kg) and adults via a face mask or endotracheal tube. The respiratory air can be enriched with oxygen. 1.2 Function On squeezing the bag, a volume of gas (air, air en- riched with oxygen or pure oxygen) is forced through the resuscitation valve into the patient’s lungs. -
Page 5: Special Features Of The Combibag
1.3 Special Features of the COMBIBAG COMBIBAG, the first manual resuscitator with segmental division for adults and chil- dren. Hitherto, at least 2 resuscitation bags were required to ventilate patients of all age groups, a child resuscita- tion bag and a large adult resuscitation bag. Now the special design featuring the COMBIBAG covers both functions. - Page 6 20 mbar resulting in regurgitation with following api- ration. Moreover, there is the risk with ventilation of children independant from face mask or endotracheal tube that high ventilation pressures may hurt the lungs. With the COMBIBAG 2-stage safety valve it is now possible to set a pressure limit: •...
-
Page 7: Description Of The Resuscitator
20 and 60. Because the safety valve can be accurately adjusted only by the manufacturer WEINMANN, replacement is possible only with delivery of a complete unit. Re- moval of the safety valve is not permitted. - Page 8 Squeeze bag The squeeze bag (compressable unit) is divided into segments by two asymmetrical troughs, marked with pictograms (symbol of a child and of an adult), and creates the gas volume required on squeezing the cor- responding segment. Intake valve The intake valve consists of: •...
-
Page 9: Safety Instructions
Oil and grease should not be used in conjunction with the resuscitation unit. • Not for infants and children with a body weight below 10 kg. • More copies of this operating instructions are avail- able from the manufacturer WEINMANN. Safety instructions... -
Page 10: Operating Instructions
4. Operating instructions 4.1 Introductory remarks Although it is commonly assumed that resuscitation should be carried out only after respiratory failure has been confirmed, it must be emphasized that it should be commenced as soon as symptoms such as: • cyanosis and/or •... -
Page 11: Guide Values For Ventilation
• Relief valve setting 20 mbar (20 cm H O): on clos- ing the inhalation passage with the ball of the left thumb and squeezing the bag with the right hand, air flows through the relief valve openings. • Relief valve setting 60 mbar (60 cm H O): on clos- ing the inhalation passage with the ball of the left thumb, the bag can only be squeezed under con-... -
Page 12: Mask Ventilation
cleared and the patients spontaneous breathing must be assisted or controlled if it is inadequate. 4.4 Mask ventilation Proceed as follows: • lay the patient on his back • extend the head and neck • pull the red ring on the COMBIBAG relief valve up- wards (pressure limit 20 mbar/cm H •... -
Page 13: Increasing The Oxygen Concentration
• Intubation • Press the red ring on the COMBIBAG relief valve downwards (pressure limit 60 mbar/cm H • Even with ventilation via an endotrachel tube, one should aim for a pressure limit of 20 mbar/cm H in order to limit the drop in the heart circulation time caused by increase in resistance in the pulmonary circulation. -
Page 14: Peep Ventilation
4.7 PEEP ventilation Many disturbances in lung function (disturbances in distribution, exudation, atelectasis, etc.) can be pre- vented, or their effects reduced, by application of a Positive-End-Expiratory-Pressure (PEEP). A PEEP valve can be fitted directly to the exhalation passage of the patient valve. 4.8 Volume measurement To prevent hypo- or hyperventilation in the case of pro- longed manual resuscitation with the COMBIBAG, a... -
Page 15: Hygienic Preparation
5. Hygienic preparation COMBIBAG should undergo hygienic purification af- Valve cage with ter every use. expiration cone Upon completion of the purification process, carry out a functional test. Patient valve Individual parts of the COMBIBAG resuscitator are made of silicon or polysufone. Safety valve Use soapy water to COMBIBAG and rinse under... -
Page 16: Cleaning During Use
5.1 Cleaning during use Should the valve become blocked as a result of regur- gitation, clean it as follows: • Unscrew the valve cage. • Clean the valve element and valve body with the finger or by gentle tapping. • Rapidly squeeze the bag several times to blow out any foreign particles. -
Page 17: Spare Parts
6. Spare parts 6.1 Standard scope of supply Item no.* Description of component Order no. COMBIBAG resuscitation bag for adults and WM 11090 children, without face masks COMBIBAG resuscitation bag for adults and WM 11020 children with 1 face mask, consisting of: –... -
Page 18: Accessories
Oxygen reservoir for COMBIBAG WM 11052 – *See illustration on page 21. The following combination units with adapter are available for WEINMANN COMBIBAG DEMAND resuscitation bags: Item no.* Description of component Order no. Spiracle demand valve with pressure tube WM 22127 1,500 mm, G 3/8”... -
Page 19: Spare Parts
Item no.* Description of component Order no. Ventilation mask, all-in-one, silicone – Size 5 WM 5084 – Size 4 WM 5085 – Size 3 WM 5083 – Size 2 WM 5092 – Size 1 WM 5091 – Size 0 WM 5090 Rendell-Baker ventilation mask, silicone: –... - Page 20 Item no.* Description of component Order no. Seal 30/35 x 0.5 mm WM 1145/82 Bellows WM 11001 Valve housing WM 11002 Ventilation valve, without safety valve WM 11003 – Guide stub WM 11004 Valve element WM 11006 Valve insert WM 11007 Inlet membrane WM 11008 Intake stub, inner part...
- Page 21 Spare parts...
-
Page 22: Technical And Performance Data
7. Technical and performance data COMBIBAG Classification acc. to EC directive 93/42/EEC Dimensions (L x D) 340 mm x 130 mm (inflated) Weight 390 g Scope of use: – Child grip 10 – 16 kg body weight – adult grip >16 kg body weight Pressure relief optionally 20 mbar and 60 mbar... - Page 23 Tidal volumes and respiratory frequencies (cycles per minute) The follwing frequencies and tidal volumes are ob- tained during ventilation with COMBIBAG: Cycles per min. Tidal volume in ml Child grip 2 fingers 3 fingers > 60 150 - 200 4 fingers 200 - 300 hand 300 - 500...
-
Page 24: Warranty
WEINMANN reserves the right to decide whether to eliminate defects, to deliver a defect-free item or to redu- ce the purchase price by a reasonable amount. • If WEINMANN rejects a claim against the warranty, it assumes no expense for transport between customer and manufacturer. •... -
Page 25: Declaration Of Conformity
9. Declaration of conformity WEINMANN Geräte für Medizin GmbH + Co. KG declares herewith that the product complies fully with the respective regulations of the Medical Device Direc- tive 93/42/EEC. The unabridged text of the Declara- tion of Conformity can be found on our website at www.weinmann.de... - Page 28 Weinmann Geräte für Medizin GmbH+Co.KG P.O.Box 540268 • D-22502 Hamburg Kronsaalsweg 40 • D-22525 Hamburg T: +49-(0)40-5 47 02-0 F: +49-(0)40-5 47 02-461 E: info@weinmann.de www.weinmann.de Center for Production, Logistics, Service Weinmann Geräte für Medizin GmbH+Co.KG Siebenstücken 14 D-24558 Henstedt-Ulzburg...
