Software Architecture

1 Software
This section describes the various software components of the Smart-Vue
monitoring system.
Architecture

1.1 Overview

The Smart-Vue system operates in a traditional client-server mode: the
Smart-Vue Client application installed on computers in the network
accesses and manages data stored on a common server.
The server's role is to collect data from a network of sensors monitoring
different physical parameters, such as temperature, differential pressure,
CO levels, and more. This data is logged and transmitted wirelessly by
2
Smart-Vue end-point modules to receivers connected to the server.

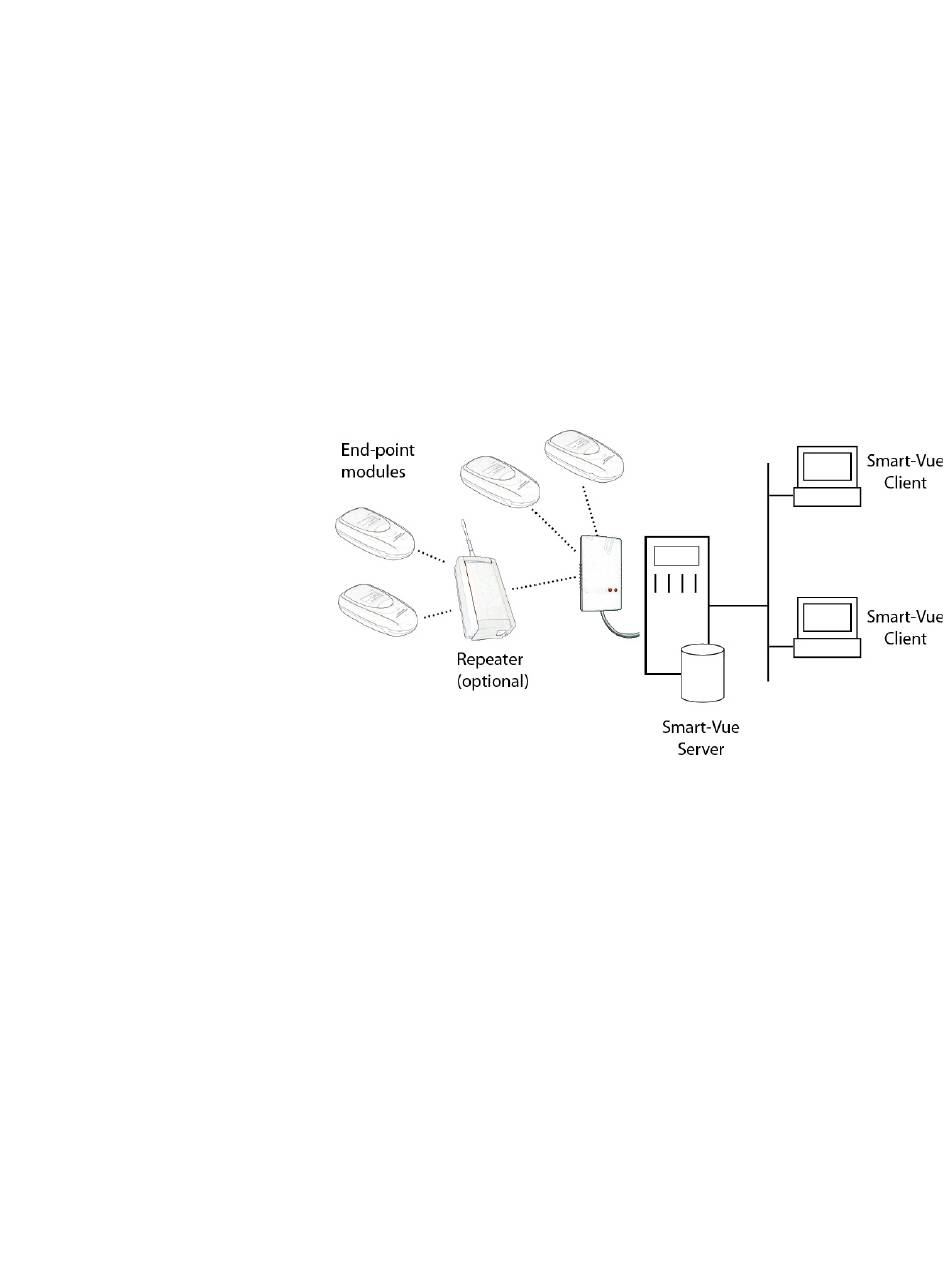

Figure 1. Sample network with client/server architecture and wireless
end-point modules
