Releasing Circuit Wiring

INPUT CIRCUIT WIRING: FM APPLICATIONS MUST HAVE CLASS A
INITIATING CIRCUITS ONLY AND 90 HOUR BATTERY STANDBY OPERATION
Only addressable M500S and MIX-M500SAP supervised output modules can be used as a
releasing circuit.
If the releasing circuit is wired as Class B, supervision of the solenoid coil is performed by the
MP-3500R/W Solenoid EOL.

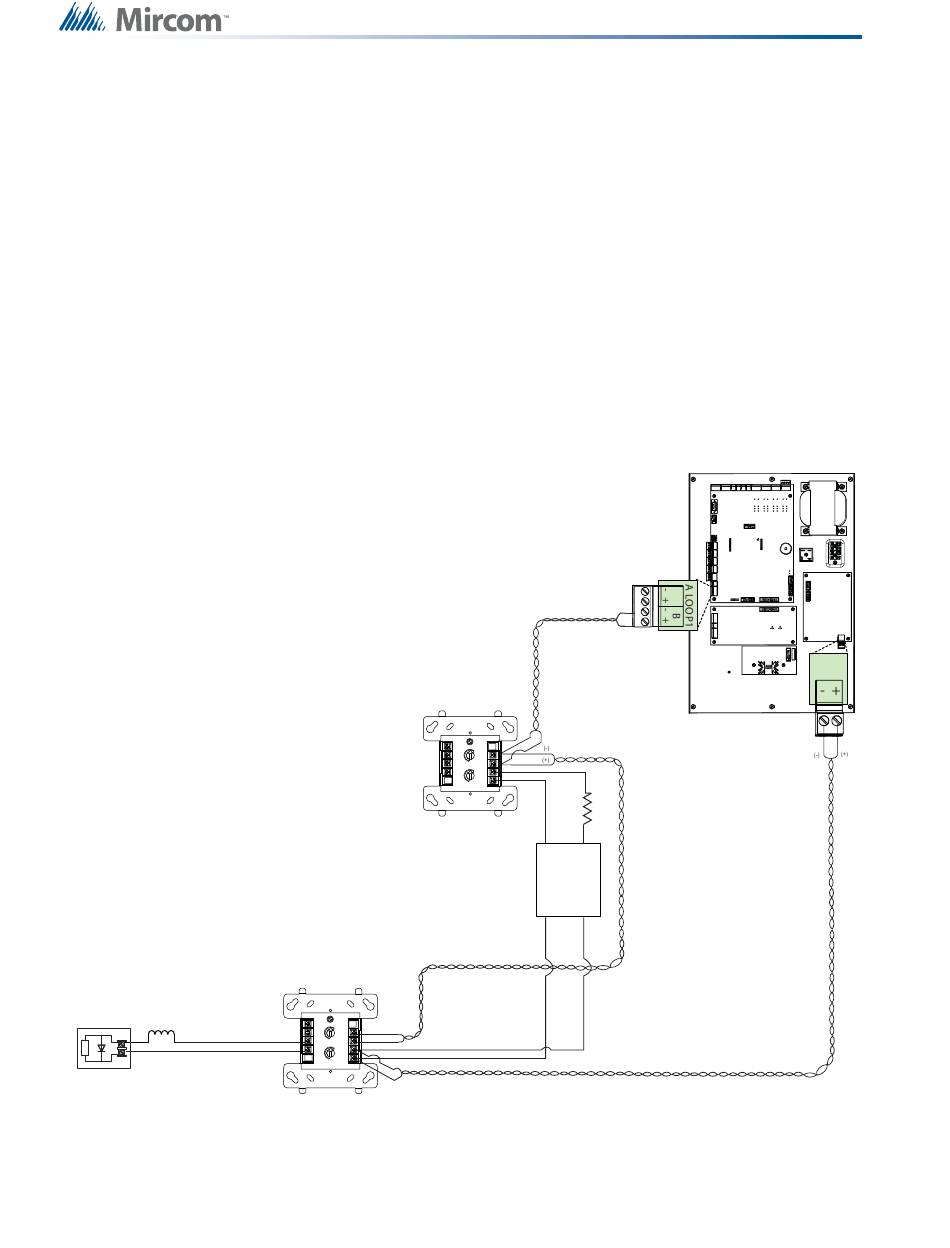

Wiring for the releasing circuit is shown in Figure 1.
Solenoid EOL module (MP-3500R/W) is used to supervise the solenoid coil. If the solenoid is
already fitted with the directional diode then only the 47K EOL resistor is used. The
supervisory current passes through the solenoid coil thus confirming the integrity of the
solenoid coil for open coil. The wiring is supervised for the open and short conditions.
2.1

Releasing Circuit Wiring - Class B/Style Y Wiring

WARNING!
DISCONNECT POWER TO ALL RELEASING
DEVICES BEFORE SERVICING THE PANEL
SOLENOID COIL
(-)
(+)
MP-3500R/W
SOLENOID EOL MODULE
Figure 1
6
MIX-M500MAP
MONITOR MODULE
LOOP
9 0
6 7 8 9
5 ( - )
4
8 1
3
2 ( + )
7 2
1
0
TENS
6 7 8 9
6 5 3
4
3
5 4
2
1
0
ONES
LOOP ADDRESS
MIX-M500SAP
SUPERVISED
CONTROL MODULE
Releasing Circuit Wiring - Class B or Style Y Wiring
SLC LOOP WIRE
9 0
6 7 8 9
5
8 4 1
3
2
7 1 2
0
TENS
6 7 8 9
6 5 3
4
3
5 4
2
1
0
ONES
ADDRESS
EOLR
BLACK RED
EOLR-1A EOL
SUPERVSION
RELAY
VIOLET VIOLET
ALL WIRING SHOWN IS SUPERVISED AND POWER LIMITED
Operating the Panel
TS1
POWER LINE 24 VDC
TWISTED PAIRS RECOMMENDED
SPECIAL APPLICATION PER UL864,
POWER LIMITED PER NFPA 70.
LISTED FOR FIRE PROTECTION
WITH BATTERY BACKUP.
