Deluge, 2 Input Type Activation Application

Devices
SLC Loop
Smoke Detector
Heat Detector
Deluge System
Addressable Module
Manual Release Switch
Logic
Logic Path
AND Gate
Both inputs are required.
NOT Gate
Input is required to be not
activated.
OR Gate
If either input is activated
release occurs.
Delay Timer
Use FX-3500RCU
Configurator to set type.

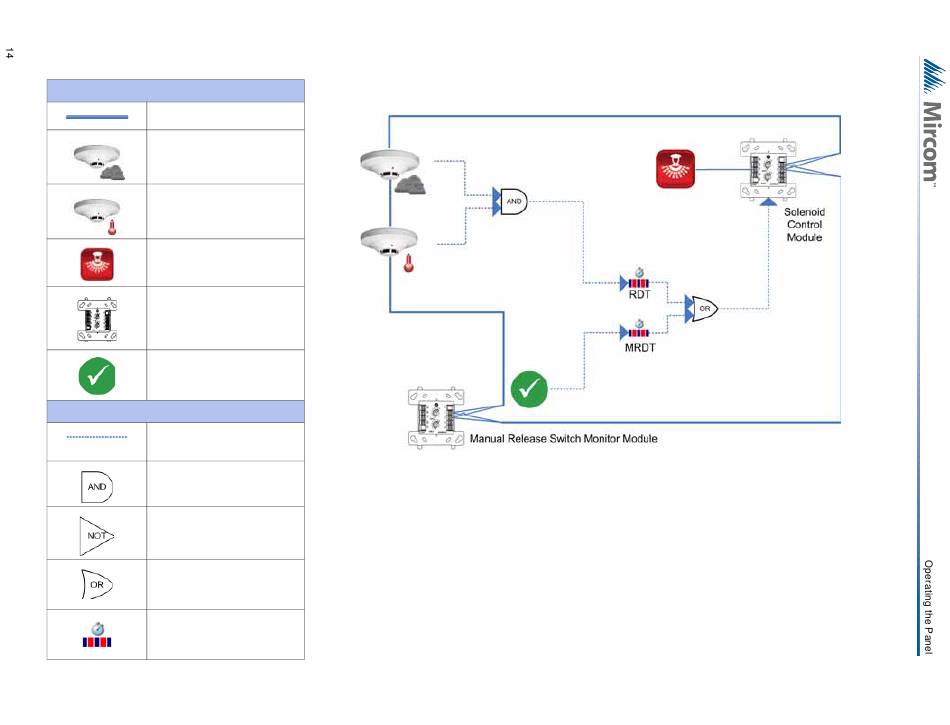

Deluge commences if the following events occur:
• two detectors of different types correlated to the Hazard Zone enter alarm
• the delay timer expires
• the Manual Release Switch is pressed
• the delay timer expires.
OR
