ETC Source Four LED S4LEDLS Manual

ETC
®
G e n e r a l i n f o r m a t i o n

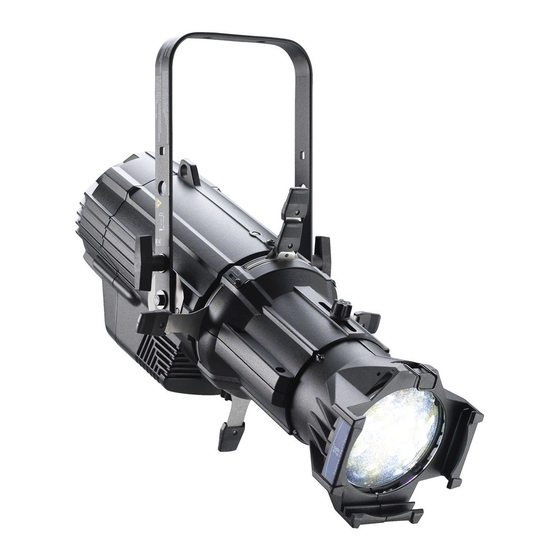

the Source Four LED is the merging of the Source four
product lines. it offers the high-quality optics and control of a Source
four with the grace and powerful color control of Desire.
Source Four LED Lustr+ fixtures are based on the x7 Color System
utilizing six colors plus high-intensity white to achieve true, usable
broad-spectrum color. rich, vibrant colors as well as subtle theatrical
tints, are all possible with this color-changing fixture. explore new
opportunities by pairing with incandescent light from the etC's
original Source four line of fixtures to provide maximum flexibility
and range.
Source Four LED Daylight units are high-output non-variable white
light fixtures with a 5600K color temperature.
Source Four LED Tungsten models are non-variable white light
fixtures with a 3000K color temperature.
lustr+, Daylight and tungsten light engines work with all Source four
lens tubes to deliver a high-quality controllable beam of leD light.
for the best results, it is highly recommended that eDlt versions are
used. We also offer a special leD-only version of the 50° lens tube.
o r D e r i n G i n f o r m a t i o n
® and Desire ® Source Four LED Light Engine with Shutter Barrel
(for use with fixed-field lens tubes only)
MoDEL
,
™
S4leDlS
S4leDtS
S4leDDS
Source Four LED Light Engine Body
(for use with zoom lens tubes and retrofit of existing fixtures)
MoDEL
S4leDl
S4leDt
S4leDD
Color options: -1 = White, -5 = Silver Gray/Custom Colors
fixture ships with a soft-focus diffuser in the gobo holder and a five-foot PowerCon
power input cable with connector of choice. See page 2 for connector options.
please note: Lens tubes to be ordered separately.
1 of 5
Source Four LED
Source Four LED Series
DEScripTion
Source four leD lustr+ with shutter barrel, black
Source four leD tungsten with shutter barrel, black
Source four leD Daylight with shutter barrel, black
DEScripTion
Source four leD lustr+ – body only, black
Source four leD tungsten – body only, black
Source four leD Daylight – body only, black
™
