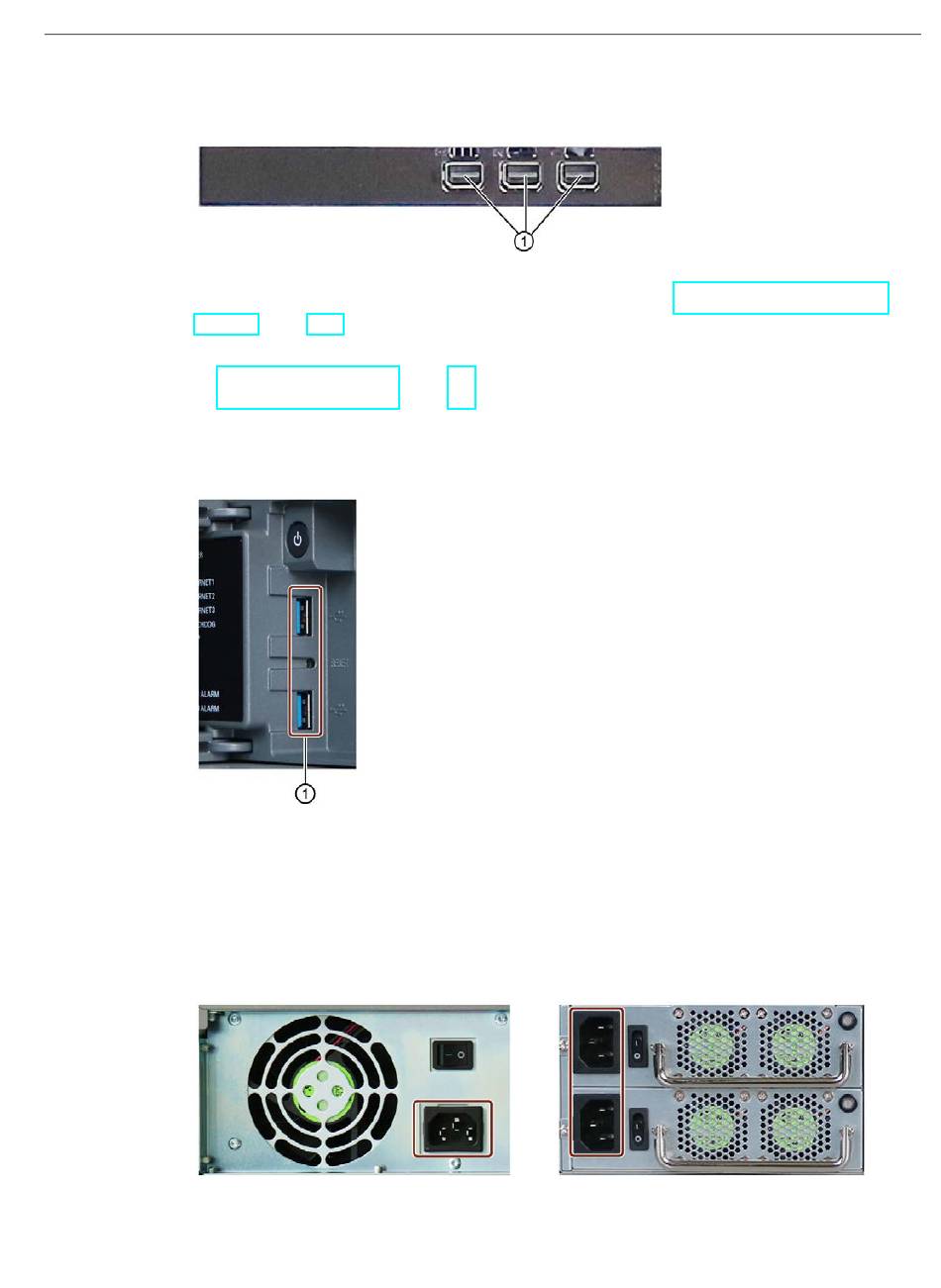

Interfaces on the optional graphics card
①
You can find information on the optional graphics card under "Technical specifications of
graphic (Page 151)".
Further connection options for monitors to this interface:
● Hardware accessories (Page 29)
Interfaces at front of device
The interfaces at the front of device are located behind the front door.
①
1.4.5.2

Power supply connections

Socket for power plug
Simple power supply
SIMATIC IPC647E
Operating Instructions, 11/2018, A5E45589180-AA
3 x Mini Display Port
2 × USB 3.1 Gen 1 Connectors for USB devices, backwards compatible with
USB 3.0/2.0/1.1
1.4 External design of the device
Sockets for power plug
Redundant power supply
Product description
21
