Omega Multi-format 4x2 matrix switcher with HDMI, USB-C,
and DisplayPort inputs, plus HDMI and HDBaseT outputs
AT-OME-MS42

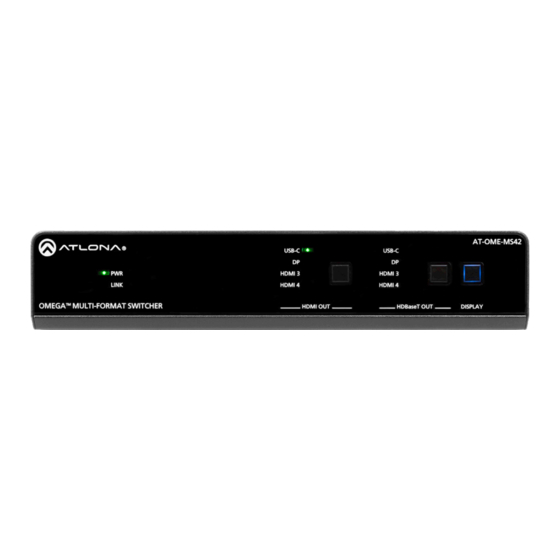

The Atlona AT-OME-MS42 is a 4x2 matrix switcher with HDMI, USB-C, and DisplayPort inputs,
plus HDMI and HDBaseT outputs. Part of the Omega™ Series of integration products for modern
AV communications and collaboration, the OME-MS42 is HDCP 2.2 compliant and features
HDBaseT extension for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and
USB over distances up to 330 feet (100 meters). All inputs and the local HDMI output support
4K HDR and 4K/60 4:4:4 at HDMI data rates up to 18 Gbps. Additionally, 4K downscaling to
1080p @ 60, 30, or 24 Hz is available for the HDMI output when connected to an HD sink. The
integrated USB extension addresses the challenge of connecting between USB devices at
remote locations, and is ideal for software video conferencing and touch or interactive displays.
The OME-MS42 includes USB 2.0 and USB-C interfaces for three host PCs, plus two peripheral
devices such as a camera, microphone, speakerphone, or keyboard and mouse. It is ideal for
video conferencing and many other 4K presentation applications with the OME-EX-RX receiver
and OME-SR21 scaling receiver.
Package Contents

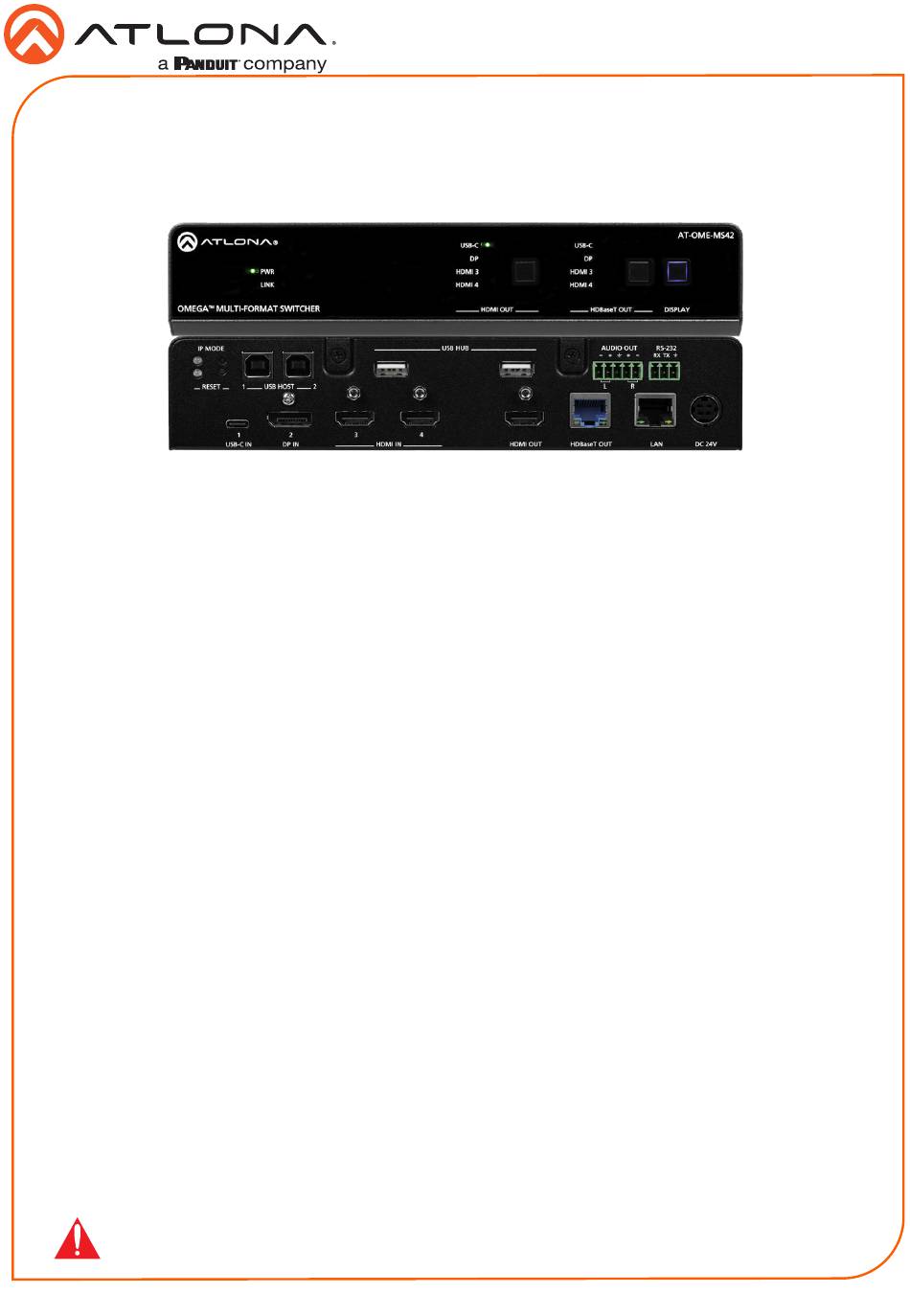

1 x AT-OME-MS42
1 x Captive screw connector, 5-pin
1 x Captive screw connector, 3-pin
1 x USB-C cable
2 x Mounting plate
4 x Mounting screw
1 x Long rack ear
1 x Short rack ear
4 x Feet w/rubber grips
1 x 24V DC power supply
1 x IEC power cord
1 x Installation Guide
IMPORTANT: Visit https://atlona.com/product/AT-OME-MS42 for the latest firmware
updates and User Manual.
1
Installation Guide
AT-OME-MS42
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlona AT-OME-MS42
Summary of Contents for Atlona AT-OME-MS42
-
Page 1: Package Contents
DisplayPort inputs, plus HDMI and HDBaseT outputs AT-OME-MS42 The Atlona AT-OME-MS42 is a 4x2 matrix switcher with HDMI, USB-C, and DisplayPort inputs, plus HDMI and HDBaseT outputs. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-MS42 is HDCP 2.2 compliant and features HDBaseT extension for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). -
Page 2: Panel Descriptions
Installation Guide AT-OME-MS42 Panel Descriptions AT-OME-MS42 USB-C USB-C HDMI 3 HDMI 3 LINK HDMI 4 HDMI 4 HDMI OUT HDBaseT OUT OMEGA MULTI-FOMAT SWITCHER USB HUB AUDIO OUT RS-232 IP MODE RX TX RESET USB HOST USB-C IN DP IN... -
Page 3: Mounting Instructions
Mounting Instructions The AT-OME-MS42 can be mounted in different ways, based on the number of units that are being installed. The AT-OME-MS42 may also be mounted in a rack or on/under any flat surface. Single-unit rack installation Attach the included small rack ear to one side of the AT-OME-MS42, using the included screws. - Page 4 Installation Guide AT-OME-MS42 Dual-unit rack installation Turn both units upside-down on a flat surface, next to each other, as shown. Position the included mounting plate over the pre-drilled holes on the bottom of the enclosure. When attaching the mounting plate, the countersink bevels on the mounting plate should face upward.
- Page 5 Installation Guide AT-OME-MS42 Flat surface Turn the unit upside down a flat surface. Position the included mounting plates over the pre-drilled holes on the bottom of the enclosure. When attaching mounting plates, the countersink bevels on the mounting plates should face upward.
- Page 6 Connect the included 24V DC power supply to a compatible power outlet. DHCP By default, the AT-OME-MS42 is set to DHCP mode. In this mode, when the AT-OME-MS42 is connected to the Local Area Network (LAN), it will automatically be assigned an IP address by the DHCP server (if available).
- Page 7 Press and hold the IP MODE button for 5 seconds to switch to static IP mode, the LED will blink 2 times when it goes into Static IP mode. In this mode, the AT-OME-MS42 will be set to the following: IP address: 192.168.1.254...
- Page 8 • © 2019 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and...
