User Manual
5x5 Professional VGA with Audio Matrix Switch
AT-VGA0505
Toll free: 1-877-536-3976
www.atlona.com
Local: 1-408-962-0515

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-VGA0505 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlona AT-VGA0505

Summary of Contents for Atlona AT-VGA0505

  • Page 1 User Manual 5x5 Professional VGA with Audio Matrix Switch AT-VGA0505 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...

  • Page 2: Table Of Contents

    5.1 Front Panel ..............4 5.2 Rear Panel ..............4 6. Channel Control ..............6 7. Installation ..............11 8. Safety Information ..............12 9. Warranty ..............13 10. Atlona Product Registration ..............14 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...

  • Page 3: Introduction

    Atlona Technologies AT-VGA0505 is an 5 input 5 output commercial VGA with audio ma- trix switcher. The AT-VGA0505 is one of the world’s advanced matrix switchers. It is capable of be- ing controlled though RS-232 via software included or via a third party control system. Switch- er is designed to handle any resolution up to 1920x1200 or 1080p without any signal degradation.

  • Page 4: Specifications

    SPECIFICATIONS *Component and composite inputs/outputs can be done by using VGA-to-component breakout cables to connect to the VGA sockets. For S-Video inputs/outputs, please find a VGA-to-S-video adapter to connect to the VGA sockets. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...

  • Page 5: Panel Description

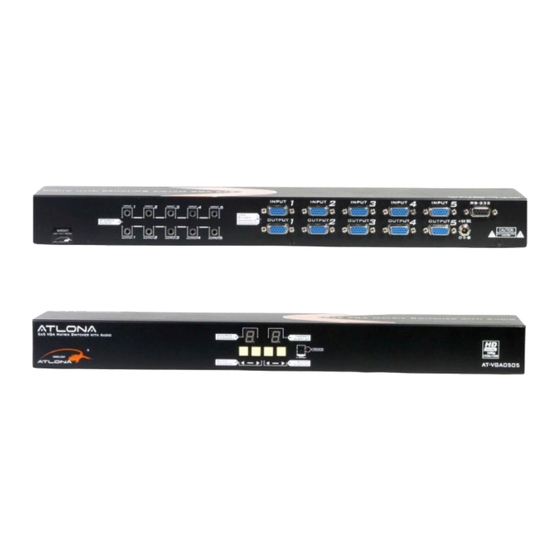

    6. IR SENSOR: Receive IR commands from the IR remote control 7. Power ON/OFF indicator 8. TARGET DISPLAY: Display of selected output display channel Rear Panel Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 6 11. INPUT1 — INPUT5: Analog video input channels 12. OUTPUT1 — OUTPUT5: Analog video output channels 13. +5V DC: Connect to 5V DC power supply unit 14. RS-232: Connect to a PC for software operation or firmware update Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...

  • Page 7: Channel Control

    COM port available. Open Open the COM port after scan to establish the connection between PC and the matrix. Close Release the COM port after scan. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 8 Input Channel Selection Click on the Input Channel 1-5 buttons to select the input channel. Then a pop-up menu will show up on the selected input channel for you to choose the desired output channel. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 9 Click on the Output Channel 1- Output Channel 5 buttons to select the output channel. Then a pop-up menu will show up on the selected output channel for you to choose the desired input channel. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 10 Input 3 Output 2 Input 3 Output 4 Input 4 Output 2 Input 4 Output 4 Input 5 Output 2 Input 5 Output 4 Method C: Operation via IR Remote Control with IR Discrete Code Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 11 Source Channel Display Channel Input 1 Output 1 Input 2 Output 2 Input 3 Output 3 Input 4 Output 4 Input 5 Output 5 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...

  • Page 12: Installation

    INSTALLATION Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...

  • Page 13: Safety Information

    It may also cause damage to your AT-VGA0505. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.

  • Page 14: Warranty

    Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence.

  • Page 15: Atlona Product Registration

    ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
