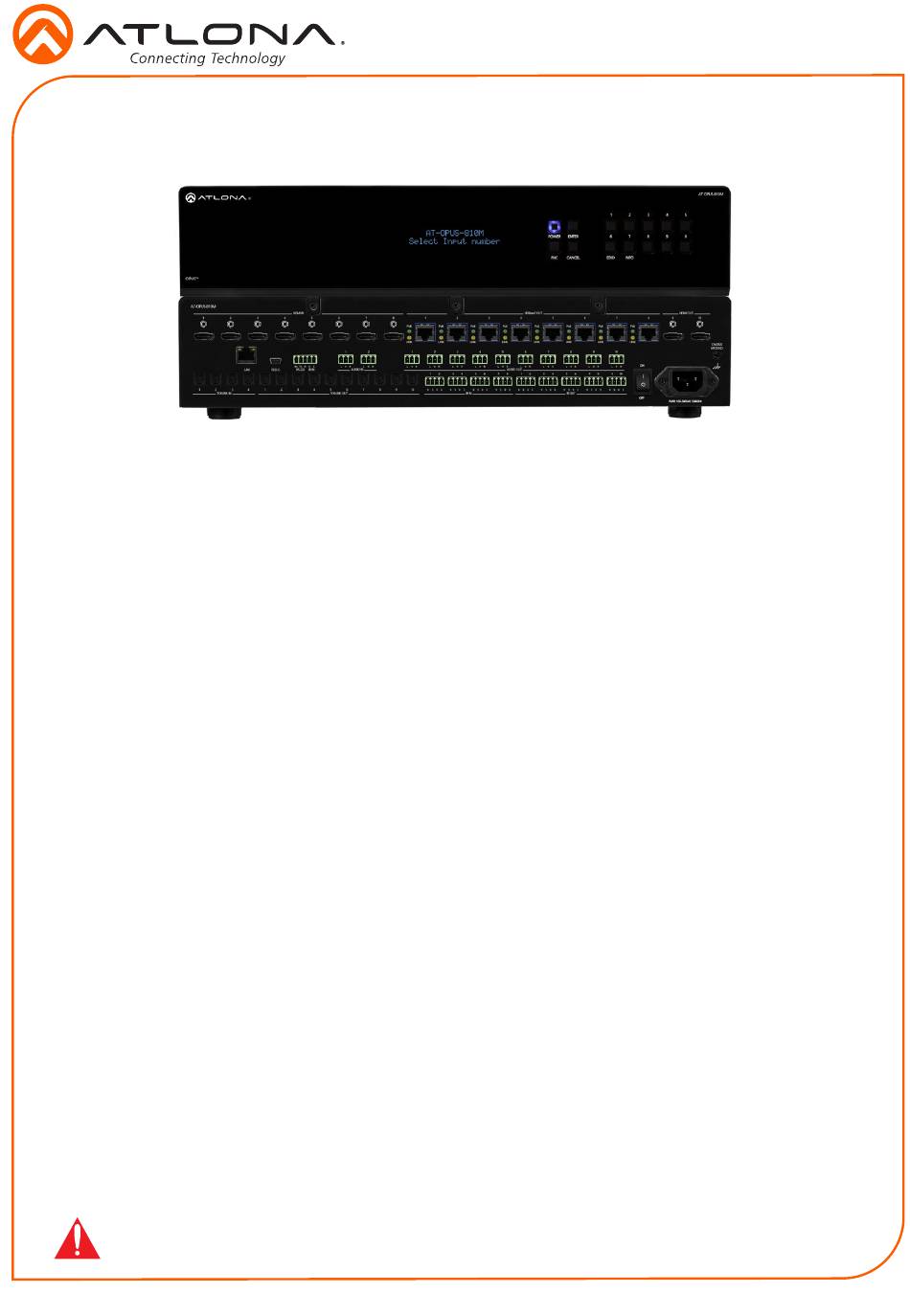

Opus 4K HDR HDMI to HDBaseT 8x10 Matrix Switcher
AT-OPUS-810M
The Atlona AT-OPUS-810M is part of the Opus™ Series of HDMI® to HDBaseT™ matrix switch-
ers for high dynamic range (HDR) formats. The 8x10 matrix switcher is HDCP 2.2 compliant and
support 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18
Gbps. The Opus Series enables flexible routing to HDBaseT outputs plus two additional HDMI
outputs, and is compatible with the Atlona AT-OPUS-RX receiver or AT-JUNO-451-HDBT switch-
er for transmission of HDMI, Ethernet pass-through, and bidirectional IR and RS-232 control
signals up to 330 feet (100 meters) over CAT6a/7 cable. Visually lossless VESA Display Stream
Compression (DSC) enables HDR and 4K/60 4:4:4 signal extension over HDBaseT with little to
no latency. Opus matrix switchers are equipped with a comprehensive host of audio and control
system integration features, making them ideal for a wide range of residential and commercial
applications requiring multi-zone AV distribution.
Package Contents
AT-OPUS-810M
1 x AT-OPUS-810M
1 x Captive screw connector, 5-pin
9 x Captive screw connector, 4-pin
12 x Captive screw connector, 3-pin
1 x Pair rack mount ears
4 x Feet w/screws
1 x IEC power cord
1 x IR remote control
1 x Installation Guide
IMPORTANT: Visit https://atlona.com/product/AT-OPUS-810M for the latest firmware
updates and User Manual.
1
Installation Guide
AT-OPUS-810M
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlona Opus Series
Summary of Contents for Atlona Opus Series
-
Page 1: Package Contents
Opus 4K HDR HDMI to HDBaseT 8x10 Matrix Switcher AT-OPUS-810M The Atlona AT-OPUS-810M is part of the Opus™ Series of HDMI® to HDBaseT™ matrix switch- ers for high dynamic range (HDR) formats. The 8x10 matrix switcher is HDCP 2.2 compliant and support 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. -
Page 2: Panel Descriptions
Installation Guide AT-OPUS-810M Panel Descriptions AT-OPUS-810M POWER ENTER CANCEL EDID INFO OPUS AT-OPUS-810M HDMI IN HDBaseT OUT HDMI OUT LINK LINK LINK LINK LINK LINK LINK LINK CHASSIS GROUND DEBUG RS-232 IR IN AUDIO IN AUDIO OUT TOSLINK IN TOSLINK OUT IR IN IR OUT PWR: 100-240VAC 50/60Hz... -
Page 3: Mounting Instructions
IR IN is connected by a ground and RS-232 cable and connect as signal wire. Use with 3rd party control RX (receive), TX (transmit) and systems. For easy termination, Atlona (Ground). recommends using the 2 meter IR cable AT-LC-CS-IR-2M. 4-pin captive screw connectors have been included for IR routing. - Page 4 Installation Guide AT-OPUS-810M A SS P o E P o E LI N P o E LI N B a se P o E LI N P o E LI N P o E LI N P o E LI N D IO IR O -8 1...
- Page 5 Installation Guide AT-OPUS-810M Installation Connect up to 8 HDMI sources to the HDMI IN ports. Connect up to 8 HDBaseT receivers (AT-OPUS-RX or AT-JUNO-451-HDBT) to the HDBaseT OUT ports. Connect up to 2 local HDMI displays to the HDMI OUT ports. Connect up to 4 digital audio sources to the TOSLINK IN ports.
- Page 6 Click the Login button. AMS 2.0 For full configuration of the OPUS, AMS 2.0 is available from https://atlona.com/AMS for free. Two options can be used for installation: The free Linux based software download or the easy to install server hardware (AT-AMS-HW).
-
Page 7: Connection Diagram
Installation Guide AT-OPUS-810M Connection Diagram AT-VGW-250 TE W Media Player DI O EL OC SE T-T Control System Cable Box AV LAN AT-OPUS-810M AS SIS Po E Po E Po E Ba seT Po E BluRay Player AT-OPUS-RX Po E Po E Po E IR OU... - Page 8 • © 2017 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and...
