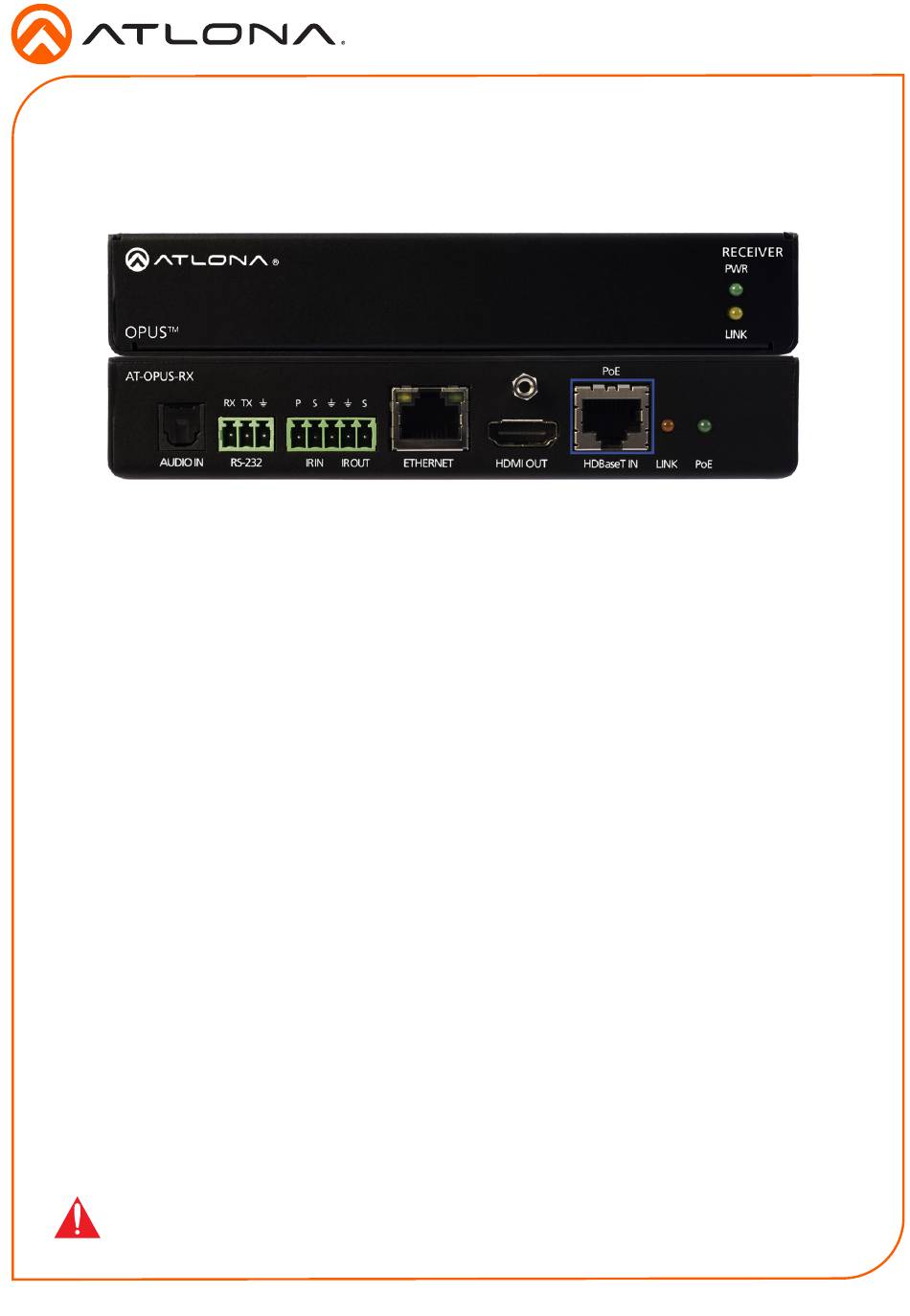

4K HDR HDMI Over 100 M HDBaseT RX for Opus Series
Matrix Switchers
AT-OPUS-RX

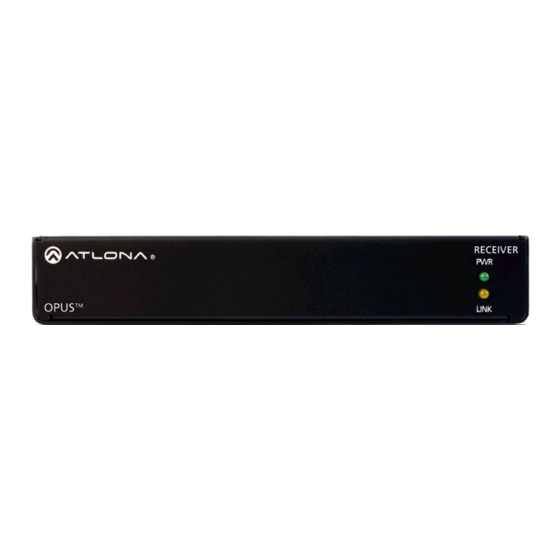

The Atlona AT-OPUS-RX is an HDBaseT receiver for high dynamic range (HDR) formats, designed
for use with the Opus™ Series of HDMI® to HDBaseT™ matrix switchers. The OPUS-RX is
HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well
as HDMI data rates up to 18 Gbps. It receives HDMI, Ethernet pass-through, and bidirectional
IR and RS-232 control signals up to 330 feet (100 meters) over CAT6a/7 cable. Visually lossless
VESA Display Stream Compression (DSC) enables HDR and 4K/60 4:4:4 video signal extension
over HDBaseT with little to no latency. For additional integration convenience, the receiver is
remotely powered by an Opus Series matrix switcher through Power over Ethernet (PoE). The
OPUS-RX supports the HDMI Audio Return Channel (ARC), with the ability to transmit digital
audio from a television back to an AV receiver through the matrix switcher.
Package Contents
1 x AT-OPUS-RX
2 x Mounting brackets
4 x Mounting screws
1 x IR Emitter
1 x 3-pin captive screw connector
1 x 5-pin captive screw connector
1 x Installation Guide
IMPORTANT: Visit http://www.atlona.com/product/AT-OPUS-RX for the latest firmware
updates and Installation Guide.
1
Installation Guide
AT-OPUS-RX
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlona AT-OPUS-RX
Summary of Contents for Atlona AT-OPUS-RX
-
Page 1: Package Contents
Matrix Switchers AT-OPUS-RX The Atlona AT-OPUS-RX is an HDBaseT receiver for high dynamic range (HDR) formats, designed for use with the Opus™ Series of HDMI® to HDBaseT™ matrix switchers. The OPUS-RX is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. -
Page 2: Panel Descriptions
Installation Guide AT-OPUS-RX Panel Descriptions RECEIVER OPUS LINK AT-OPUS-RX RX TX AUDIO IN RS-232 ETHERNET HDMI OUT HDBaseT IN LINK DEBUG IR IN IR OUT 9 10 11 POWER Ethernet This LED indicator glows solid green when the Connect a LAN cable from this port to either a unit is powered. -
Page 3: Mounting Instructions
RX (receive), TX (transmit) and (Ground). Mounting Instructions The AT-OPUS-RX includes two mounting brackets and four mounting screws, which can be used to attach the units to any flat surface. Remove the top 2 case screws on the side of the unit. -
Page 4: Cable Recommendation Guidelines
Installation Guide AT-OPUS-RX Mount the unit using the oval-shaped holes, on each mounting bracket. If using a drywall surface, a #6 drywall screw is recommended. NOTE: Mounting brackets can also be inverted to mount the unit under a table or other flat surface. -
Page 5: Installation
Installation Guide AT-OPUS-RX Installation Connect an HDMI display to the HDMI OUT port. Connect a 568B Ethernet cable from the OPUS matrix to the HDBaseT IN port. Connect an Ethernet cable from the LAN port to a network switch or display. - Page 6 Installation Guide AT-OPUS-RX Notes:...
- Page 7 Installation Guide AT-OPUS-RX Notes:...
- Page 8 • © 2018 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and...
