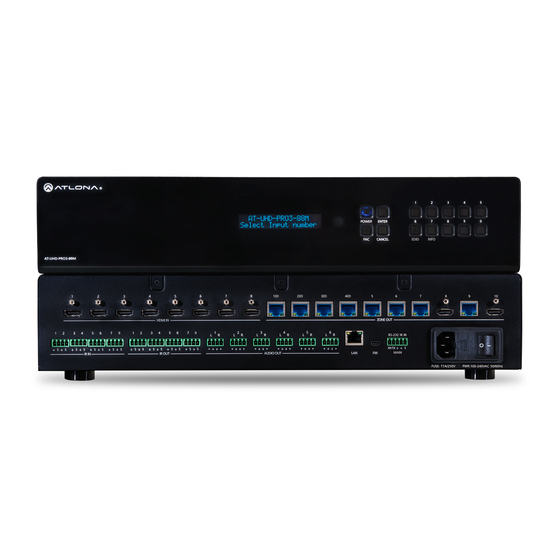

- Page 1 4K/UHD Dual-Distance 8x8 HDMI to HDBaseT Matrix Switcher with PoE AT-UHD-PRO3-88M User Manual Please check http://www.atlona. com/UHD-PRO3-88M.html for the most recent firmware update or manual. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
12. RS-232 ................. 21-23 13. IR Remote Control ................. 23 14. Captive Screw ................. 24 15. Specifications ................. 25 16. Safety Information ................. 26 17. Warranty ................. 27-28 18. Atlona Product Registration ................. 28 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
• Use a component surge suppressor with line conditioning for best results. Note: Atlona’s warranty does not cover damage due to electrical disturbances. A component surge suppressor with line conditioning is highly suggested, especially in areas with electrical storms. -
Page 4: Panel Descriptions
Panel Description Front Panel POWER ENTER CANCEL EDID INFO AT-UHD-PRO3-88M 1. IR Receiver Window - Receives the signal from the included IR Hand Held Remote Control or 3rd HDMI IN ZONE OUTPUTS party controller RS-232 IR IN 2. Function Button - Select for command options. -
Page 5: Back Panel
POWER ENTER CANCEL EDID INFO Back Panel AT-UHD-PRO3-88M HDMI IN ZONE OUTPUTS RS-232 IR IN RX TX IR IN IR OUT AUDIO OUT MAIN FUSE: T 4A / 250V PWR: 100-240VAC 50/60Hz 1. HDMI Input - Connect HDMI sources to these ports Ex. -
Page 6: Category Cable
Using the wrong size of connectors may result in interference causing loss of signal. Important! “EZ RJ45 connectors” are not recommended with HDBaseT extenders. Doing so may result in stray EMI/RFI signals to be picked up and interfere with audio and video transmission. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 7: Captive Screw Audio
Important! When terminating cables, please ensure exposed adjacent wires do not touch. This may result in a short that can damage connected devices. UNBALANCED For an easier and time saving solution for analog audio, the optional Atlona Captive Screw Ready 2 Channel Unbalanced Audio Cable features pre-stripped wires at one end and RCA (AT-LC-CS-2CH-2M) connectors at the other end. -
Page 8: Connection Diagram
ENTER Multi-channel Zone Amplifier RS-232 IR IN IR OUT HDBaseT IN HDMI OUT Game Console CANCEL EDID INFO AT-UHD-PRO3-88M HDMI IN ZONE OUTPUTS RS-232 IR IN RX TX IR IN IR OUT AUDIO OUT MAIN FUSE: T 4A / 250V... -
Page 9: Button Set Up
Matrix Front Panel Functions The AT-UHD-PRO3-88M’s front panel has 3 functions: I/O control, EDID, and matrix settings. The following sections go over step by step setup & control. I/O Control To route an input to an output I.E. Input 1 to output 2... - Page 10 4K/UHD-2ch 4K/UHD-Dolby TrueHD Output 1 Input 1 Blu-ray player POWER ENTER 1080p-2ch CANCEL EDID INFO Output 2 AT-UHD-PRO3-88M 4K/UHD - Dolby TrueHD Output 3 1080p-2ch HDMI IN ZONE OUTPUTS Input 2 4K/UHD RS-232 IR IN RX TX Set top box...
- Page 11 EDID 13: 3840x2160 2CH audio ATL UHD 2CH EDID 14: 3840x2160 multi-channel audio 7.1* ATL UHD MultiCH * Recommended EDID for AVR use ** Recommended EDID for DVI projectors use home screen AT-UHD-PRO3-88M Select Function 1 Copy Output EDID ---> ---> ---> --->...
-
Page 12: Matrix Status
When installing or troubleshooting it’s important to verify settings, or be able to come back to a project and see how it was set up. The AT-UHD-PRO3-88M matrix settings are viewable through the front panel display. View current I/O settings, firmware version, IP, MAC Address, and the RS- 232 baud rates of not just the matrix but output zones as well. -
Page 13: Webgui
IP Address Browser WebGUI Atlona has created an easy to use WebGUI for changing settings and controlling the matrix. To begin, plug a LAN cable into the matrix and your network router, then type the IP address of the matrix into a web browser... - Page 14 The information displayed will help figure out if the matrix is up to date, how long it has been running, and other key information. The Download Log button is for Atlona Tech Support Team only. Tech Support may request the log be sent to them for more in depth troubleshooting.
- Page 15 The firmware page displays the matrix, HDBaseT transmitter chips, and HDBaseT receivers firmware version and provides an easy way to update. Download the most current firmware from http://atlona.com/UHD-PRO3-88M.html. Once the firmware is on the computer use the browse button to select the correct file. Press the update button and a progress bar will display.
- Page 16 Users will not have the ability to access this page. Admin username and password can also be changed. (default username=”root” and password=”Atlona”) Be sure to write this information down as admin is the only profile allowed to add/remove users. Toll free: 1-877-536-3976 atlona.com...
- Page 17 HDBaseT output Off - Any of the connected inputs are selectable from the drop down menu. The HDMI port will output audio and video from the source to a local display. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 18 Note: Switching does not occur during the set up and labeling of route memory. To apply route memory to the matrix: Select the route memory # from the memory selection drop down menu and press the ‘Select’ button. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 19 The HDCP page provides a quick way to see whether a display is HDCP compliant or not and the version supported. This page will give multiple status readouts: No Connection, Compliant 1.X, Compliant 2.X, and Non-Compliant. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 20 The audio page supports adjustment of 5 band EQ for the analog audio outputs ensuring the best audio performance for each zone. 5 band frequency options at 63Hz, 250Hz, 1kHz, 4kHz, and 8kHz as well as zone output volume and mute. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 21: Rs-232
Bits Per Second: 115200, Data Bits: 8, Parity: None, Stop Bits: 1 and Flow Control: None. (see picture C) Set up is done and any hyperterminal program may be used to control the UHD-PRO3 now. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 22 Each command or feedback is terminated with a carriage return. Note: If the command fails or is incorrect the feedback should be “Command FAILED” To help with zone troubleshooting the matrix will broadcast “#*PORTXX_[feedback]” when receiving any feedback from any zone. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 23: Ir Remote Control
Volume control. Adjust analog audio output volume up and down or mute. AT-MRC Note: Do not use any other battery than what is provided by Atlona. If the battery does not work, please contact Atlona for a replacement. Toll free: 1-877-536-3976 atlona.com... -
Page 24: Captive Screw
: signal and ground. AT-LC-CS-IR-2M sold separately The signal wire is red and ground wire is black. The IR cable will plug into the IR IN ports and connect to third party control systems. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 25: Specifications
H x W x D w/rack ears 88.63 x 482.60 x 301.63 (mm) 3.49 x 19.00 x 11.88 (inch) Rack Unit Weight Device 5.18 kg 11.4 lbs Certification Product CE, FCC, RoHS, RCM, TUV *4096x2160@50/60Hz & 3840x2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 26: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 27: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 28: Atlona Product Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
