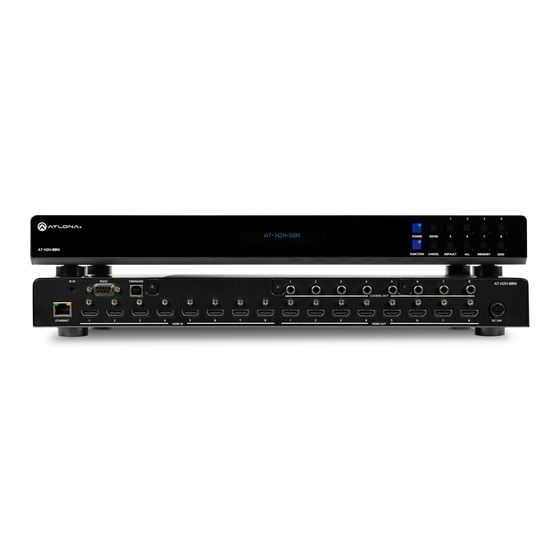

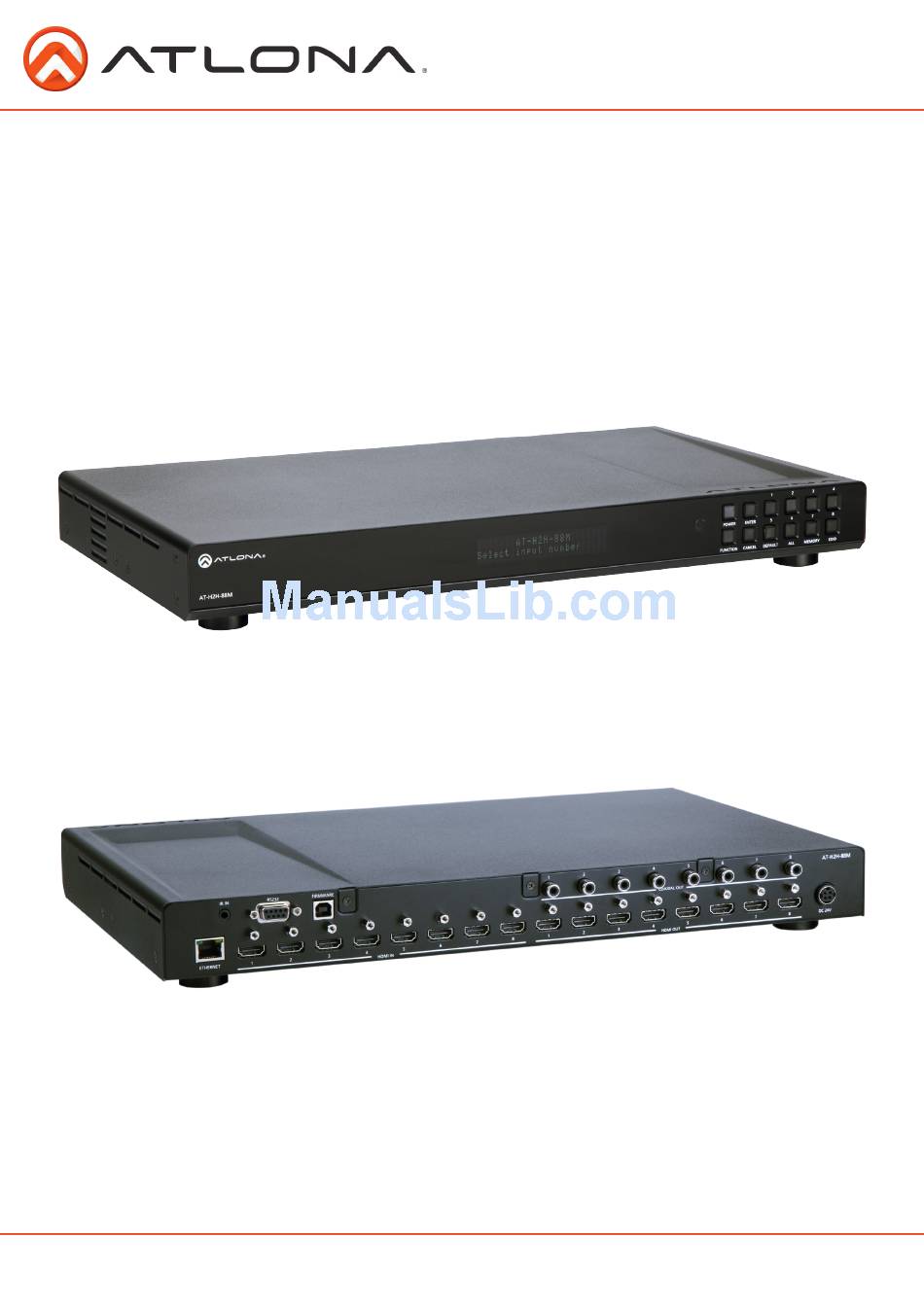

Atlona HDMI to HDMI Matrix Switcher
AT-H2H-44M and AT-H2H-88M
(pictured below)
User Manual
Toll free: 1-877-536-3976
atlona.com
Local: 1-408-962-0515

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-H2H-44M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlona AT-H2H-44M

Summary of Contents for Atlona AT-H2H-44M

  • Page 1 Atlona HDMI to HDMI Matrix Switcher AT-H2H-44M and AT-H2H-88M (pictured below) User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 2: Table Of Contents

    11. Resetting and Updating .................... 26 12. Specifications .................... 27 13. Safety Information .................... 28 14. Warranty .................... 29-30 15. Atlona Product Registration .................... 30 Revision B (3/11/13): Features added TCP/IP Page 16-18 Internal EDIDs Page 11 Revision B Firmware 2.0.02 (08/14/13):...

  • Page 3: Introduction

    Introduction Multiple control options, HD resolutions, and the best audio, the Atlona HDMI ® to HDMI matrix switcher is built for your home and professional needs. With the ability to pass 1080p, 1920x1200, all Lossy and Lossless audio formats (including Dolby ®...

  • Page 4: Panel Description

    Select IR 1: On 2: Off Feedback= Select IR 1:On 2: Off ---> ---> ---> ---> Current On ”IR On Selected” Current: On/Off Select IR 1: On 2: Off Feedback= ---> ---> ---> Current off ”IR Off Selected” Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 5: Rear Panel

    6. HDMI Input Ports: Connect HDMI sources into these ports, such as DVD players, Blu-ray players, computers, etc. 7. HDMI out port: Connect to a display or an AVR 8. Power Port: Use included locking DC adaptor to power the matrix switcher IR Receiver Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 6: Connection Diagram

    Connection Diagram IR IN RS-232 FIRMWARE AT-H2H-88M COAXIAL OUT ETHERNET HDMI IN HDMI OUT DC 24V ENTER POWER AT-H2H-88M FUNCTION CANCEL DEFAULT MEMORY EDID Digital audio de-embedding Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 7: Matrix I/O Control

    Select Function Option AT-H2H-XXM ---> ---> ---> ---> to save to all outputs Select Input Number Input # to all outputs Feedback= through ---> ---> ---> ---> Press enter to confirm ”Input # saved to all” Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 8 ---> ---> Select Input Number 1 Save in/out route Select memory route 1-4/8: # ---> ---> ---> 2 Select memory route Press enter to load memory selection Feedback= through ---> ---> ”Memory # loaded” Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 9: Edid Set Up

    Copy from output # Copy from output # through ---> ---> ---> ---> Save to Memory (1-4) # Save to Memory (1-4/8) # memory selection Feedback= through ---> ---> ”Saved port # EDID to Memory # [Failed/Passed]” Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 10 1.Default 2.Saved 3.Int Feedback = ”Save memory # EDID Use EDID memory # + enter ---> ---> _ _ _ to input #” Atlona EDID - ATL Pioneer EDID - PIO Toshiba EDID - TSB Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 11: Rs-232

    Ex. EDIDMset1 save3 - sets input 1 to the EDID memory 3 EDIDMSetX intZ EDIDMSetX intZ Sets the EDID of an input to one of the internal EDIDs Ex. EDIDMset3 int6 - sets input 3 to the internal EDID - 1080p 3D Dolby Digital 5.1 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 12: Matrix Status

    ---> FPGA 1 Ver: X.X.XX FW Ver: X.X.XX FPGA Version 115200 8 None 1 AT-H2H-XXM ---> ---> Console: X X X X 9600 8 ODD 0 Matrix Baud Rate AT-H2H-XXM ---> ---> IP: XXX.XXX.XXX.XXX Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 13: S/Pdif And Arc

    NOTE: The S/PDIF port used must be the same output number as the HDMI port connected to the display HDMI Bidirectional HDMI w/ARC signal S/PDIF audio loop-out IR IN RS-232 FIRMWARE AT-H2H-88M COAXIAL OUT ETHERNET HDMI IN HDMI OUT DC 24V ENTER POWER AT-H2H-88M FUNCTION CANCEL DEFAULT MEMORY EDID Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 14 NOTE: HD audio formats are not supported through S/PDIF. Ex. Dolby TrueHD or DTS-HD Master Audio IR IN RS-232 FIRMWARE AT-H2H-88M COAXIAL OUT ETHERNET HDMI IN HDMI OUT DC 24V ENTER POWER AT-H2H-88M FUNCTION CANCEL DEFAULT MEMORY EDID Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 15: Connection

    Bits Per Second: 115200, Data Bits: 8, Parity: None, Stop Bits: 1 and Flow Control: None. (see picture C) Set up is done and any hyperterminal program may be used to control the matrix now. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 16: Tcp/Ip

    IP overriding another device. TCP/IP WebGUI Atlona has created an easy to use WebGUI for changing settings and controlling the matrix. To begin, plug a LAN cable into the matrix and your network, then type the IP address of the matrix into a web browser (as seen below).
  • Page 17 FPGA will not display (see first image). Once the power is on it will display (see second image). Note: When the matrix is turned off many fields within the WebGUI will not display information. Be sure the matrix is powered on for complete access. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 18 IP connections to the matrix. Note: Login Mode should not be used when using a control system. Note: The username and password used in IP Login Mode will be the same login information as the WebGUI Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 19 A grey screen will display the save and cancel options when making changes. Remember to save all settings before moving on to the next page. Note: All like fields can be changed during one edit. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 20 Adding, deleting, and updating users can also be done from the config page. User changes can only be done by the admin. Admin user name is always “root” and default password is “Atlona”. Note: Only the admin password can be changed. The username will always remain “root”...
  • Page 21 The I/O page allows input and output routes to be changed easily by drop down menu. Output All will route one selected input to all the outputs. Note: All routes can be changed while in the grey edit screen. Remember to save after all changes have been made. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 22 **Clicking on the Display’s EDID link will provide a breakdown of the selected output’s EDID Note: MM#s in the picture above are examples of saved EDIDs Note: Remember to save after all changes to ensure complete compatibility. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 23 Supported - HDCP is supported by the display Not Supported - The display is unable to support HDCP Non-HDCP Source - A source that does not support HDCP No connection - If no source is selected/connected, HDCP status cannot be determined Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 24: Control Commands

    Will display a list of users - user password - user password - user password IPAddUser [X] [Y] TCP/IP user was added Add a user for TCP/IP control. X=User Y=Password Ex. IPAddUser Atlona 1234 (User=Atlona 1234=Password) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 25: Remote Control

    TCP/IP Commands Cont. IPDelUser [X] TCP/IP user was deleted Delete a user from TCP/IP X=User (Ex. IPDelUser Atlona) IPDHCP sta IPDHCP sta Displays the status of DHCP Ex. IPDHCP on IPDHCP on IPDHCP on Turns DHCP on IPDHCP off IPDHCP off...

  • Page 26: Resetting And Updating

    If you wish to verify the new firmware, use the RS-232 command “Version”. Resetting to factory settings Atlona understands that settings can be troublesome and at times its just easier to set things back to factory settings. To make things easier a simple one step reset was created.

  • Page 27: Specifications

    Specifications Bandwidth 6.75Gbps Ports AT-H2H-44M AT-H2H-88M Video input 4 x HDMI 8 x HDMI Video output 4 x HDMI 8 x HDMI Audio output 4 x S/PDIF 8 x S/PDIF IR input 1 x 3.5 mm 1 x 3.5 mm...

  • Page 28: Safety Information

    Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.
  • Page 29 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.

  • Page 30: Atlona Product Registration

    Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
