Summary of Contents for Atlona Omega AT-OME-SW32

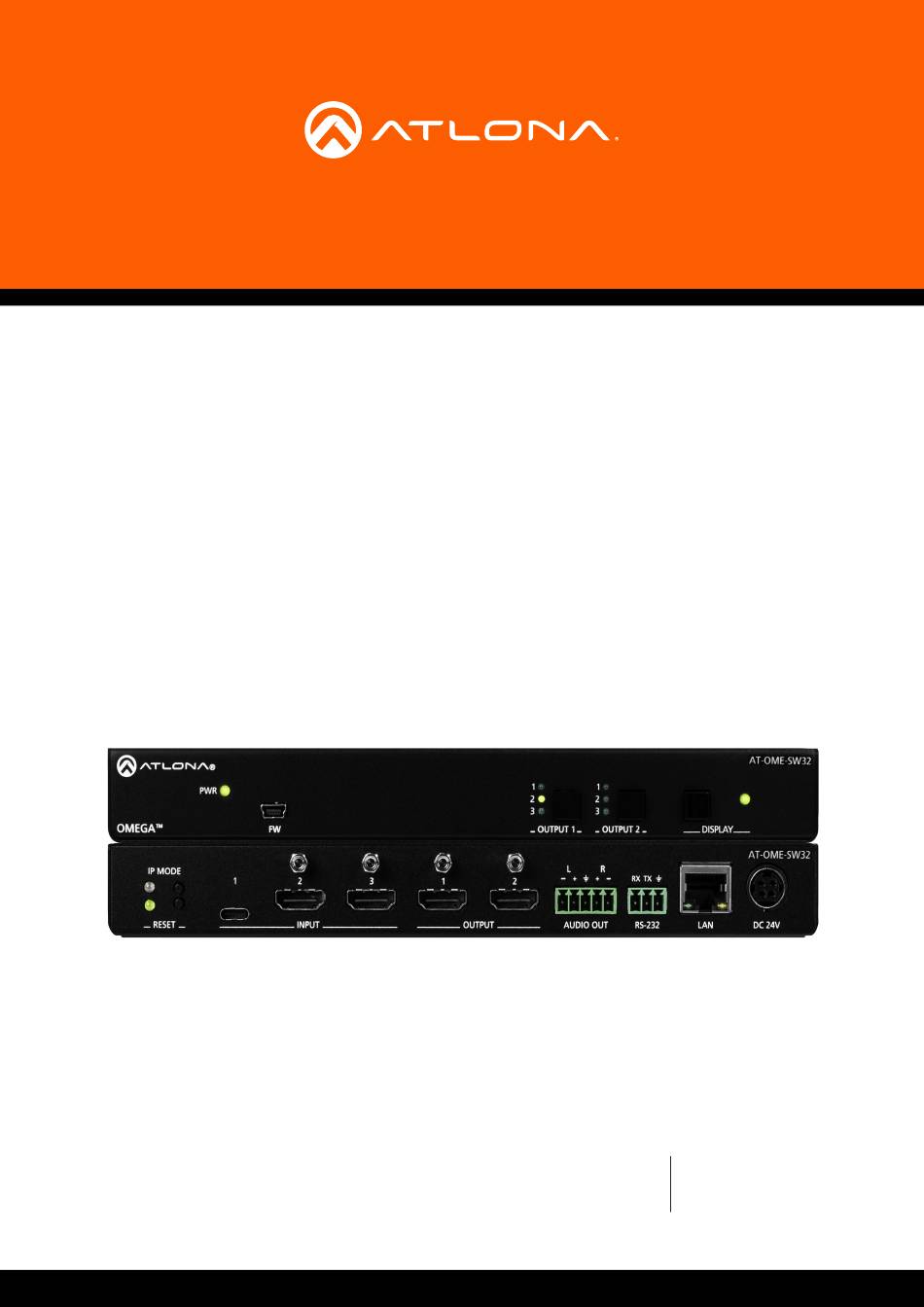

- Page 1 Omega 4K HDR 3x2 Matrix Switcher for HDMI and USB-C with HDMI Outputs Atlona Manuals AT-OME-SW32 Switchers...
- Page 2 Version Information Version Release Date Notes 10/18 Release AT-OME-SW32...
- Page 3 Welcome to Atlona! Thank you for purchasing this Atlona product. We hope you enjoy it and will take a extra few moments to register your new purchase. Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware.
- Page 4 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
- Page 5 Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.
- Page 6 The information bubble is intended to alert the user to helpful or optional opera- product. tional instructions in the literature accompanying the product. 11. Only use attachments/accessories specified by Atlona. 1. Read these instructions. 12. To reduce the risk of electric shock and/or damage 2. Keep these instructions.
-
Page 7: Table Of Contents
Table of Contents Introduction Features Package Contents Panel Description Installation Captive Screw Connections Mounting Instructions Connection Instructions IP Modes Connection Diagram WebGUI Appendix Specifications AT-OME-SW32... -
Page 8: Introduction
Introduction The Atlona AT-OME-SW32 is a 3×2 matrix switcher with HDMI and USB-C inputs, and HDMI outputs. It is HDCP 2.2 compliant and supports 4K HDR and 4K/60 4:4:4 at HDMI data rates up to 18 Gbps. The USB-C input is ideal for AV interfacing with newer Mac®, Chromebook™, and Windows®... -
Page 9: Panel Description

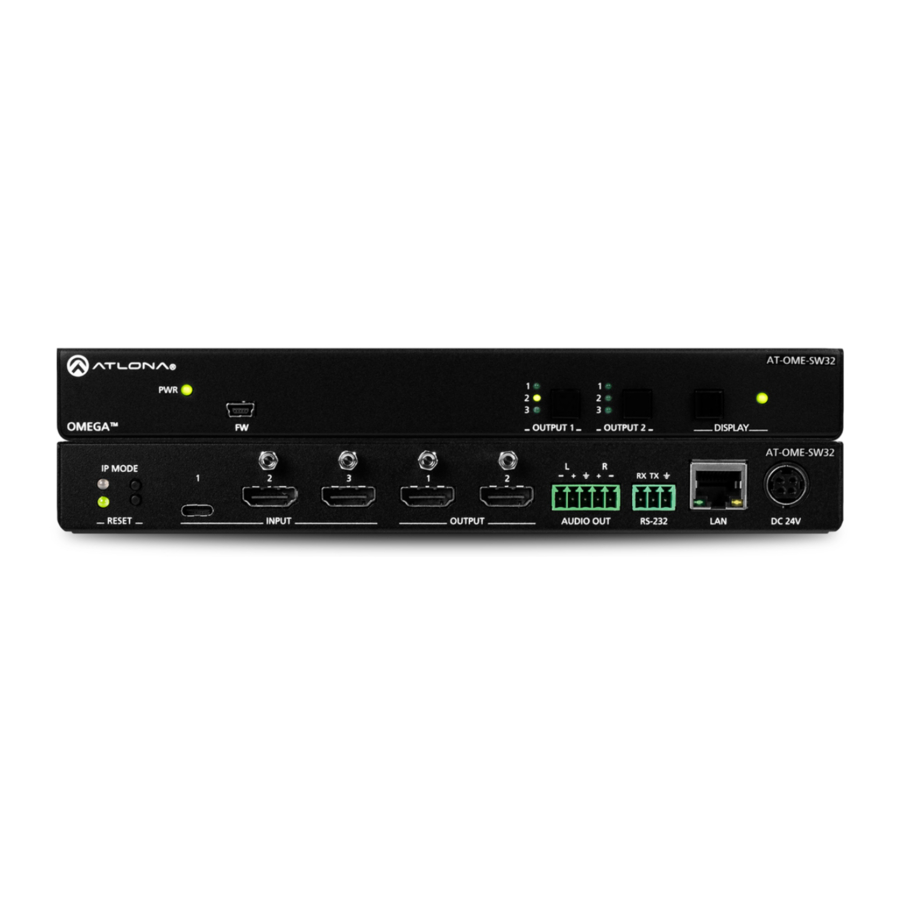

Panel Description AT-OME-SW32 OMEGA OUTPUT 1 OUTPUT 2 DISPLAY AT-OME-SW32 IP MODE RX TX RX TX RESET INPUT OUTPUT AUDIO OUT AUDIO OUT RS-232 RS-232 DC 24V PWR LED INPUT Illuminates green when receiving power. Connect the USB-C or HDMI sources to these ports. FW port OUTPUT Connect a mini USB cable from this port to a PC to... -
Page 10: Installation
Installation Captive Screw Connections RS-232 Connect to a control system for unit switching or to a display for power and audio display control. Pin out will be determined by the RS-232 cable and connect as RX (receive), TX (transmit) and (Ground). -
Page 11: Mounting Instructions
Installation Mounting Instructions The AT-OME-SW32 includes two mounting brackets and four mounting screws, which can be used to attach the units to any flat surface. 1. Remove the top 2 case screws on the side of the unit. 2. Align the mounting brackets to the side of the units. 3. -
Page 12: Connection Instructions
Installation Connection Instructions 1. Connect HDMI and USB-C Sources to the inputs. 2. Connect up to two HDMI displays to the outputs. 3. Connect the 2CH analog AUDIO OUT ports to a DSP, or audio amplifier (e.g. AT-GAIN-60). 4. *Optional* For control, connect to the 3-pin captive screw RS-232 port.) 5. -
Page 13: Connection Diagram
Installation Connection Diagram Laptop Laptop E- ST A T- TE ST IN PU LI N AT-OME-SW32 Display Display AT-OME-SW32... -
Page 14: Webgui
4. The AT-OME-SW32 Login page will be displayed. 5. Enter the following information on the Login page. Login: admin Password: Atlona 6. Click the Login button. The info page will display, giving all the general information of the AT-OME-SW32. AT-OME-SW32... - Page 15 webGUI 7. Select A/V Settings to adjust routing and video settings. Matrix Switching Mirrored - When selected from the drop down menu, both HDMI outputs will pass source signal from the same selected source. This mode is default on. Matrix Mode - When selected, each HDMI Output will route source signals independently. Matrix Mode w/static route - Selecting this will enable the second output to auto route input signals while the first output will stay fixed to the chosen input.
- Page 16 webGUI Auto Switch Auto Switch mode - Set switching to auto (on) to have the source change when detecting new signal or the currently selected source is no longer sending signal. NOTE: The auto switching slider is greyed out when in Matrix or Matrix w/static route mode. Fallback Input - Select whether the unit will auto switch to the last signal detected before the current input signal stopped (Previous) or set it to return to a specific input.
- Page 17 webGUI 8. Select Display to adjust display control settings. NOTE: The Display page is only available when in mirrored or matrix switching w/static mode. Command: Power - Press to send the CEC power on or off command out through the HDMI ports. System Settings Display Auto Power On - Sets the unit to send the display power on command to the output, after the power on delay amount, when signal is received.
- Page 18 webGUI TCP/IP Settings of Controlled Device IP Mode - Toggle telnet login mode between Non-Login and Login. If set to Login, a username and password will be required to control the unit via TCP/IP. IP Address - Sets to the IP of the controlled device/display. Telnet Port - Set the telnet port of the controlled device for control.
- Page 19 webGUI RS-232 Parameter Setting Zone - Select the baud rate, data bit, parity, and stop bit to match the display’s parameters. Defaults are 115200, 8, None, and 1. EDID EDID Settings - Use the drop down menu to select from default (highest common resolution between source and display), 12 internal EDIDs, and previously saved EDIDs.
- Page 20 webGUI Users Admin Password - Update the admin password for the switcher. Only the admin password may be changed, the username will remain admin. Additional Users - Add up to three additional users, each with individual passwords. NOTE: The passwords cannot contain any special characters. e.g. !@#$%/^&*\?+-;’”. Add/Edit a user: •...
- Page 21 webGUI Network IP Mode - Switch between static and DHCP modes by selecting DHCP or Static. IP, Netmask, Gateway - This will display the current IP settings on DHCP. When set to static, fill in the IP ad- dress, netmask, and gateway. Telnet Port - Set the telnet port if needed for control.
- Page 22 Firmware update - Use the choose file button to search the local PC for the firmware file. Once selected, press the update button to start the firmware update. NOTE: Firmware updates and release notes can be found at https://atlona.com/product/AT-OME-SW32/ . AT-OME-SW32...
-
Page 23: Appendix
Appendix Specifications Connectors, Controls, and Indicators HDMI IN 2 - Type A, 19-pin female HDMI OUT 1 - Type A, 19-pin female USB-C IN 1 - USB Type-C v3.1, 24-pin female, AV input (Alternate Mode) 1 - Mini-USB, 5-pin female AUDIO OUT 1 - 5-pin captive screw, balanced / unbalanced 2-channel RS-232... - Page 24 Appendix Signal HDMI HDMI 2.0 CEC Support HDCP Temperature Fahrenheit Celsius Operating 32 to 122 0 to 50 Storage -4 to 140 -20 to 60 Humidity (RH) 20% to 60%, non-condensing Power Operational 6.98 W Idle 2.85 W Supply Input: 100 - 240 V AC, 50/60 Hz Output: 24 V / 2.7A DC Dimensions Inches...
- Page 25 • 408.962.0515 • 877.536.3976 © 2018 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability...
