To connect the gateway to the SRC control board:
1.
On the SRC evaporator/indoor unit, remove the shell to access the electrical section in the
right-hand side:
Lift the top door, exposing the filter section, the door to the electric box, and the screws
that fasten the shell.
Remove the screws shown in Figure 4.2 below.
Carefully lift the top section slightly, locate the wiring to the LEDs on the front-right of the
unit, and disconnect the cable connectors to the LEDs.
Remove the top shell, then the bottom shell sections.

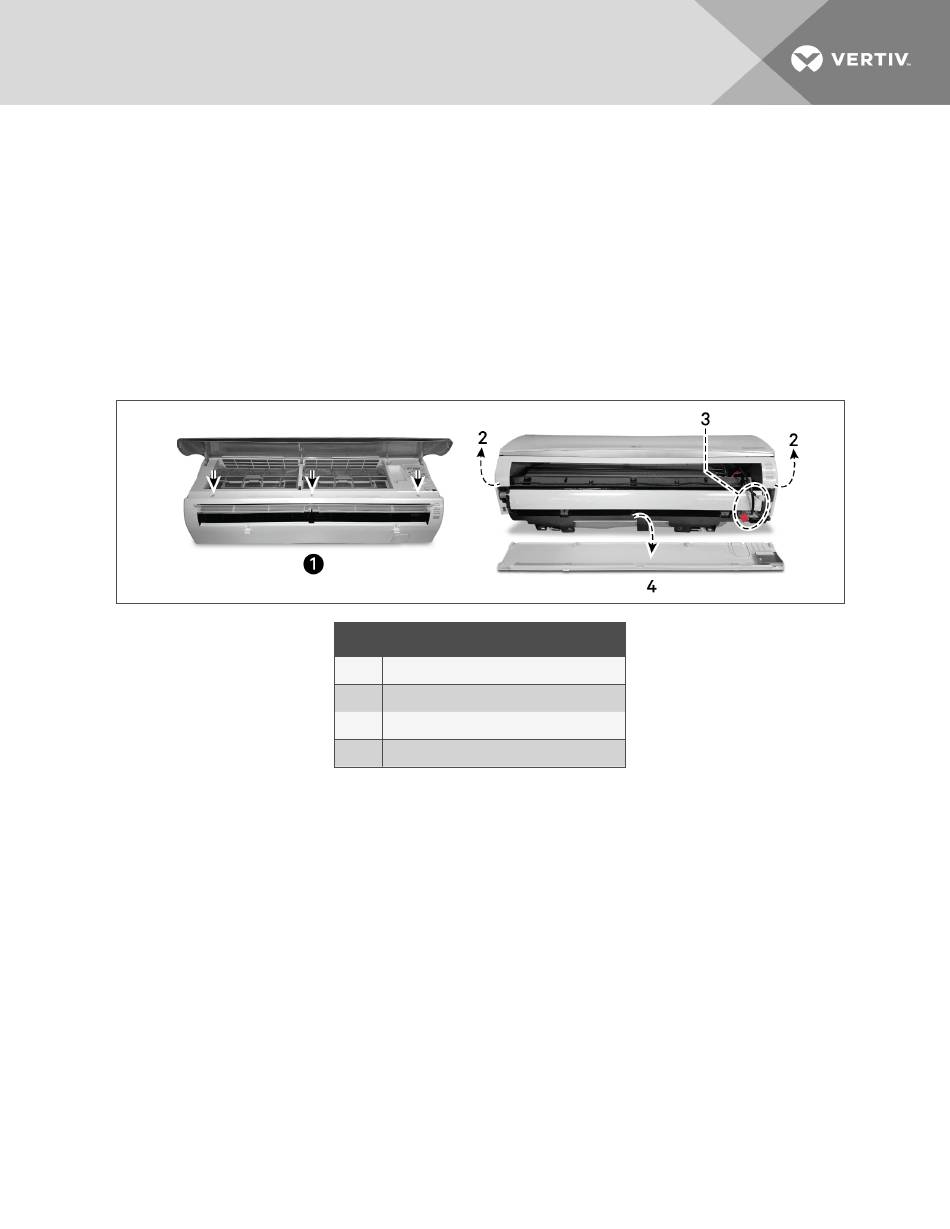

Figure 4.2 Removing SRC shell
4 Installing and Connecting iCOM CMS
ITEM
DESCRIPTION
1
Top door lifted. Fastening screws exposed.
2
Lift top section.
3
LED wiring to disconnect.
4
Pull down bottom section.
37
