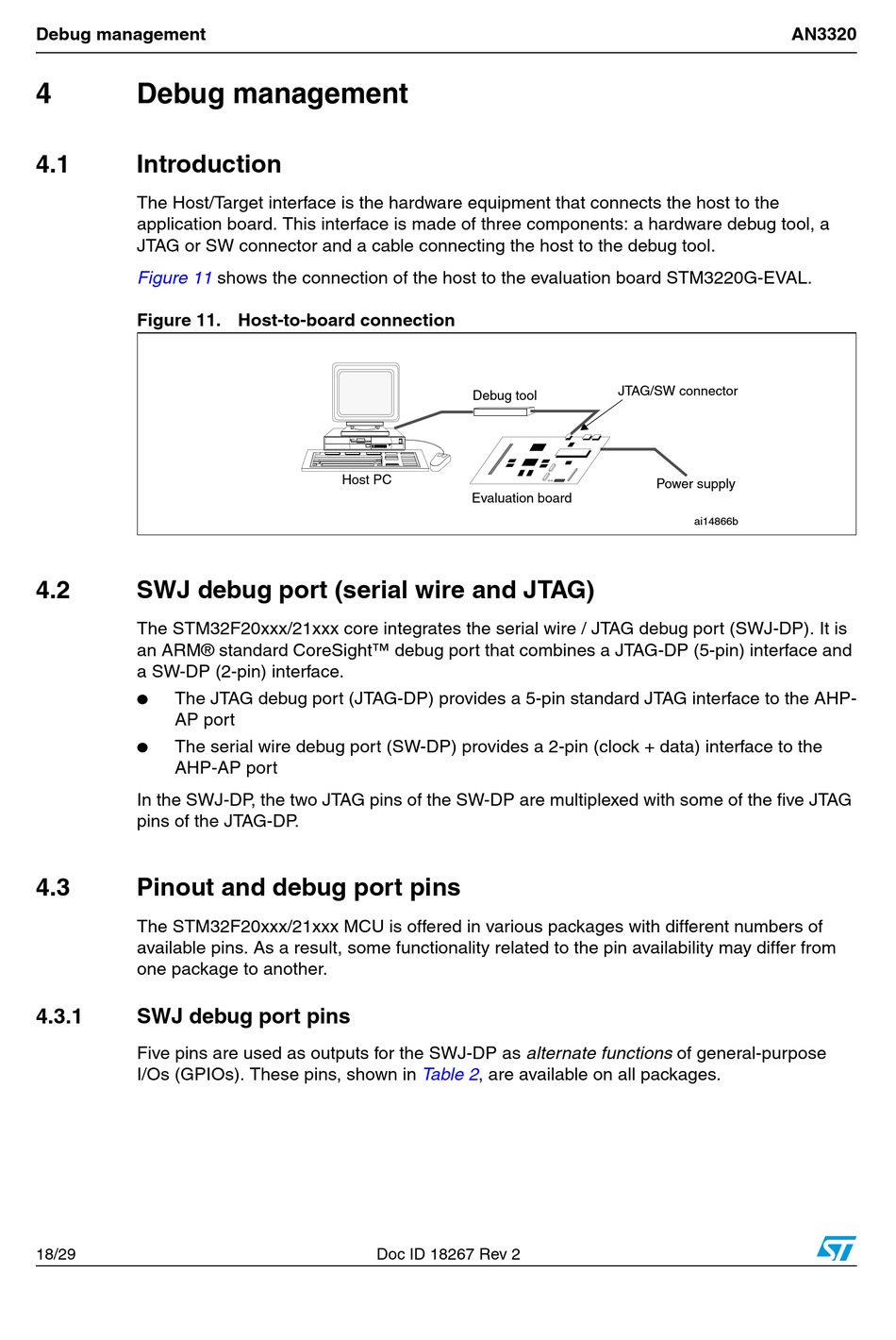

Debug management

4
Debug management
4.1

Introduction

The Host/Target interface is the hardware equipment that connects the host to the
application board. This interface is made of three components: a hardware debug tool, a
JTAG or SW connector and a cable connecting the host to the debug tool.
Figure 11

Figure 11. Host-to-board connection

4.2

SWJ debug port (serial wire and JTAG)

The STM32F20xxx/21xxx core integrates the serial wire / JTAG debug port (SWJ-DP). It is
an ARM® standard CoreSight™ debug port that combines a JTAG-DP (5-pin) interface and
a SW-DP (2-pin) interface.
The JTAG debug port (JTAG-DP) provides a 5-pin standard JTAG interface to the AHP-
AP port
The serial wire debug port (SW-DP) provides a 2-pin (clock + data) interface to the
AHP-AP port
In the SWJ-DP, the two JTAG pins of the SW-DP are multiplexed with some of the five JTAG
pins of the JTAG-DP.
4.3

Pinout and debug port pins

The STM32F20xxx/21xxx MCU is offered in various packages with different numbers of
available pins. As a result, some functionality related to the pin availability may differ from
one package to another.
4.3.1

SWJ debug port pins

Five pins are used as outputs for the SWJ-DP as alternate functions of general-purpose
I/Os (GPIOs). These pins, shown in
18/29
shows the connection of the host to the evaluation board STM3220G-EVAL.
Doc ID 18267 Rev 2
Table
2, are available on all packages.
AN3320
