Set Calibration Date; Check Angle Calibration; Figure 3 - Angle Calibration Fixture - Snap-On ControlTech Micro Calibration Procedure

30. Remove the torque load from the wrench and the Calibration menu will be
displayed.
31. Use the UP key to scroll to the CAL CYCLE COUNT menu selection:
CAL CYCLE COUNT
EXIT
CAL TORQUE
32. Press the Enter key to display the Cal Cycle Count screen:
COUNT: 0001
CLEAR
EXIT
33. Use the Up key to highlight the CLEAR selection then press the Enter key.
34. Press the Enter key while the Exit selection is highlighted to return to the
Calibration menu.
35. Repeat the CHECK TORQUE CALIBRATION section to verify the calibration.

SET CALIBRATION DATE

Note: If the wrench "As Found" condition is within specification, the Calibration
date can be updated as follows:
1. Press the Up or Down key to scroll to the SET CAL DATE menu selection.
CHECK ANGLE
CAL CYCLE COUNT
SET CAL DATE
2. Press the Enter key to display the current date.
SET CAL DATE
2017/01/01
YR MON DAY
3. Set the year by incrementing or decrementing the value using the Up/Down keys
then press the Enter key to accept the year and highlight the month value.
4. Set the month by incrementing or decrementing the value using the Up/Down keys
then press the Enter key to accept the month and highlight the day value.
5. Set the day by incrementing or decrementing the value using the Up/Down keys
then press the Enter key to accept the day and display the Calibration menu
screen.

CHECK ANGLE CALIBRATION

Note: The wrench torque must be calibrated prior to angle calibration.
Note: This procedure requires an angle calibration fixture.

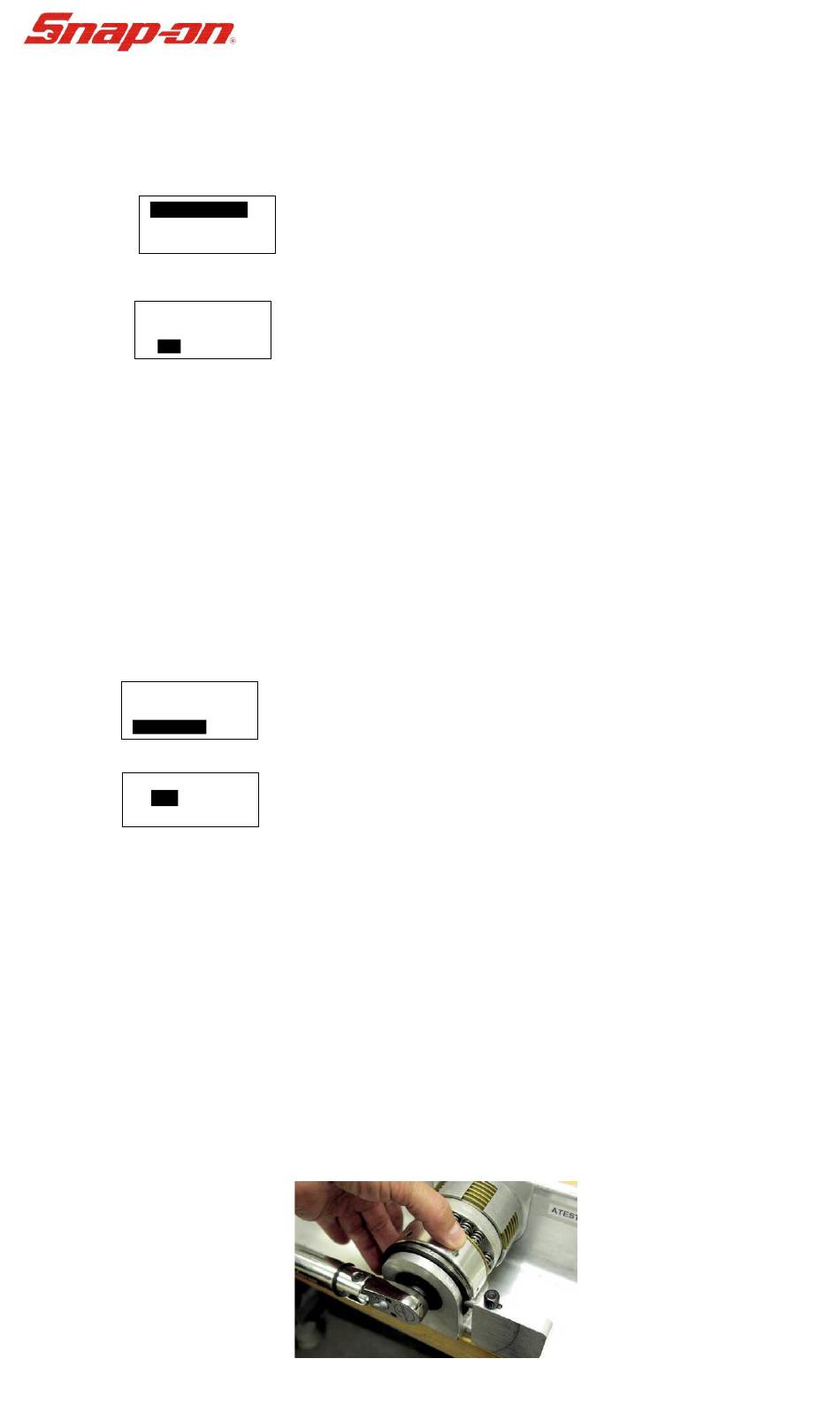

Figure 3 - Angle Calibration Fixture

6
TM
ControlTech Micro Wrench
