Hold for 2 seconds and
release
Fig. 5
Gate Operator / Canadian Programming:
Canadian radio-frequency laws require transmitter signals to "time-out" or quit after
several seconds of transmission – which may not be long enough for HomeLink
up the signal during programming. Similar to this Canadian law, some U.S. gate
operators are designed to "time-out" in the same manner.
If you live in Canada or you are having difficulties programming a gate operator by using
the "Programming" procedures (regardless of where you live), replace "Programming
®
HomeLink
step 4 with the following:
NOTE: If programming a garage door opener or gate operator, it is advised to unplug
the device during the "cycling" process to prevent possible overheating.
4. Continue to press and hold the HomeLink
- every 2 seconds ("cycle") your hand-held transmitter until the frequency signal
has successfully been accepted by HomeLink
slowly and then rapidly.)
Proceed with "Programming" step 5 to complete.
®
NOTE: Programmed HomeLink
codes can be intentionally erased (when selling
vehicle etc.) by holding the 2 outer buttons (as shown in Fig. 1) for 20 seconds until LED
indicator begins to flash. Do not hold buttons for more than 30 seconds.
If you have any questions or are having difficulty programming your
®
HomeLink
buttons, please refer to www.homelink.com or call
1-800-355-3515.
Cleaning the mirror:
When cleaning the mirror, use a paper towel or similar material dampened with
glass cleaner. Do not spray glass cleaner directly onto the mirror as damage to
internal circuitry may result.
Troubleshooting Guidelines:
1. "C" or "CAL" is displayed in the display window
a. Perform calibration procedure.
2. Inaccurate compass direction
a. Perform compass zone setting procedure and then calibration procedure
b. Vehicle magnetics may have changed.
- Press and hold the " " button or the "
seconds until a "C" or "CAL" appears in the display window.
- Perform calibration procedure.
NOTE: Installing items such as a ski rack, antenna, luggage rack or recent body
repair can cause changes to the vehicle's magnetic field. This may require
that the compass be recalibrated by performing the recalibration procedure.
3. The temperature display is reading significantly low
a. The temperature display may have been changed to degrees Celsius. Refer
to the section of this User Guide pertaining to the temperature feature to
correct.
4. The display window shows "SC" or "OC" instead of temperature
a. These problems must be corrected at your authorized Dealer Service Center.
FCC: NZLCTHL3. IC: 4112A-NZLCTHL3
9. Return to the vehicle and firmly press,
hold for 2 seconds and release the
®
programmed HomeLink
button. Fig. 5
10. Repeat Step 9 a second time and
possibly a third time (depending on
brand of device).
®
HomeLink
should now activate your
rolling code equipped device.
®
®
button while you press and release
®
. (The indicator light will flash
" button (if mirror has) for 9
Auto-Dimming Mirror User Guide

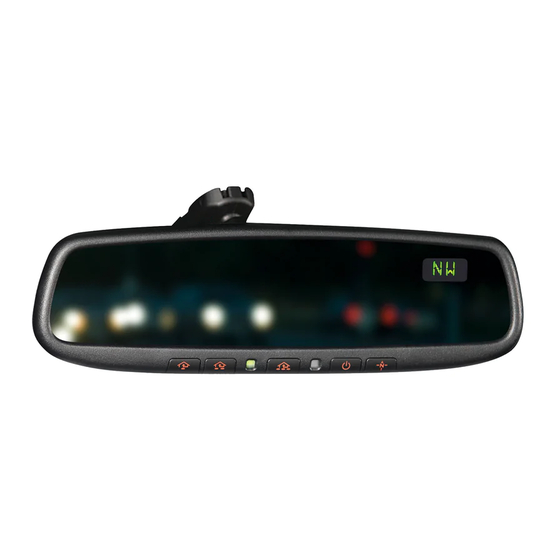

Congratulations! Your new Mazda is equipped with an Automatic-Dimming Mirror,
manufactured by Gentex Corporation. During nighttime driving, this safety feature will
automatically detect and eliminate dangerous rearview mirror glare.
Your new mirror may or may not have all of the features shown in this User Guide.
Please refer only to the sections that pertain to the model mirror you have in your new
vehicle.
Auto-Dimming Mirror with Compass
to pick
To Operate the Auto-Dimming Feature:
To Operate the Auto-Dimming Feature:
Push the " " switch to turn the mirror on/off. The auto-dimming feature is
Push the " " switch to turn the mirror on/off. The auto-dimming feature is
enabled when the green LED indicator is on.
enabled when the green LED indicator is on.
To Operate the Compass Feature:
To Operate the Compass Feature:
1. Push the display " " switch. The vehicle's directional heading will be displayed.
1. Push the display " " switch. The vehicle's directional heading will be displayed.
2. Pushing the " " switch a second time will turn off the visual display.
2. Pushing the " " switch a second time will turn off the visual display.
3. If the display reads "C", calibrate the compass by driving the vehicle in up to 3
3. If the display reads "C", calibrate the compass by driving the vehicle in up to 3
complete circles at less than 5 MPH.
complete circles at less than 5 MPH.
4. To adjust for compass variance:
a. Press the " " button for more than 9 seconds, or until the current zone
number appears in the display.
b. Find your current location and variance zone number on the zone map below.
c. Press the " " button until the new zone number appears in the display.
After you stop pressing the button, the display will show a compass heading
within a few seconds.
ON/OFF
ON/OFF
BUTTON
BUTTON
LED
SENSOR
LED
SENSOR
CALIBRATION PROCEDURE
CALIBRATION PROCEDURE
550-0351 B
DISPLAY
DISPLAY
WINDOW
WINDOW
