Mazda C930 V7 620A Inspection And Installation Instructions

INSTALLATION
INSPECTION
SHEET
Perform the following inspections
WARNING
 Before starting the engine, make sure there are no persons in front of or behind the vehicle, or around the engine
compartment. Otherwise a serious accident could result by the vehicle suddenly moving.
 Do not start the engine in a place such as a garage or other location with poor air ventilation. Otherwise,
poisoning or asphyxiation could result from accumulation of exhaust gas.
 Always set the wheel blocks on level ground before performing the verification.
1. Inspection items after installation
 Verify the fitting between the vehicle part and the installed part, and inspect for damage or dirt.

When connecting connectors, verify the connection again to prevent poor connection or mis-connection.
(Insert two times.)
2. Vehicle parts reinstallation
Inspection Parts
Negative battery cable
Ground
Function restore procedure
after removal/installation of
battery
― Continues on backside ―
※ The term of validity for this sheet: 3 Years
MAZDA CX-3
MAZDA 2
Inspection Items
Are the battery cables securely tightened to the
Torque check
terminals?
Is the ground bolt tightened to the proper torque?
Torque check
Have the vehicle's functions been restored by referring to
"Required
Operation
negative battery cable", in the vehicle workshop manual
or the owner's manual?
Date , ,
VIN.
Remote engine start

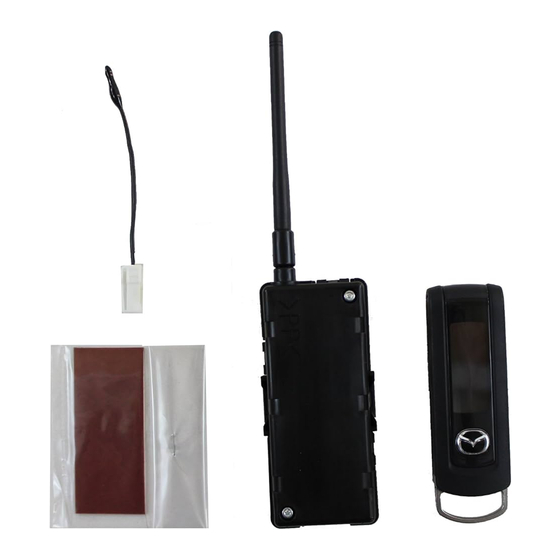

C930 V7 620A (CONTROLLER KIT)
DA8A V7 630A (HARNESS KIT)
KD53 V7 629A (HOOD SWITCH)
Inspection
servicing after disconnecting/connecting
Check
Check
Check
N・m
N・m
ZZ092-00950-00
(ZZ092-00951-00)
