Operation

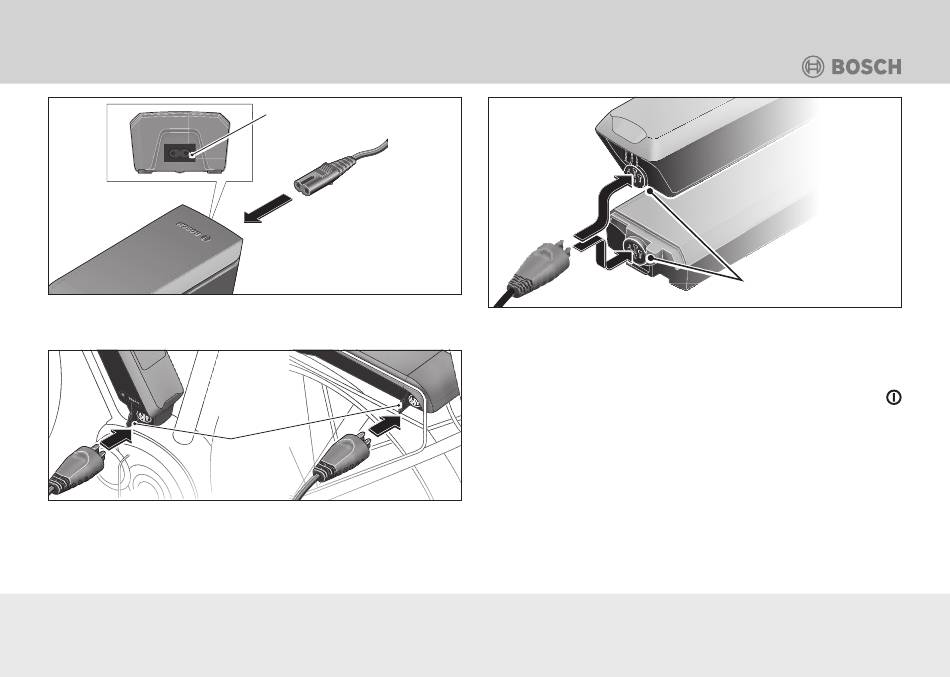

Fig.: B-4 Connection of the device plug to the mains connector
jack of the charger.
Cover
Fig.: B-5 Connection of the charging plug to the charging slot of
the inserted rechargeable battery.
Device jack
Device plug
Charger
Charging plug
Fig.: B-6 Connection of the charging plug to the removed on-
frame (top) or luggage rack rechargeable battery (bottom). Once
the charging process is complete, the charging indicator on the
rechargeable battery goes out.
NOTICE:To check the rechargeable battery charge, push the
button on the rechargeable
7. Pull the charging plug out of the rechargeable battery.
8. Pull the mains plug out of the socket.
9. Only when the rechargeable battery is inserted: Close the
charging slot with the cover.
Charging slot
battery.
