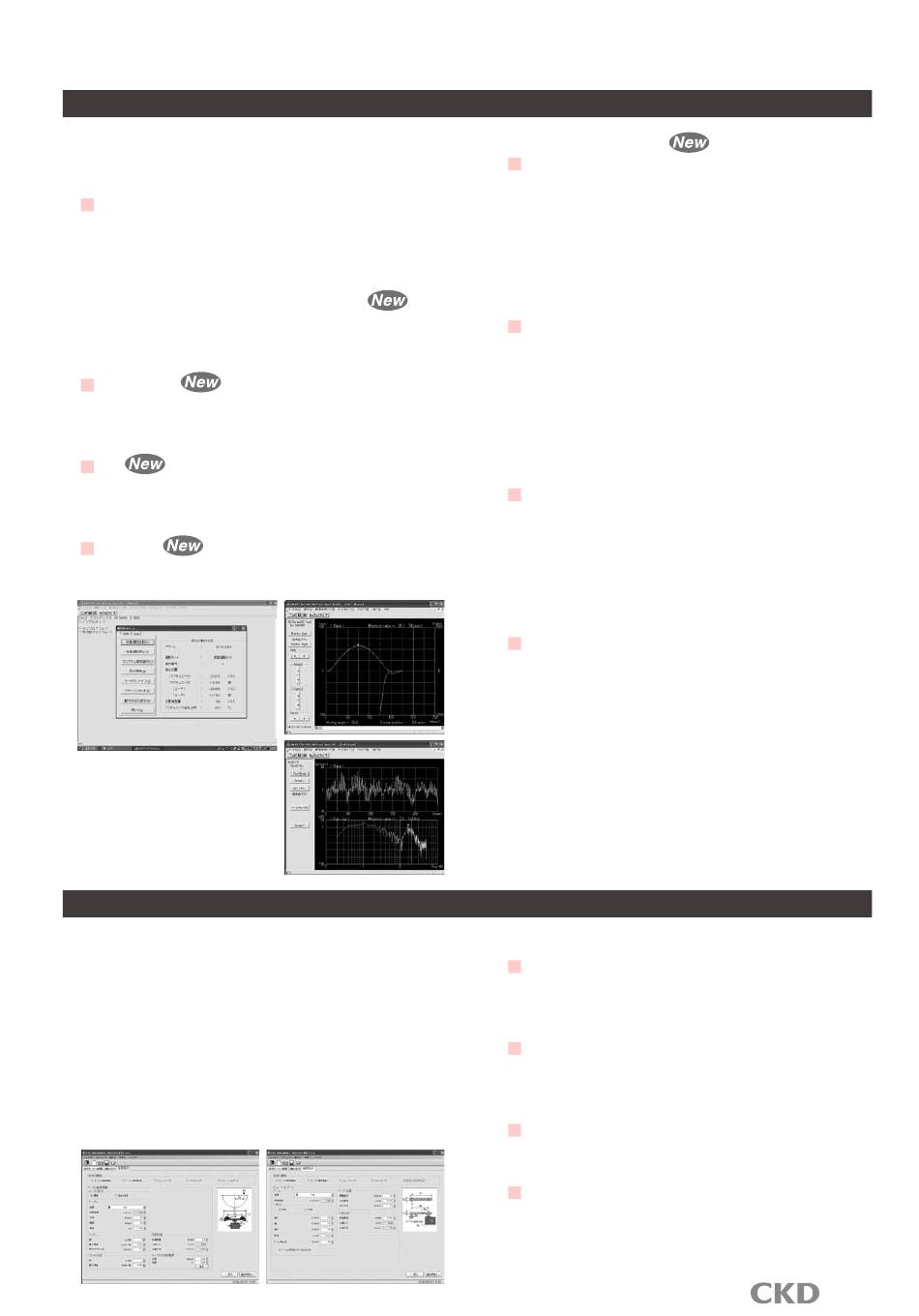

Additional Functions - CKD AX1000T Series Manual


Adjustment and installation support tool (AX
tools) comes standard.
Get the right adjustments in less time.
Teaching note
■
Create programs and set parameter

Origin offset

Trial run

Semi-automatic tuning (TS type only)

By adjusting one parameter after auto tuning, the
equipment can achieve higher performance.
Speed wave
■
Review the tuning by measuring the actual change
in velocity and convergent time.
FFT
■
Deter resonance of mechanisms by setting a notch
filter and low-pass filter.
I/O check
■
I/O status of host component and can be checked.

Return to origin not required
Because the absodex has an absolute resolver that can detect the
current position right after being turned on, you don't need to do
an return to origin operation each and every time. You can also
restart form the current position after and emergency stop also.
 Smooth cam curve drive
5 types of cam curves are installed as standard.
Minimizes the shock during rotation and stop.

Model selection software (free)
Select the model you need with ease.
Convenience

Features of the Absodex


Additional functions

Input/output function
■
Ready output

Servo state output

Encoder output

Servo on input

Position deviation counter clear input

Parameter
■
Setting positioning complete signal output duration

Can be set h 0 to 100ms range.
Mode selection of in position input

Position output ON all the time within the in-
position range or ON only when it is stopped within
the in-position range.
Additional program selection method
■
Select programs with 6bit input (0 to 6)

Operation start with selection input + start input

Reduce tact time by reducing the time required to
operate after program selection by abbreviating the
program number setting input.
Prevents free-run when alarm is on
■
Slows down and stops the servo when an alarm
caused by coasting goes off to prevent accidents
Green technology
Energy saving
■
Power is consumed only during indexing. Almost
no power is consumed while the output shaft is
stopped.
No need to replace or dispose lubricant
■
N o m o r e t a s k o f r e p l a c i n g a n d d i s p o s i n g
lubricants. Eliminates pollution caused by oil
leakage.
Smaller components, smaller equipment
■
Does not require origin detection sensor, reducer
and etc.
Easy to change specifications, reusable
■
Can be reused unlike mechanical indexes by
changing specifications using computers and the
teaching pendant.
Intro4
