MAXinBOX FC 0-10V FAN

2.4 0-10V ANALOGUE OUTPUTS

MAXinBOX FC 0-10V FAN incorporates two analogue voltage outputs that provide a
voltage signal in the range 0 to 10 VDC. This voltage will be in accordance to the
percentage values that are received through a specific communication object.
Each analogue output can be enabled or disabled in parameters, and is intended to
control the fan speed of one fan coil unit.
One on-board LED indicator is offered per output to show the status: it will remain off
while the output signal is 0V, and on while it is 10V. Under intermediate values, it will
blink with variable rates (according to the voltage).
ETS PARAMETERISATION
After enabling "0-10V Analog Outputs" in the General screen (see section 2.1), a new
tab will be incorporated into the tree on the left.

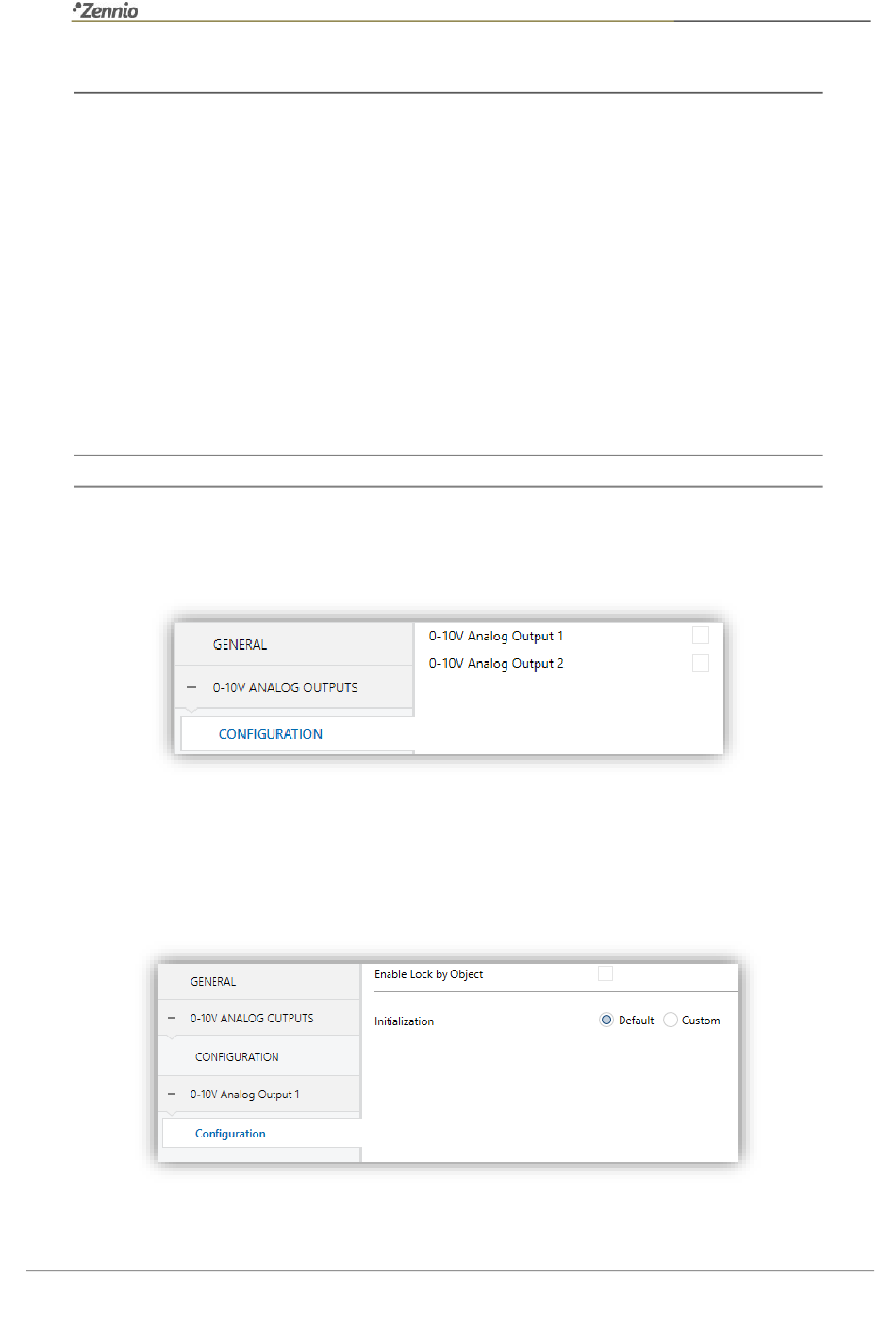

Figure 5 0-10V Analog Outputs - Configuration.
The two analogue outputs can be activated independently by marking the checkboxes.
This also brings new tabs to the tree.
Figure 6 0-10V Analog Output X – Configuration.
