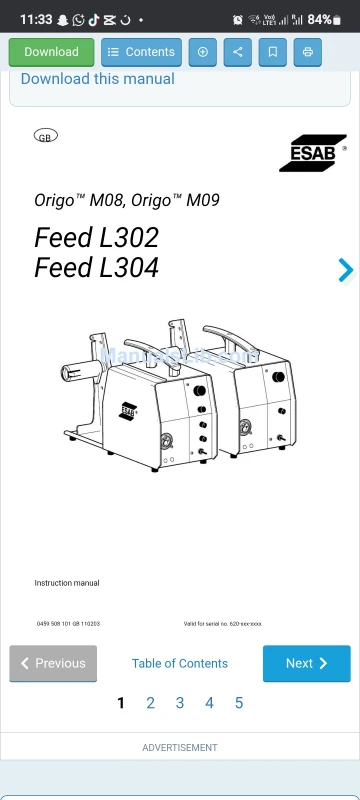

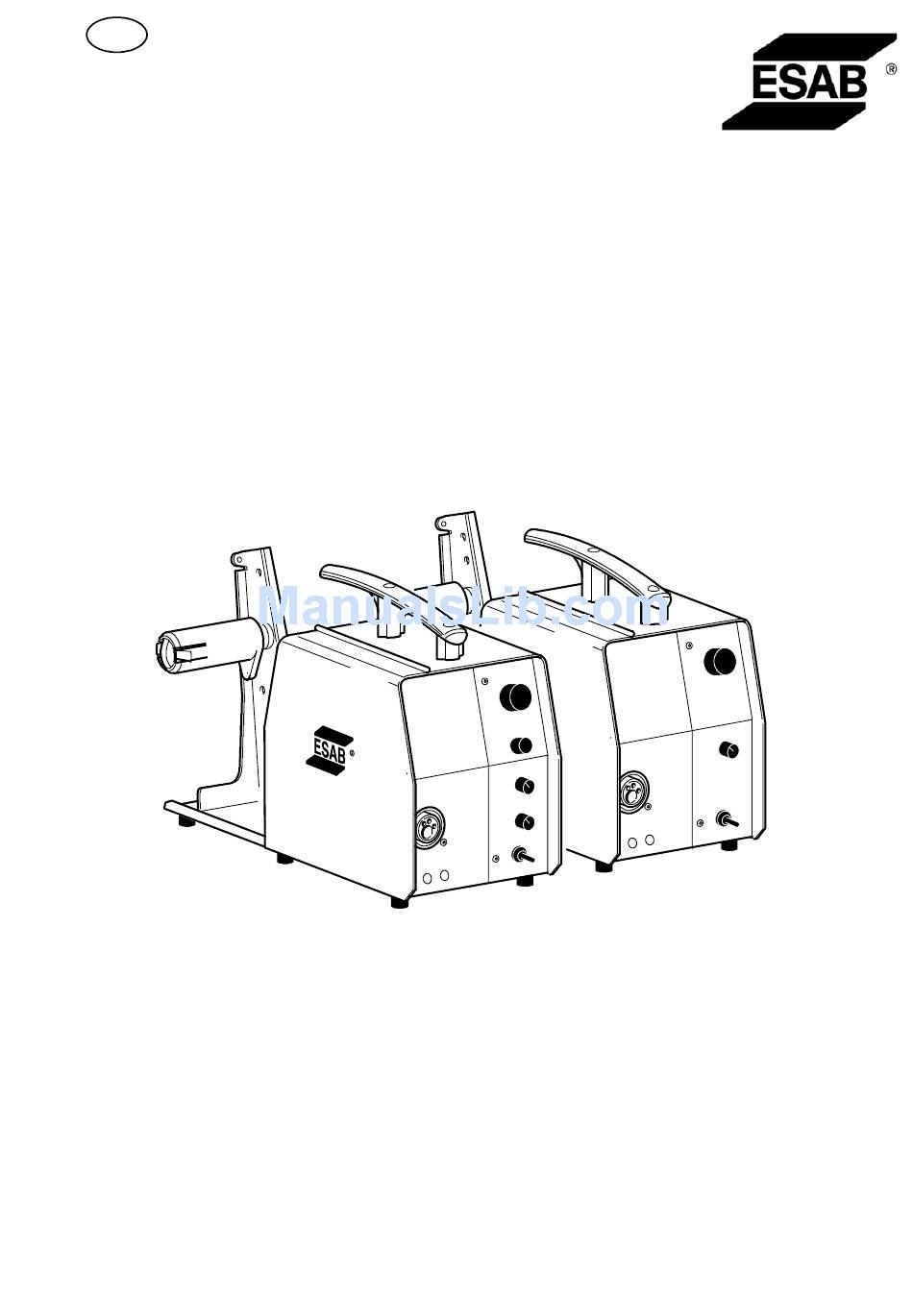

- Page 1 Origo™ M08, Origo™ M09 Feed L302 Feed L304 Instruction manual 0459 508 101 GB 110203 Valid for serial no. 620-xxx-xxxx...
-
Page 2: Table Of Contents
1 DIRECTIVE ............2 SAFETY . -
Page 3: Directive
Equipment and Automation SAFETY Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of equipment. The following recommendations should be ob- served in addition to the standard regulations that apply to the workplace. - Page 4 MALFUNCTION - Call for expert assistance in the event of malfunction. Read and understand the instruction manual before installing or operating. PROTECT YOURSELF AND OTHERS! ESAB can provide you with all necessary welding protection and accessories. WARNING Do not use the power source for thawing frozen pipes.
-
Page 5: Introduction

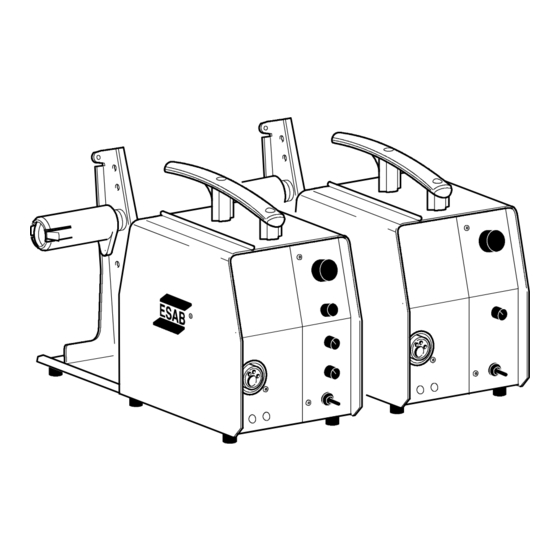

MIG/MAG welding with the Mig L405 power source. They come in different variants, see page 16. The feed units can be used together with wire on ESAB's MarathonPact, or on wire bobbin Ø 300 mm. -
Page 6: Installation
Feed L302 Feed L304 Coolant 50% water / 50% glycol max pressure 5 bar Maximum permissible load at 60% duty cycle 365 A 365 A 100% duty cycle 280 A 280 A Enclosure class basic version IP2X IP2X with sealed bobbin holder* IP23 IP23 with MarathonPact... -
Page 7: Lifting Instructions
Lifting instructions Order number for lifting eyelet can be found on page 21. Note! If another mounting device is used, this should be insulated from the wire feed unit. OPERATION General safety regulations for the handling of the equipment can be found on page 3. -
Page 8: Connections And Control Devices
WARNING Assure that the side panels are closed during operation. WARNING To prevent the reel from sliding off the hub: Lock the reel in place by turning the red knob as shown on the warning label attached next to the hub. WARNING Rotating parts can cause injury, take great care. - Page 9 Feed L302 Knob for setting wire feed speed Connection for welding gun Knob for setting burnback time Connection for welding current from power source, (OKC) Switch for 2-stroke / 4-stroke Connection for shielding gas Connection for control cable from power source Feed L304 Knob for setting wire feed...
-
Page 10: Explanation Of Function
Explanation of function Wire feed speed This sets the required feed speed of the filler wire in m/minute. 2 stroke With 2-stroke, the gas flow starts followed by the wire feed when the trigger switch is pressed in. The welding process is concluded when the trigger switch is released, the wire feed stops and the gas stops flowing. -
Page 11: Wire Feed Pressure
Wire feed pressure Start by making sure that the wire moves smoothly through the wire guide. Then set the pressure of the wire feeder's pressure rollers. It is important that the pressure is not too great. Fig 1 Fig 2 To check that the feed pressure is set correctly, you can feed out the wire against an insulated object, e.g. -
Page 12: Changing Feed Roller Feed L302
Changing feed roller Feed L302 Open the side panel. Disconnect the pressure sensor (1) by folding it backwards. Disconnect and remove the Allen screw (2) and the washer. Pull out the feed roller (3). During installation, repeat the above in the reverse order. -
Page 13: Ordering Spare Parts
Spare parts may be ordered through your nearest ESAB dealer, see the last page of this publication. -
Page 14: Diagram
Diagram Feed L302 - 14 - Edition 110203 bm38e11a... - Page 15 Feed L304 - 15 - Edition 110203 bm38e11a...
-
Page 16: Ordering Number
Feed L302, Feed L304 Ordering number Ordering no. Denomination Type 0459 495 782 Wire feed unit Origot Feed L302, M08 0459 495 882 Wire feed unit Origot Feed L304, M09 0459 495 892 Wire feed unit Origot Feed L304, M09 with water cooling 0459 508 990 Spare parts list - 16 -... -
Page 17: Wear Parts
Feed L302 Wear parts Item Ordering no. Denomination Notes 0455 889 001* Insert tube For Fe, Ss & cored wire 0455 894 001* Insert tube For Al wire 0455 886 001* Outlet nozzle For Fe, Ss & cored wire 0455 885 001* Outlet nozzle For Al wire 0455 898 001 Screw... - Page 18 Feed L302 - 18 - 0459 508 110203 /P24 bm38whm1...
- Page 19 Feed L304 HD = Heavy Duty Item Ordering no. Denomination Notes 0455 072 002 Intermediate nozzle For Fe, Ss & cored wire 0456 615 001 Intermediate nozzle For Al Wire 0469 837 880 Outlet nozzle For Fe, Ss & cored wire, Ø 2.0 mm steel for 0.6-1.6 mm 0469 837 881 Outlet nozzle For Al wire, Ø...
- Page 20 Feed L304 - 20 - 0459 508 110203 /P24 bm38whn1...
-
Page 21: Accessories
Feed L302, Feed L304 Accessories Bobbin cover, plastic Ø 300mm ... 0458 674 880 Adapter for 5 kg bobbin ....0455 410 001 0458 706 880 Lifting eye . - Page 22 Feed L302, Feed L304 Strain relief for welding gun ....0457 341 881 Strain relief bracket for connection set ..0459 234 880 Counter balance device ....0458 705 880 (includes mast and counter balance) Water kit .
- Page 23 NOTES ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................- 23 - notes...
- Page 24 ESAB Romania Trading SRL ESAB VAMBERK s.r.o. SOUTH AFRICA ESAB Mexico S.A. Bucharest Vamberk ESAB Africa Welding & Cutting Ltd Monterrey Tel: +40 316 900 600 Tel: +420 2 819 40 885 Durbanvill 7570 - Cape Town Tel: +52 8 350 5959...
