MN000218A01_a.book Page 5 Wednesday, March 19, 2014 4:18 PM
Charging
contacts
Charging
Charging
Indicator
Pocket

CHARGING POCKET INSTALLATION

To reduce risk of electric shock, unplug the charger
from the AC outlet before removing or replacing
Charging Pocket.
W A R N I N G
Removing Charging Pocket from Multi-Unit Charger
1.
Remove the screw that secures the Charging Pocket to the base.
2.
Lift the Charging Pocket a few inches away from the base.
3.
Remove the Pocket Harness by pulling straight up on the connector
(refer to Figure 4).
Securing Charging Pocket to Multi-Unit Charger
1.
Connect Pocket Harness by plugging in the connector to the
receptacle on Multi-Unit Charger (refer to Figure 4).
2.
Slot in the Charging Pocket to the base and ensure the Charging
Pocket is flushed in to the Multi-Unit Charger. Affix the Charging
Pocket screw.
Power Receptacle
(located here)

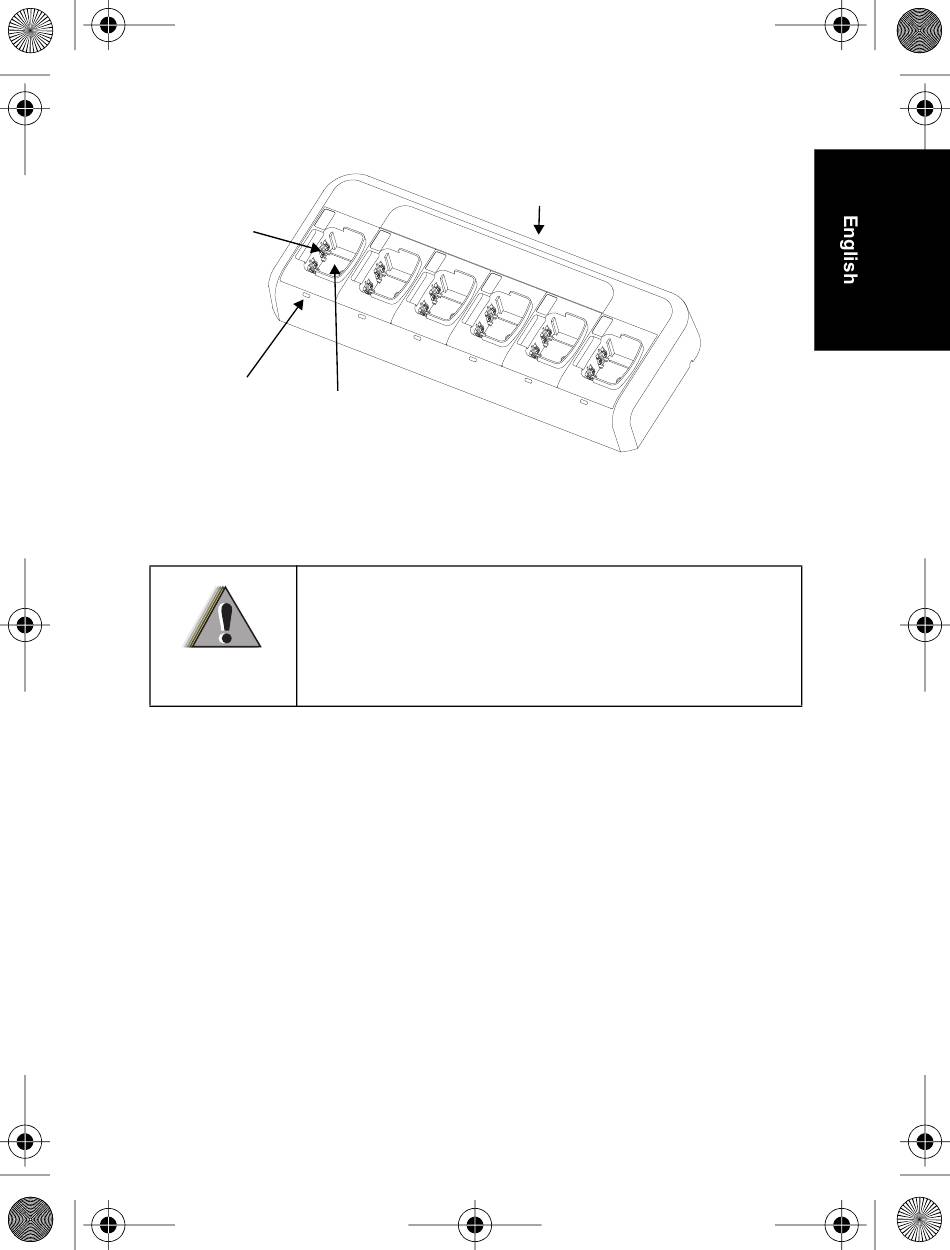

Figure 2: Multi-Unit Charger
5
