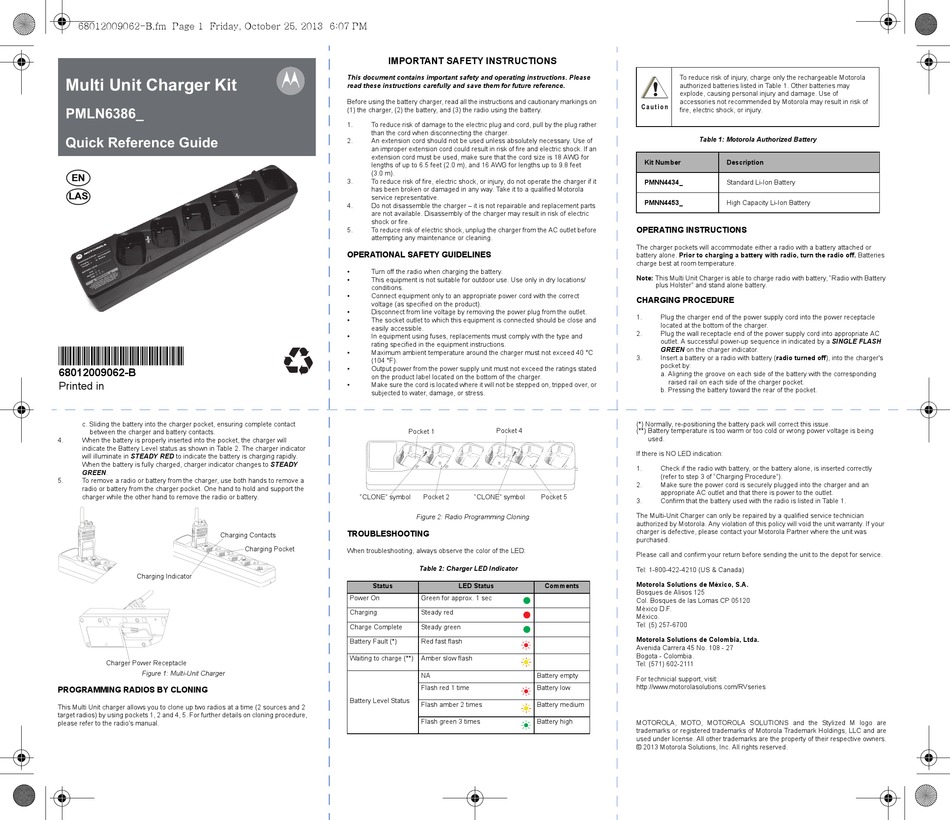

Motorola PMLN6386 Quick Reference Manual

68012009062-B.fm Page 1 Friday, October 25, 2013 6:07 PM
Multi Unit Charger Kit
PMLN6386_
Quick Reference Guide
EN
LAS
*68012009062*
68012009062-B
Printed in
c. Sliding the battery into the charger pocket, ensuring complete contact
between the charger and battery contacts.
4. When the battery is properly inserted into the pocket, the charger will
indicate the Battery Level status as shown in Table 2. The charger indicator
will illuminate in STEADY RED to indicate the battery is charging rapidly.
When the battery is fully charged, charger indicator changes to STEADY
GREEN.
5. To remove a radio or battery from the charger, use both hands to remove a
radio or battery from the charger pocket. One hand to hold and support the
charger while the other hand to remove the radio or battery.
Charging Contacts
Charging Indicator
Charger Power Receptacle

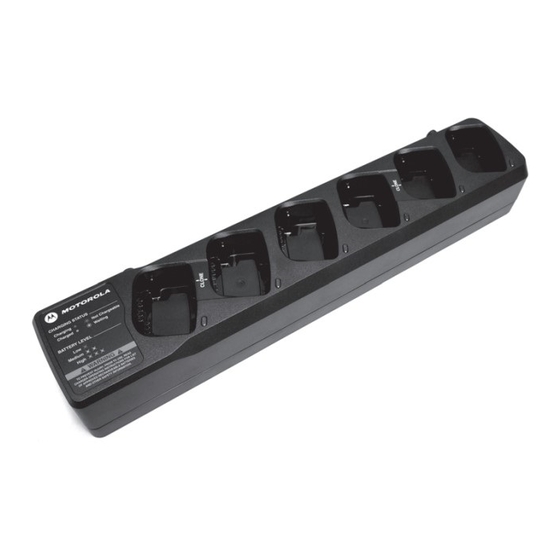

Figure 1: Multi-Unit Charger
PROGRAMMING RADIOS BY CLONING
This Multi Unit charger allows you to clone up two radios at a time (2 sources and 2
target radios) by using pockets 1, 2 and 4, 5. For further details on cloning procedure,
please refer to the radio's manual.
IMPORTANT SAFETY INSTRUCTIONS
This document contains important safety and operating instructions. Please
read these instructions carefully and save them for future reference.
Before using the battery charger, read all the instructions and cautionary markings on
(1) the charger, (2) the battery, and (3) the radio using the battery.
1. To reduce risk of damage to the electric plug and cord, pull by the plug rather
than the cord when disconnecting the charger.
2. An extension cord should not be used unless absolutely necessary. Use of
an improper extension cord could result in risk of fire and electric shock. If an
extension cord must be used, make sure that the cord size is 18 AWG for
lengths of up to 6.5 feet (2.0 m), and 16 AWG for lengths up to 9.8 feet
(3.0 m).
3. To reduce risk of fire, electric shock, or injury, do not operate the charger if it
has been broken or damaged in any way. Take it to a qualified Motorola
service representative.
4. Do not disassemble the charger – it is not repairable and replacement parts
are not available. Disassembly of the charger may result in risk of electric
shock or fire.
5. To reduce risk of electric shock, unplug the charger from the AC outlet before
attempting any maintenance or cleaning.
OPERATIONAL SAFETY GUIDELINES
• Turn off the radio when charging the battery.
• This equipment is not suitable for outdoor use. Use only in dry locations/
conditions.
• Connect equipment only to an appropriate power cord with the correct
voltage (as specified on the product).
• Disconnect from line voltage by removing the power plug from the outlet.
• The socket outlet to which this equipment is connected should be close and
easily accessible.
• In equipment using fuses, replacements must comply with the type and
rating specified in the equipment instructions.
• Maximum ambient temperature around the charger must not exceed 40 °C
(104 °F).
• Output power from the power supply unit must not exceed the ratings stated
on the product label located on the bottom of the charger.
• Make sure the cord is located where it will not be stepped on, tripped over, or
subjected to water, damage, or stress.
Pocket 1
"CLONE" symbol Pocket 2
Figure 2: Radio Programming Cloning
TROUBLESHOOTING
Charging Pocket
When troubleshooting, always observe the color of the LED:
Table 2: Charger LED Indicator
Status
Power On Green for approx. 1 sec
Charging Steady red
Charge Complete Steady green
Battery Fault (*) Red fast flash
Waiting to charge (**) Amber slow flash
NA
Flash red 1 time
Battery Level Status
Flash amber 2 times
Flash green 3 times
OPERATING INSTRUCTIONS
The charger pockets will accommodate either a radio with a battery attached or
battery alone. Prior to charging a battery with radio, turn the radio off. Batteries
charge best at room temperature.
Note: This Multi Unit Charger is able to charge radio with battery, "Radio with Battery
CHARGING PROCEDURE
1.
2.
3.
(*) Normally, re-positioning the battery pack will correct this issue.
Pocket 4 (**) Battery temperature is too warm or too cold or wrong power voltage is being
If there is NO LED indication:
1.
2.
"CLONE" symbol Pocket 5
3.
The Multi-Unit Charger can only be repaired by a qualified service technician
authorized by Motorola. Any violation of this policy will void the unit warranty. If your
charger is defective, please contact your Motorola Partner where the unit was
purchased.
Please call and confirm your return before sending the unit to the depot for service.
Tel: 1-800-422-4210 (US & Canada)
Motorola Solutions de México, S.A.
LED Status Comments
Bosques de Alisos 125
Col. Bosques de las Lomas CP 05120
México D.F.
México.
Tel: (5) 257-6700
Motorola Solutions de Colombia, Ltda.
Avenida Carrera 45 No. 108 - 27
Bogota - Colombia.
Tel: (571) 602-2111
Battery empty
For technicial support, visit:
http://www.motorolasolutions.com/RVseries
Battery low
Battery medium
Battery high
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are
trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are
used under license. All other trademarks are the property of their respective owners.
© 2013 Motorola Solutions, Inc. All rights reserved.
To reduce risk of injury, charge only the rechargeable Motorola
authorized batteries listed in Table 1. Other batteries may
explode, causing personal injury and damage. Use of
accessories not recommended by Motorola may result in risk of
C a u t i o n
fire, electric shock, or injury.
Table 1: Motorola Authorized Battery
Kit Number Description
PMNN4434_ Standard Li-Ion Battery
PMNN4453_ High Capacity Li-Ion Battery
plus Holster" and stand alone battery.
Plug the charger end of the power supply cord into the power receptacle
located at the bottom of the charger.
Plug the wall receptacle end of the power supply cord into appropriate AC
outlet. A successful power-up sequence in indicated by a SINGLE FLASH
GREEN on the charger indicator.
Insert a battery or a radio with battery (radio turned off), into the charger's
pocket by:
a. Aligning the groove on each side of the battery with the corresponding
raised rail on each side of the charger pocket.
b. Pressing the battery toward the rear of the pocket.
used.
Check if the radio with battery, or the battery alone, is inserted correctly
(refer to step 3 of "Charging Procedure").
Make sure the power cord is securely plugged into the charger and an
appropriate AC outlet and that there is power to the outlet.
Confirm that the battery used with the radio is listed in Table 1.
