Wireless Access Point
User Guide
PoE
Switch

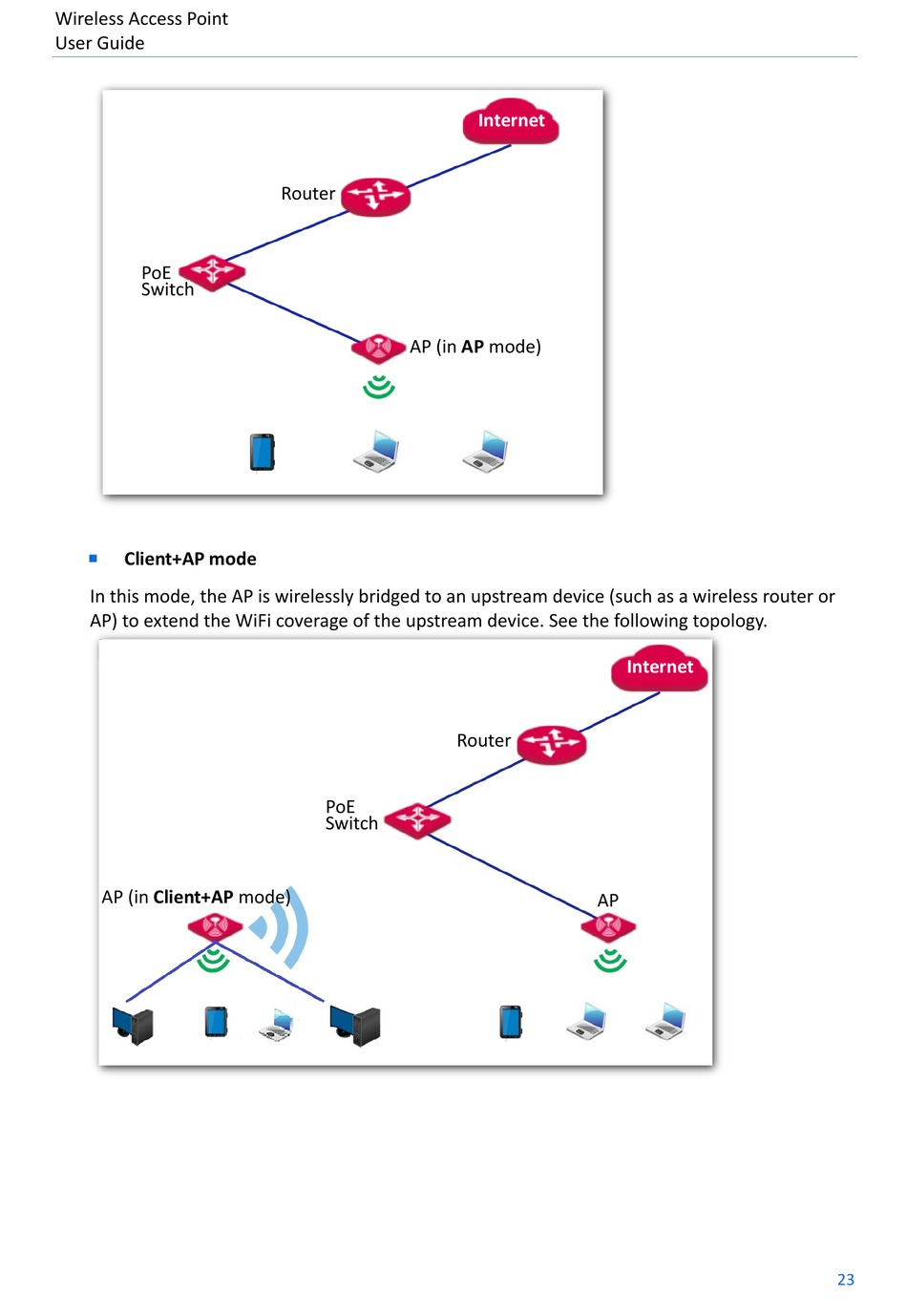

Client+AP mode

In this mode, the AP is wirelessly bridged to an upstream device (such as a wireless router or
AP) to extend the WiFi coverage of the upstream device. See the following topology.
AP (in Client+AP mode)
Router
AP (in AP mode)
PoE
Switch
Internet
Internet
Router
AP
23
